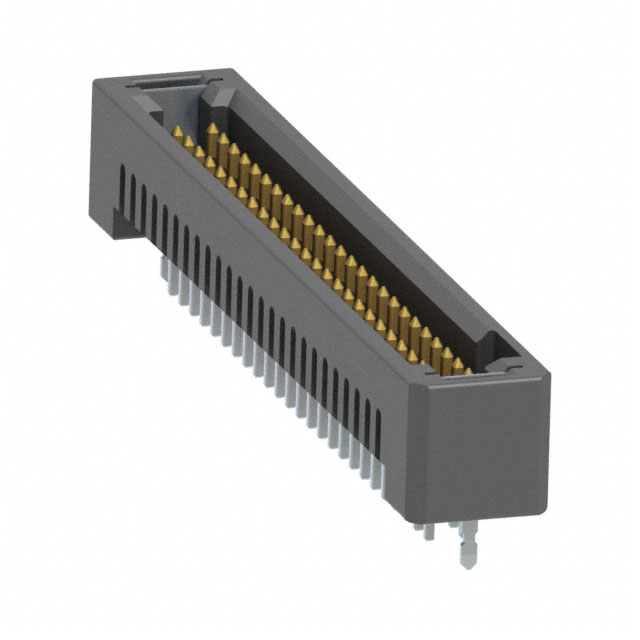

TFM-125-01-L-D-WT Samtec Inc.
Hersteller: Samtec Inc.Description: CONN HEADER VERT 50POS 1.27MM
Features: Solder Retention
Packaging: Tube
Connector Type: Header
Voltage Rating: 275VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Through Hole
Number of Positions: 50
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.078" (1.98mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.131" (3.33mm)
auf Bestellung 9936 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 2+ | 9.31 EUR |
| 10+ | 8.72 EUR |
| 25+ | 8.12 EUR |
| 50+ | 7.60 EUR |
| 100+ | 6.96 EUR |
| 500+ | 6.36 EUR |
| 1000+ | 5.78 EUR |
| 2000+ | 5.37 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TFM-125-01-L-D-WT Samtec Inc.
Description: CONN HEADER VERT 50POS 1.27MM, Features: Solder Retention, Packaging: Tube, Connector Type: Header, Voltage Rating: 275VAC, Current Rating (Amps): 3.2A per Contact, Mounting Type: Through Hole, Number of Positions: 50, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.078" (1.98mm), Insulation Height: 0.220" (5.60mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.131" (3.33mm).
Weitere Produktangebote TFM-125-01-L-D-WT nach Preis ab 14.12 EUR bis 21.10 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TFM-125-01-L-D-WT | Hersteller : Samtec |
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips, .050 Pitch |
auf Bestellung 29 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
TFM-125-01-L-D-WT | Hersteller : SAMTEC |
Description: SAMTEC - TFM-125-01-L-D-WT - Stiftleiste, Board-to-Board, Wire-to-Board, 1.27 mm, 2 Reihe(n), 50 Kontakt(e), Durchsteckmontage tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze usEccn: EAR99 Steckverbinderkragen: Mit Kragen Anzahl der Kontakte: 50Kontakt(e) euEccn: NLR Steckverbindersysteme: Board-to-Board, Wire-to-Board Steckverbindertyp: PCB Header Produktpalette: Tiger Eye TFM productTraceability: No Kontaktanschluss: Durchsteckmontage Anzahl der Reihen: 2Reihe(n) Rastermaß: 1.27mm SVHC: No SVHC (15-Jan-2018) |
auf Bestellung 14 Stücke: Lieferzeit 14-21 Tag (e) |
