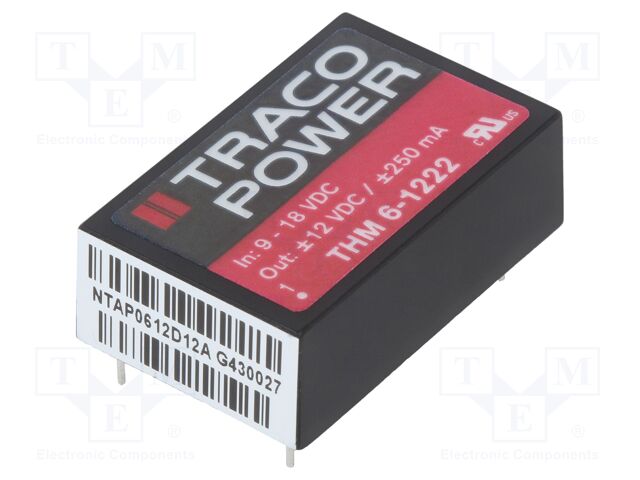

THM 6-1222 TRACO POWER
Hersteller: TRACO POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 6W; Uin: 9÷18VDC; Uout: 12VDC; Uout2: -12VDC; DIP24
Power: 6W
Output voltage: 12V DC
Body dimensions: 31.8x20.3x10.2mm
Protection: anti-overload OPP; anti-overvoltage OVP; short circuit protection SCP
Operating temperature: -40...90°C
Manufacturer series: THM 6
Output current 2: 0.25A
Output current: 0.25A
Number of outputs: 2
Input voltage: 9...18V DC
Efficiency: 89%
Insulation voltage: 5kV
Switching frequency: 250kHz
Type of converter: DC/DC
Case: DIP24
Mounting: PCB
Application: medical applications
Output voltage 2: -12V DC
Produktrezensionen
Produktbewertung abgeben
Technische Details THM 6-1222 TRACO POWER
Category: DC/DC Converters, Description: Converter: DC/DC; 6W; Uin: 9÷18VDC; Uout: 12VDC; Uout2: -12VDC; DIP24, Power: 6W, Output voltage: 12V DC, Body dimensions: 31.8x20.3x10.2mm, Protection: anti-overload OPP; anti-overvoltage OVP; short circuit protection SCP, Operating temperature: -40...90°C, Manufacturer series: THM 6, Output current 2: 0.25A, Output current: 0.25A, Number of outputs: 2, Input voltage: 9...18V DC, Efficiency: 89%, Insulation voltage: 5kV, Switching frequency: 250kHz, Type of converter: DC/DC, Case: DIP24, Mounting: PCB, Application: medical applications, Output voltage 2: -12V DC.
Weitere Produktangebote THM 6-1222 nach Preis ab 79.72 EUR bis 81 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||
|---|---|---|---|---|---|---|---|---|---|
 |
THM 6-1222 | Traco Power |
Description: DC DC CONVERTER +/-12V 6W Voltage - Isolation: 5 kV Number of Outputs: 2 Power (Watts): 6 W Part Status: Active Voltage - Output 2: -12V Voltage - Output 1: 12V Voltage - Input (Min): 9V Current - Output (Max): 250mA, 250mA Efficiency: 89% Voltage - Input (Max): 18V Applications: Medical Operating Temperature: -40°C ~ 88°C Type: Isolated Module Mounting Type: Through Hole Size / Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) Package / Case: 24-DIP Module, 6 Leads Features: OCP, OVP, SCP Packaging: Tube |
auf Bestellung 18 Stücke: Lieferzeit 10-14 Tag (e) |
|
| THM 6-1222 |
|
Hersteller: Traco Power
Description: DC DC CONVERTER +/-12V 6W
Voltage - Isolation: 5 kV
Number of Outputs: 2
Power (Watts): 6 W
Part Status: Active
Voltage - Output 2: -12V
Voltage - Output 1: 12V
Voltage - Input (Min): 9V
Current - Output (Max): 250mA, 250mA
Efficiency: 89%
Voltage - Input (Max): 18V
Applications: Medical
Operating Temperature: -40°C ~ 88°C
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Package / Case: 24-DIP Module, 6 Leads
Features: OCP, OVP, SCP
Packaging: Tube
Description: DC DC CONVERTER +/-12V 6W
Voltage - Isolation: 5 kV
Number of Outputs: 2
Power (Watts): 6 W
Part Status: Active
Voltage - Output 2: -12V
Voltage - Output 1: 12V
Voltage - Input (Min): 9V
Current - Output (Max): 250mA, 250mA
Efficiency: 89%
Voltage - Input (Max): 18V
Applications: Medical
Operating Temperature: -40°C ~ 88°C
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Package / Case: 24-DIP Module, 6 Leads
Features: OCP, OVP, SCP
Packaging: Tube
auf Bestellung 18 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 81 EUR |
| 10+ | 79.72 EUR |
