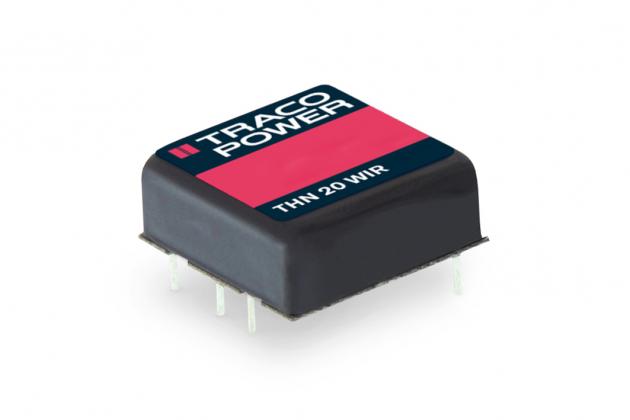

THN 20-2423WIR TRACO Power
Hersteller: TRACO Power
Isolated DC/DC Converters - Through Hole 9-36Vin +/-15V 667mA 20W 1x1 Iso Railway
| Anzahl | Privatkunde |
|---|---|
| 1+ | 111.67 EUR |
| 10+ | 105.54 EUR |
| 20+ | 97.16 EUR |
| 50+ | 90.45 EUR |
| 100+ | 89.06 EUR |
| 200+ | 88.24 EUR |
Artikel auf Bestellung
Nicht an unserem Lager — wir beziehen ihn nach Ihrer Bestellung vom Lieferantenlager.
Lieferzeit:
10-14 Tag (e)
Produktrezensionen
Produktbewertung abgeben
Technische Details THN 20-2423WIR TRACO Power
Description: 20 WATT DC/DC CONVERTER, RAILWAY, Features: Adjustable Output, Remote On/Off, Packaging: Tube, Package / Case: 6-DIP Module, Size / Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm), Mounting Type: Through Hole, Type: Isolated Module, Operating Temperature: -40°C ~ 85°C (With Derating), Applications: ITE (Commercial), Railway, Voltage - Input (Max): 36V, Approval Agency: CB, cURus, Efficiency: 90%, Current - Output (Max): 667mA, 667mA, Voltage - Input (Min): 9V, Voltage - Output 1: 15V, Voltage - Output 2: -15V, Power (Watts): 20 W, Number of Outputs: 2, Voltage - Isolation: 2.25 kV, Standard Number: 50155; 62368-1.
Weitere Produktangebote THN 20-2423WIR nach Preis ab 104.66 EUR bis 120.78 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
THN 20-2423WIR | Traco Power |
Description: 20 WATT DC/DC CONVERTER, RAILWAY Features: Adjustable Output, Remote On/Off Packaging: Tube Package / Case: 6-DIP Module Size / Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 85°C (With Derating) Applications: ITE (Commercial), Railway Voltage - Input (Max): 36V Approval Agency: CB, cURus Efficiency: 90% Current - Output (Max): 667mA, 667mA Voltage - Input (Min): 9V Voltage - Output 1: 15V Voltage - Output 2: -15V Power (Watts): 20 W Number of Outputs: 2 Voltage - Isolation: 2.25 kV Standard Number: 50155; 62368-1 |
auf Bestellung 57 Stücke: Lieferzeit 10-14 Tag (e) |
|
| THN 20-2423WIR |
|
Hersteller: Traco Power
Description: 20 WATT DC/DC CONVERTER, RAILWAY
Features: Adjustable Output, Remote On/Off
Packaging: Tube
Package / Case: 6-DIP Module
Size / Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: ITE (Commercial), Railway
Voltage - Input (Max): 36V
Approval Agency: CB, cURus
Efficiency: 90%
Current - Output (Max): 667mA, 667mA
Voltage - Input (Min): 9V
Voltage - Output 1: 15V
Voltage - Output 2: -15V
Power (Watts): 20 W
Number of Outputs: 2
Voltage - Isolation: 2.25 kV
Standard Number: 50155; 62368-1
Description: 20 WATT DC/DC CONVERTER, RAILWAY
Features: Adjustable Output, Remote On/Off
Packaging: Tube
Package / Case: 6-DIP Module
Size / Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: ITE (Commercial), Railway
Voltage - Input (Max): 36V
Approval Agency: CB, cURus
Efficiency: 90%
Current - Output (Max): 667mA, 667mA
Voltage - Input (Min): 9V
Voltage - Output 1: 15V
Voltage - Output 2: -15V
Power (Watts): 20 W
Number of Outputs: 2
Voltage - Isolation: 2.25 kV
Standard Number: 50155; 62368-1
auf Bestellung 57 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 120.78 EUR |
| 10+ | 111.02 EUR |
| 25+ | 107.35 EUR |
| 50+ | 104.66 EUR |
