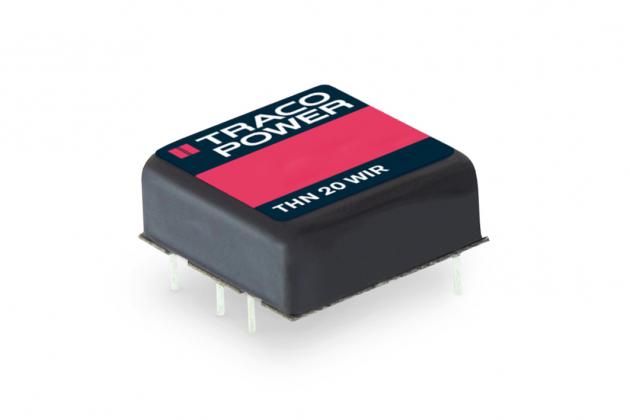

THN 20-4813WIR TRACO Power
Hersteller: TRACO Power
Isolated DC/DC Converters - Through Hole 18-75Vin 15V 1330mA 20W 1x1 Iso Railway
| Anzahl | Preis |
|---|---|
| 1+ | 96.64 EUR |
| 10+ | 89.94 EUR |
| 20+ | 86.96 EUR |
| 50+ | 84.78 EUR |
| 100+ | 82.4 EUR |
| 200+ | 75.4 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details THN 20-4813WIR TRACO Power
Description: 20 WATT DC/DC CONVERTER, RAILWAY, Standard Number: 50155; 62368-1, Voltage - Isolation: 2.25 kV, Number of Outputs: 1, Power (Watts): 20 W, Part Status: Active, Voltage - Output 1: 15V, Voltage - Input (Min): 18V, Current - Output (Max): 1.33A, Efficiency: 90%, Approval Agency: CB, cURus, Voltage - Input (Max): 75V, Applications: ITE (Commercial), Railway, Operating Temperature: -40°C ~ 85°C (With Derating), Type: Isolated Module, Mounting Type: Through Hole, Size / Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm), Package / Case: 6-DIP Module, Features: Adjustable Output, Remote On/Off, Packaging: Tube.
Weitere Produktangebote THN 20-4813WIR nach Preis ab 90.15 EUR bis 98.08 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||
|---|---|---|---|---|---|---|---|---|---|
 |
THN 20-4813WIR | Traco Power |
Description: 20 WATT DC/DC CONVERTER, RAILWAY Standard Number: 50155; 62368-1 Voltage - Isolation: 2.25 kV Number of Outputs: 1 Power (Watts): 20 W Part Status: Active Voltage - Output 1: 15V Voltage - Input (Min): 18V Current - Output (Max): 1.33A Efficiency: 90% Approval Agency: CB, cURus Voltage - Input (Max): 75V Applications: ITE (Commercial), Railway Operating Temperature: -40°C ~ 85°C (With Derating) Type: Isolated Module Mounting Type: Through Hole Size / Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) Package / Case: 6-DIP Module Features: Adjustable Output, Remote On/Off Packaging: Tube |
auf Bestellung 18 Stücke: Lieferzeit 10-14 Tag (e) |
|
| THN 20-4813WIR |
|
Hersteller: Traco Power
Description: 20 WATT DC/DC CONVERTER, RAILWAY
Standard Number: 50155; 62368-1
Voltage - Isolation: 2.25 kV
Number of Outputs: 1
Power (Watts): 20 W
Part Status: Active
Voltage - Output 1: 15V
Voltage - Input (Min): 18V
Current - Output (Max): 1.33A
Efficiency: 90%
Approval Agency: CB, cURus
Voltage - Input (Max): 75V
Applications: ITE (Commercial), Railway
Operating Temperature: -40°C ~ 85°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Package / Case: 6-DIP Module
Features: Adjustable Output, Remote On/Off
Packaging: Tube
Description: 20 WATT DC/DC CONVERTER, RAILWAY
Standard Number: 50155; 62368-1
Voltage - Isolation: 2.25 kV
Number of Outputs: 1
Power (Watts): 20 W
Part Status: Active
Voltage - Output 1: 15V
Voltage - Input (Min): 18V
Current - Output (Max): 1.33A
Efficiency: 90%
Approval Agency: CB, cURus
Voltage - Input (Max): 75V
Applications: ITE (Commercial), Railway
Operating Temperature: -40°C ~ 85°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Package / Case: 6-DIP Module
Features: Adjustable Output, Remote On/Off
Packaging: Tube
auf Bestellung 18 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 98.08 EUR |
| 10+ | 90.15 EUR |
