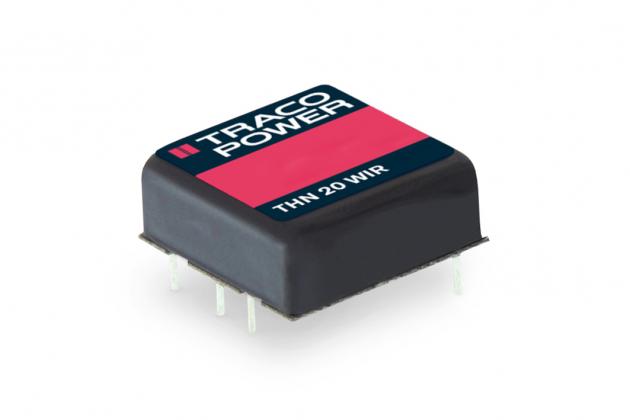

THN 20-4823WIR Traco Power
Hersteller: Traco Power
DC/DC, 20W, Вход: 18-75 VDC, Выход: ±15VDC/±0.667A, изоляция 3000VDC, корпус 1`` x 1``, -40...+85 C DC-DC-перетворювачі на друковану плату в корпусі DIP потужністю від 15-60 Вт
Anzahl je Verpackung: 10 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details THN 20-4823WIR Traco Power
Description: 20 WATT DC/DC CONVERTER, RAILWAY, Features: Adjustable Output, Remote On/Off, Packaging: Tube, Package / Case: 6-DIP Module, Size / Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm), Mounting Type: Through Hole, Type: Isolated Module, Operating Temperature: -40°C ~ 85°C (With Derating), Applications: ITE (Commercial), Railway, Voltage - Input (Max): 75V, Approval Agency: CB, cURus, Efficiency: 90%, Current - Output (Max): 667mA, 667mA, Voltage - Input (Min): 18V, Voltage - Output 1: 15V, Voltage - Output 2: -15V, Part Status: Active, Power (Watts): 20 W, Number of Outputs: 2, Voltage - Isolation: 2.25 kV, Standard Number: 50155; 62368-1.
Weitere Produktangebote THN 20-4823WIR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
|---|---|---|---|---|---|
 |
THN 20-4823WIR | Traco Power |
Description: 20 WATT DC/DC CONVERTER, RAILWAY Features: Adjustable Output, Remote On/Off Packaging: Tube Package / Case: 6-DIP Module Size / Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 85°C (With Derating) Applications: ITE (Commercial), Railway Voltage - Input (Max): 75V Approval Agency: CB, cURus Efficiency: 90% Current - Output (Max): 667mA, 667mA Voltage - Input (Min): 18V Voltage - Output 1: 15V Voltage - Output 2: -15V Part Status: Active Power (Watts): 20 W Number of Outputs: 2 Voltage - Isolation: 2.25 kV Standard Number: 50155; 62368-1 |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 10 Stücke Im Einkaufswagen Stück im Wert von UAH |
 |
THN 20-4823WIR | TRACO Power |
Isolated DC/DC Converters - Through Hole 18-75V+/-15V 667mA 20W 1x1 Iso Railway |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| THN 20-4823WIR |
|
Hersteller: Traco Power
Description: 20 WATT DC/DC CONVERTER, RAILWAY
Features: Adjustable Output, Remote On/Off
Packaging: Tube
Package / Case: 6-DIP Module
Size / Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: ITE (Commercial), Railway
Voltage - Input (Max): 75V
Approval Agency: CB, cURus
Efficiency: 90%
Current - Output (Max): 667mA, 667mA
Voltage - Input (Min): 18V
Voltage - Output 1: 15V
Voltage - Output 2: -15V
Part Status: Active
Power (Watts): 20 W
Number of Outputs: 2
Voltage - Isolation: 2.25 kV
Standard Number: 50155; 62368-1
Description: 20 WATT DC/DC CONVERTER, RAILWAY
Features: Adjustable Output, Remote On/Off
Packaging: Tube
Package / Case: 6-DIP Module
Size / Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: ITE (Commercial), Railway
Voltage - Input (Max): 75V
Approval Agency: CB, cURus
Efficiency: 90%
Current - Output (Max): 667mA, 667mA
Voltage - Input (Min): 18V
Voltage - Output 1: 15V
Voltage - Output 2: -15V
Part Status: Active
Power (Watts): 20 W
Number of Outputs: 2
Voltage - Isolation: 2.25 kV
Standard Number: 50155; 62368-1
Produkt ist nicht verfügbar
Mindestbestellmenge: 10 Stücke
Im Einkaufswagen
Stück im Wert von UAH
| THN 20-4823WIR |
|
Hersteller: TRACO Power
Isolated DC/DC Converters - Through Hole 18-75V+/-15V 667mA 20W 1x1 Iso Railway
Isolated DC/DC Converters - Through Hole 18-75V+/-15V 667mA 20W 1x1 Iso Railway
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
