TJ0201020000G Amphenol Anytek

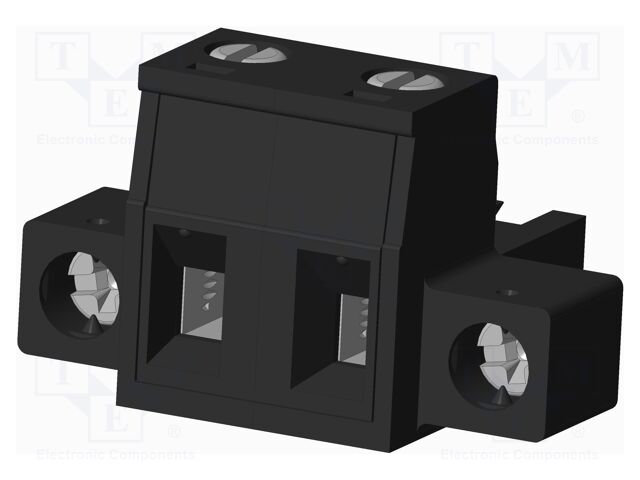

Hersteller: Amphenol AnytekDescription: TERM BLOCK PLUG 2POS STR 7.62MM
Features: Mating Flange, Retention Latches (Non-Wire Side)
Packaging: Bulk
Color: Black
Mounting Type: Free Hanging (In-Line)
Number of Positions: 2
Pitch: 0.300" (7.62mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screw
Number of Levels: 1
Wire Gauge or Range - AWG: 12-24 AWG
Positions Per Level: 2
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Current - UL: 20 A
Voltage - UL: 300 V
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details TJ0201020000G Amphenol Anytek
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 300V; PA66, Spatial orientation: straight, Colour: black, Contact material: phosphor bronze, Body material: PA66, Electrical mounting: screw terminal, Kind of connector: female, Mechanical mounting: for cable, Contact plating: tinned, Type of connector: pluggable terminal block, Connector: plug, Flammability rating: UL94V-0, Operating temperature: -40...115°C, Contacts pitch: 7.62mm, Number of pins: 2, Current rating: 12A, Wire size: 24AWG...12AWG, Rated voltage: 300V.
Weitere Produktangebote TJ0201020000G
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
| TJ0201020000G | Hersteller : Amphenol Anytek |
Pluggable Terminal Blocks 762 TB PLUGGABLE PLUG WF |
Produkt ist nicht verfügbar |
||
 |
TJ0201020000G | Hersteller : AMPHENOL ANYTEK |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 12A; 300V; PA66 Spatial orientation: straight Colour: black Contact material: phosphor bronze Body material: PA66 Electrical mounting: screw terminal Kind of connector: female Mechanical mounting: for cable Contact plating: tinned Type of connector: pluggable terminal block Connector: plug Flammability rating: UL94V-0 Operating temperature: -40...115°C Contacts pitch: 7.62mm Number of pins: 2 Current rating: 12A Wire size: 24AWG...12AWG Rated voltage: 300V |
Produkt ist nicht verfügbar |
