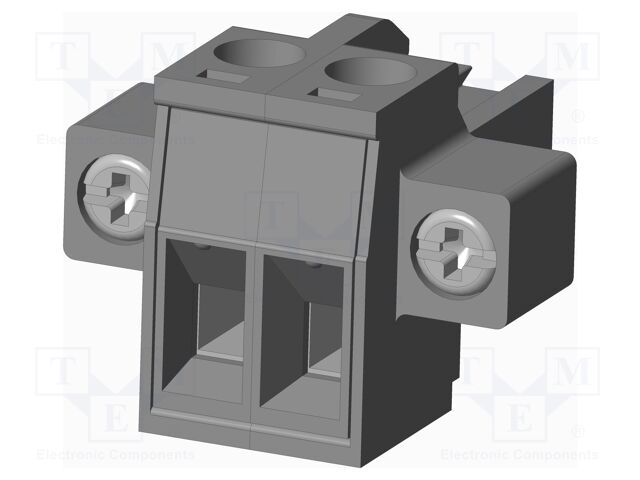

TJ0271870000G AMPHENOL ANYTEK
Hersteller: AMPHENOL ANYTEKCategory: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; grey
Connector: plug
Electrical mounting: screw terminal
Kind of connector: female
Mechanical mounting: for cable; for panel mounting
Contact plating: tinned
Type of connector: pluggable terminal block
Flammability rating: UL94V-0
Operating temperature: -40...115°C
Contacts pitch: 5mm
Number of pins: 2
Current rating: 12A
Wire size: 24AWG...12AWG
Rated voltage: 300V
Body material: PA66
Spatial orientation: straight
Colour: grey
Contact material: phosphor bronze
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details TJ0271870000G AMPHENOL ANYTEK
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 300V; grey, Connector: plug, Electrical mounting: screw terminal, Kind of connector: female, Mechanical mounting: for cable; for panel mounting, Contact plating: tinned, Type of connector: pluggable terminal block, Flammability rating: UL94V-0, Operating temperature: -40...115°C, Contacts pitch: 5mm, Number of pins: 2, Current rating: 12A, Wire size: 24AWG...12AWG, Rated voltage: 300V, Body material: PA66, Spatial orientation: straight, Colour: grey, Contact material: phosphor bronze, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote TJ0271870000G
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
| TJ0271870000G | Hersteller : Amphenol Anytek |
Description: TERM BLOCK PLUG 2POS STR 5MM Packaging: Bulk Features: Mating Flange, Retention Latches (Non-Wire Side) Color: Gray Mounting Type: Free Hanging (In-Line) Number of Positions: 2 Pitch: 0.197" (5.00mm) Type: Plug, Female Sockets Operating Temperature: -40°C ~ 115°C Termination Style: Screw Number of Levels: 1 Wire Gauge or Range - AWG: 12-24 AWG Positions Per Level: 2 Plug Wire Entry: 180° Contact Mating Finish: Tin Current - UL: 20 A Voltage - UL: 300 V |
Produkt ist nicht verfügbar |
||
| TJ0271870000G | Hersteller : Amphenol Anytek |
Pluggable Terminal Blocks 500 TB PLU PLU WF UP |
Produkt ist nicht verfügbar |
||
|
|
TJ0271870000G | Hersteller : AMPHENOL ANYTEK |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 12A; 300V; grey Connector: plug Electrical mounting: screw terminal Kind of connector: female Mechanical mounting: for cable; for panel mounting Contact plating: tinned Type of connector: pluggable terminal block Flammability rating: UL94V-0 Operating temperature: -40...115°C Contacts pitch: 5mm Number of pins: 2 Current rating: 12A Wire size: 24AWG...12AWG Rated voltage: 300V Body material: PA66 Spatial orientation: straight Colour: grey Contact material: phosphor bronze |
Produkt ist nicht verfügbar |
