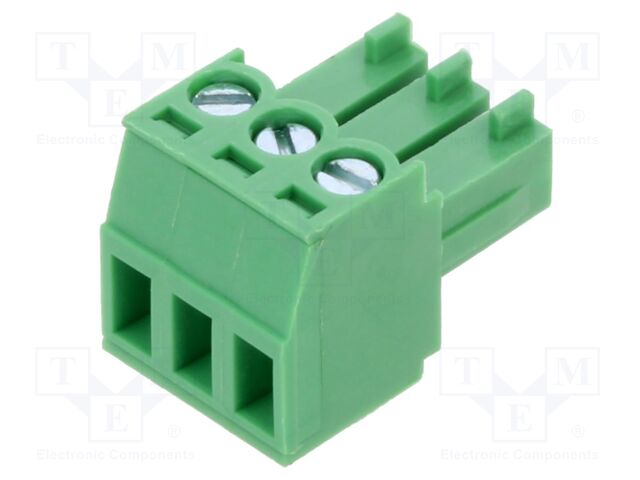

TJ0311530000G AMPHENOL ANYTEK
Hersteller: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 10A; 300V; 1x3
Type of connector: pluggable terminal block
Connector: plug
Current rating: 10A
Rated voltage: 0.3kV
Number of pins: 3
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: screw terminal
Contact plating: tinned
Colour: green
Flammability rating: UL94V-0
Body material: thermoplastic
Connector pinout layout: 1x3
Contacts pitch: 3.5mm
Operating temperature: -40...115°C
Locking system: friction lock
Kind of connector: female
Wire cross-section: 1.5mm2
Number of ways: 3
Number of terminals: 3
Wire size: 28AWG...16AWG
| Anzahl | Privatkunde |
|---|---|
| 55+ | 1.55 EUR |
| 76+ | 1.12 EUR |
| 88+ | 0.98 EUR |
| 98+ | 0.88 EUR |
| 107+ | 0.8 EUR |
| 250+ | 0.71 EUR |
| 450+ | 0.68 EUR |
| 900+ | 0.65 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TJ0311530000G AMPHENOL ANYTEK
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 10A; 300V; 1x3, Type of connector: pluggable terminal block, Connector: plug, Current rating: 10A, Rated voltage: 0.3kV, Number of pins: 3, Spatial orientation: straight, Mechanical mounting: for cable, Electrical mounting: screw terminal, Contact plating: tinned, Colour: green, Flammability rating: UL94V-0, Body material: thermoplastic, Connector pinout layout: 1x3, Contacts pitch: 3.5mm, Operating temperature: -40...115°C, Locking system: friction lock, Kind of connector: female, Wire cross-section: 1.5mm2, Number of ways: 3, Number of terminals: 3, Wire size: 28AWG...16AWG.
Weitere Produktangebote TJ0311530000G nach Preis ab 0.8 EUR bis 2.26 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TJ0311530000G | Amphenol Anytek |
Description: TERM BLOCK PLUG 3POS 3.50MM Packaging: Tray Color: Green Mounting Type: Free Hanging (In-Line) Number of Positions: 3 Pitch: 0.138" (3.50mm) Type: Plug, Female Sockets Operating Temperature: -40°C ~ 115°C Termination Style: Screw - Rising Cage Clamp Number of Levels: 1 Wire Gauge or Range - AWG: 16-26 AWG Wire Gauge or Range - mm²: 0.5-1.5mm² Positions Per Level: 3 Plug Wire Entry: 180° Contact Mating Finish: Tin Part Status: Active Current - UL: 10 A Voltage - UL: 300 V |
auf Bestellung 12295 Stücke: Lieferzeit 10-14 Tag (e) |
|
| TJ0311530000G |
|
Hersteller: Amphenol Anytek
Description: TERM BLOCK PLUG 3POS 3.50MM
Packaging: Tray
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 3
Pitch: 0.138" (3.50mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screw - Rising Cage Clamp
Number of Levels: 1
Wire Gauge or Range - AWG: 16-26 AWG
Wire Gauge or Range - mm²: 0.5-1.5mm²
Positions Per Level: 3
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Part Status: Active
Current - UL: 10 A
Voltage - UL: 300 V
Description: TERM BLOCK PLUG 3POS 3.50MM
Packaging: Tray
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 3
Pitch: 0.138" (3.50mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screw - Rising Cage Clamp
Number of Levels: 1
Wire Gauge or Range - AWG: 16-26 AWG
Wire Gauge or Range - mm²: 0.5-1.5mm²
Positions Per Level: 3
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Part Status: Active
Current - UL: 10 A
Voltage - UL: 300 V
auf Bestellung 12295 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 10+ | 2.26 EUR |
| 13+ | 1.64 EUR |
| 25+ | 1.43 EUR |
| 50+ | 1.3 EUR |
| 100+ | 1.18 EUR |
| 250+ | 1.05 EUR |
| 500+ | 0.96 EUR |
| 2700+ | 0.83 EUR |
| 5400+ | 0.8 EUR |
