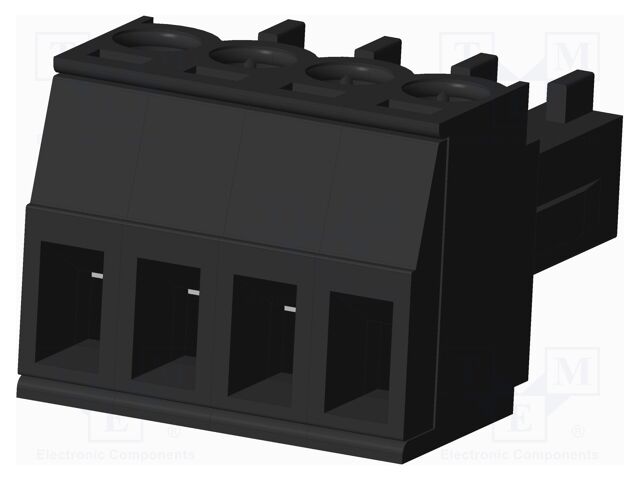

TJ0411030000G AMPHENOL ANYTEK
Hersteller: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 10A; 300V; PA66
Type of connector: pluggable terminal block
Connector: plug
Current rating: 10A
Rated voltage: 0.3kV
Number of pins: 4
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: screw terminal
Contact material: phosphor bronze
Contact plating: tinned
Colour: black
Flammability rating: UL94V-0
Body material: PA66
Contacts pitch: 3.5mm
Operating temperature: -40...115°C
Kind of connector: female
Wire size: 28AWG...16AWG
| Anzahl | Privatkunde |
|---|---|
| 51+ | 1.69 EUR |
| 70+ | 1.23 EUR |
| 81+ | 1.06 EUR |
| 90+ | 0.95 EUR |
| 100+ | 0.87 EUR |
| 250+ | 0.79 EUR |
| 320+ | 0.76 EUR |
| 640+ | 0.73 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TJ0411030000G AMPHENOL ANYTEK
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 10A; 300V; PA66, Type of connector: pluggable terminal block, Connector: plug, Current rating: 10A, Rated voltage: 0.3kV, Number of pins: 4, Spatial orientation: straight, Mechanical mounting: for cable, Electrical mounting: screw terminal, Contact material: phosphor bronze, Contact plating: tinned, Colour: black, Flammability rating: UL94V-0, Body material: PA66, Contacts pitch: 3.5mm, Operating temperature: -40...115°C, Kind of connector: female, Wire size: 28AWG...16AWG.
Weitere Produktangebote TJ0411030000G nach Preis ab 0.94 EUR bis 2.48 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TJ0411030000G | Amphenol Anytek |
Description: TERM BLOCK PLUG 4POS 3.50MM Packaging: Bulk Color: Black Mounting Type: Free Hanging (In-Line) Number of Positions: 4 Pitch: 0.138" (3.50mm) Type: Plug, Female Sockets Operating Temperature: -40°C ~ 115°C Termination Style: Screw Current - IEC: 10.5A Number of Levels: 1 Wire Gauge or Range - AWG: 16-28 AWG Wire Gauge or Range - mm²: 1.5mm² Positions Per Level: 4 Plug Wire Entry: 180° Contact Mating Finish: Tin Part Status: Active Current - UL: 10 A Voltage - IEC: 300 V Voltage - UL: 300 V |
auf Bestellung 4882 Stücke: Lieferzeit 10-14 Tag (e) |
|
| TJ0411030000G |
|
Hersteller: Amphenol Anytek
Description: TERM BLOCK PLUG 4POS 3.50MM
Packaging: Bulk
Color: Black
Mounting Type: Free Hanging (In-Line)
Number of Positions: 4
Pitch: 0.138" (3.50mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screw
Current - IEC: 10.5A
Number of Levels: 1
Wire Gauge or Range - AWG: 16-28 AWG
Wire Gauge or Range - mm²: 1.5mm²
Positions Per Level: 4
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Part Status: Active
Current - UL: 10 A
Voltage - IEC: 300 V
Voltage - UL: 300 V
Description: TERM BLOCK PLUG 4POS 3.50MM
Packaging: Bulk
Color: Black
Mounting Type: Free Hanging (In-Line)
Number of Positions: 4
Pitch: 0.138" (3.50mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screw
Current - IEC: 10.5A
Number of Levels: 1
Wire Gauge or Range - AWG: 16-28 AWG
Wire Gauge or Range - mm²: 1.5mm²
Positions Per Level: 4
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Part Status: Active
Current - UL: 10 A
Voltage - IEC: 300 V
Voltage - UL: 300 V
auf Bestellung 4882 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 9+ | 2.48 EUR |
| 12+ | 1.8 EUR |
| 25+ | 1.56 EUR |
| 50+ | 1.42 EUR |
| 100+ | 1.29 EUR |
| 250+ | 1.14 EUR |
| 500+ | 1.06 EUR |
| 2100+ | 0.94 EUR |
