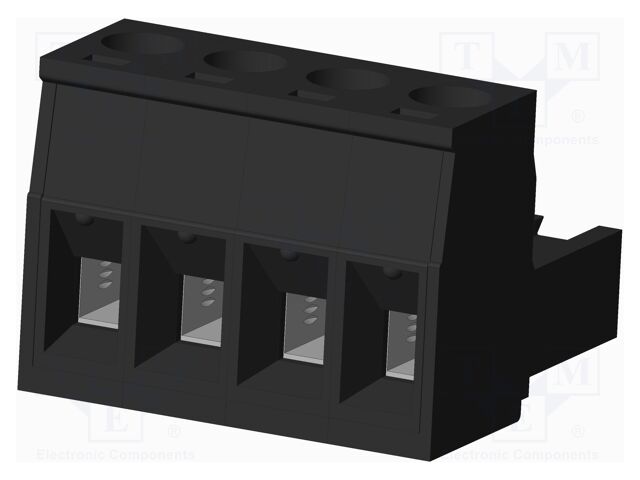

TJ045103000FY Amphenol Anytek
Hersteller: Amphenol Anytek
Description: TERM BLOCK PLUG 4POS STR 5.08MM
Features: Retention Latches (Non-Wire Side)
Packaging: Bulk
Color: Black
Mounting Type: Free Hanging (In-Line)
Number of Positions: 4
Pitch: 0.200" (5.08mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screw - Rising Cage Clamp
Number of Levels: 1
Wire Gauge or Range - AWG: 12-24 AWG
Wire Gauge or Range - mm²: 1-2.5mm²
Positions Per Level: 4
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Part Status: Active
Current - UL: 12 A
Voltage - UL: 300 V
Produktrezensionen
Produktbewertung abgeben
Technische Details TJ045103000FY Amphenol Anytek
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 300V; PA66, Contact plating: tinned, Spatial orientation: straight, Wire size: 24AWG...12AWG, Rated voltage: 0.3kV, Contact material: phosphor bronze, Flammability rating: UL94V-0, Contacts pitch: 5.08mm, Number of pins: 4, Current rating: 12A, Colour: black, Operating temperature: -40...115°C, Mechanical mounting: for cable, Body material: PA66, Electrical mounting: screw terminal, Type of connector: pluggable terminal block, Kind of connector: female, Connector: plug.
Weitere Produktangebote TJ045103000FY
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
| TJ045103000FY | Amphenol Anytek |
Pluggable Terminal Blocks PLUGABLE PLUG-SIGNAL |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 3000 Stücke Im Einkaufswagen Stück im Wert von UAH | |
 |
TJ045103000FY | AMPHENOL ANYTEK |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 12A; 300V; PA66 Contact plating: tinned Spatial orientation: straight Wire size: 24AWG...12AWG Rated voltage: 0.3kV Contact material: phosphor bronze Flammability rating: UL94V-0 Contacts pitch: 5.08mm Number of pins: 4 Current rating: 12A Colour: black Operating temperature: -40...115°C Mechanical mounting: for cable Body material: PA66 Electrical mounting: screw terminal Type of connector: pluggable terminal block Kind of connector: female Connector: plug |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 3000 Stücke Im Einkaufswagen Stück im Wert von UAH |
| TJ045103000FY |
|
Hersteller: Amphenol Anytek
Pluggable Terminal Blocks PLUGABLE PLUG-SIGNAL
Pluggable Terminal Blocks PLUGABLE PLUG-SIGNAL
Produkt ist nicht verfügbar
Mindestbestellmenge: 3000 Stücke
Im Einkaufswagen
Stück im Wert von UAH
| TJ045103000FY |
|
Hersteller: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; PA66
Contact plating: tinned
Spatial orientation: straight
Wire size: 24AWG...12AWG
Rated voltage: 0.3kV
Contact material: phosphor bronze
Flammability rating: UL94V-0
Contacts pitch: 5.08mm
Number of pins: 4
Current rating: 12A
Colour: black
Operating temperature: -40...115°C
Mechanical mounting: for cable
Body material: PA66
Electrical mounting: screw terminal
Type of connector: pluggable terminal block
Kind of connector: female
Connector: plug
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; PA66
Contact plating: tinned
Spatial orientation: straight
Wire size: 24AWG...12AWG
Rated voltage: 0.3kV
Contact material: phosphor bronze
Flammability rating: UL94V-0
Contacts pitch: 5.08mm
Number of pins: 4
Current rating: 12A
Colour: black
Operating temperature: -40...115°C
Mechanical mounting: for cable
Body material: PA66
Electrical mounting: screw terminal
Type of connector: pluggable terminal block
Kind of connector: female
Connector: plug
Produkt ist nicht verfügbar
Mindestbestellmenge: 3000 Stücke
Im Einkaufswagen
Stück im Wert von UAH
