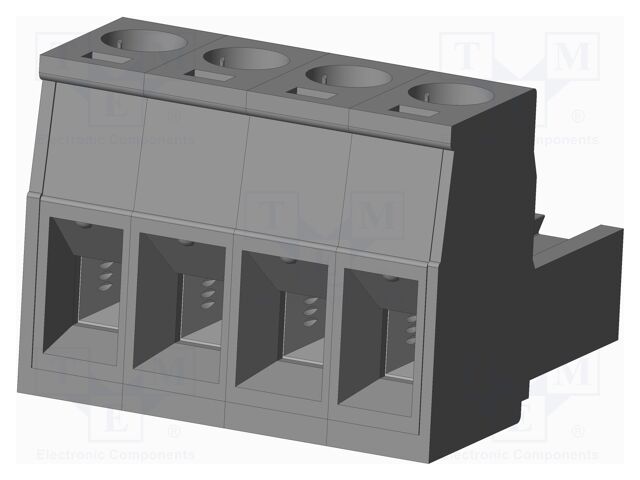

TJ0471800000G Amphenol Anytek
Hersteller: Amphenol Anytek
Description: TERM BLOCK PLUG 4POS STR 5MM
Voltage - UL: 300 V
Voltage - IEC: 300 V
Current - UL: 20 A
Part Status: Active
Contact Mating Finish: Tin
Plug Wire Entry: 180°
Positions Per Level: 4
Wire Gauge or Range - mm²: 0.34-2.5mm²
Wire Gauge or Range - AWG: 12-24 AWG
Number of Levels: 1
Current - IEC: 20A
Termination Style: Screw
Operating Temperature: -40°C ~ 115°C
Type: Plug, Female Sockets
Pitch: 0.197" (5.00mm)
Number of Positions: 4
Mounting Type: Free Hanging (In-Line)
Color: Gray
Features: Retention Latches (Non-Wire Side)
Packaging: Bulk
Produktrezensionen
Produktbewertung abgeben
Technische Details TJ0471800000G Amphenol Anytek
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 300V; grey, Contact material: phosphor bronze, Spatial orientation: straight, Colour: grey, Electrical mounting: screw terminal, Kind of connector: female, Mechanical mounting: for cable, Contact plating: tinned, Type of connector: pluggable terminal block, Body material: PA66, Connector: plug, Flammability rating: UL94V-0, Operating temperature: -40...115°C, Contacts pitch: 5mm, Current rating: 12A, Number of pins: 4, Wire size: 24AWG...12AWG, Rated voltage: 0.3kV.
Weitere Produktangebote TJ0471800000G
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
| TJ0471800000G | Amphenol Anytek |
Pluggable Terminal Blocks 500 TB PLU PLU DOWN/SIDE |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH | |
 |
TJ0471800000G | AMPHENOL ANYTEK |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 12A; 300V; grey Contact material: phosphor bronze Spatial orientation: straight Colour: grey Electrical mounting: screw terminal Kind of connector: female Mechanical mounting: for cable Contact plating: tinned Type of connector: pluggable terminal block Body material: PA66 Connector: plug Flammability rating: UL94V-0 Operating temperature: -40...115°C Contacts pitch: 5mm Current rating: 12A Number of pins: 4 Wire size: 24AWG...12AWG Rated voltage: 0.3kV |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| TJ0471800000G |
|
Hersteller: Amphenol Anytek
Pluggable Terminal Blocks 500 TB PLU PLU DOWN/SIDE
Pluggable Terminal Blocks 500 TB PLU PLU DOWN/SIDE
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
| TJ0471800000G |
|
Hersteller: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; grey
Contact material: phosphor bronze
Spatial orientation: straight
Colour: grey
Electrical mounting: screw terminal
Kind of connector: female
Mechanical mounting: for cable
Contact plating: tinned
Type of connector: pluggable terminal block
Body material: PA66
Connector: plug
Flammability rating: UL94V-0
Operating temperature: -40...115°C
Contacts pitch: 5mm
Current rating: 12A
Number of pins: 4
Wire size: 24AWG...12AWG
Rated voltage: 0.3kV
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; grey
Contact material: phosphor bronze
Spatial orientation: straight
Colour: grey
Electrical mounting: screw terminal
Kind of connector: female
Mechanical mounting: for cable
Contact plating: tinned
Type of connector: pluggable terminal block
Body material: PA66
Connector: plug
Flammability rating: UL94V-0
Operating temperature: -40...115°C
Contacts pitch: 5mm
Current rating: 12A
Number of pins: 4
Wire size: 24AWG...12AWG
Rated voltage: 0.3kV
