Produkte > AMPHENOL ANYTEK > TJ0751840000G
TJ0751840000G

TJ0751840000G AMPHENOL ANYTEK


pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC8949529B700D6&compId=TJ5.084.pdf?ci_sign=79bfd933fac09839b9547530a188dc422d886bf6 pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADCBA3BDF60DC&compId=TJ.pdf?ci_sign=9c656a9a94504bc7ffecf97a703e9135dad63f93 Hersteller: AMPHENOL ANYTEK
Category: Pluggable terminal blocks

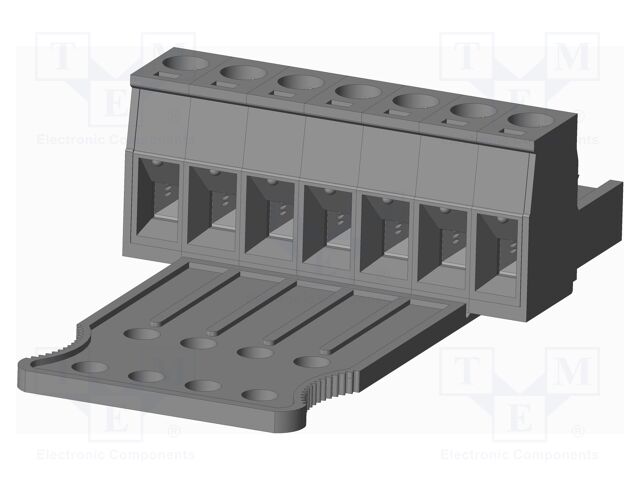

Description: Connector: pluggable terminal block; plug; female; 12A; 300V; grey
Rated voltage: 300V
Electrical mounting: screw terminal
Colour: grey
Flammability rating: UL94V-0
Body material: PA66
Spatial orientation: straight
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Contact plating: tinned
Operating temperature: -40...115°C
Current rating: 12A
Number of pins: 7
Contact material: phosphor bronze
Contacts pitch: 5.08mm
Wire size: 24AWG...12AWG
Mechanical mounting: for cable
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details TJ0751840000G AMPHENOL ANYTEK

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 300V; grey, Rated voltage: 300V, Electrical mounting: screw terminal, Colour: grey, Flammability rating: UL94V-0, Body material: PA66, Spatial orientation: straight, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Contact plating: tinned, Operating temperature: -40...115°C, Current rating: 12A, Number of pins: 7, Contact material: phosphor bronze, Contacts pitch: 5.08mm, Wire size: 24AWG...12AWG, Mechanical mounting: for cable, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote TJ0751840000G

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
TJ0751840000G Hersteller : Amphenol Anytek tjxx51x400j0g.pdf Description: TERM BLOCK PLUG 7POS STR 5.08MM
Features: Retention Latches (Non-Wire Side), Strain Relief
Packaging: Bulk
Color: Gray
Mounting Type: Free Hanging (In-Line)
Number of Positions: 7
Pitch: 0.200" (5.08mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screw
Current - IEC: 20A
Number of Levels: 1
Wire Gauge or Range - AWG: 12-24 AWG
Wire Gauge or Range - mm²: 0.34-2.5mm²
Positions Per Level: 7
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Current - UL: 20 A
Voltage - IEC: 300 V
Voltage - UL: 300 V
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
TJ0751840000G Hersteller : Amphenol Anytek S18Remjj0Da3-1379150.pdf Pluggable Terminal Blocks 508 TB PLU PLU W/HANDLE
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
TJ0751840000G TJ0751840000G Hersteller : AMPHENOL ANYTEK pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC8949529B700D6&compId=TJ5.084.pdf?ci_sign=79bfd933fac09839b9547530a188dc422d886bf6 pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADCBA3BDF60DC&compId=TJ.pdf?ci_sign=9c656a9a94504bc7ffecf97a703e9135dad63f93 Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; grey
Rated voltage: 300V
Electrical mounting: screw terminal
Colour: grey
Flammability rating: UL94V-0
Body material: PA66
Spatial orientation: straight
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Contact plating: tinned
Operating temperature: -40...115°C
Current rating: 12A
Number of pins: 7
Contact material: phosphor bronze
Contacts pitch: 5.08mm
Wire size: 24AWG...12AWG
Mechanical mounting: for cable
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
