Produkte > AMPHENOL ANYTEK > TJ1001520000G
TJ1001520000G

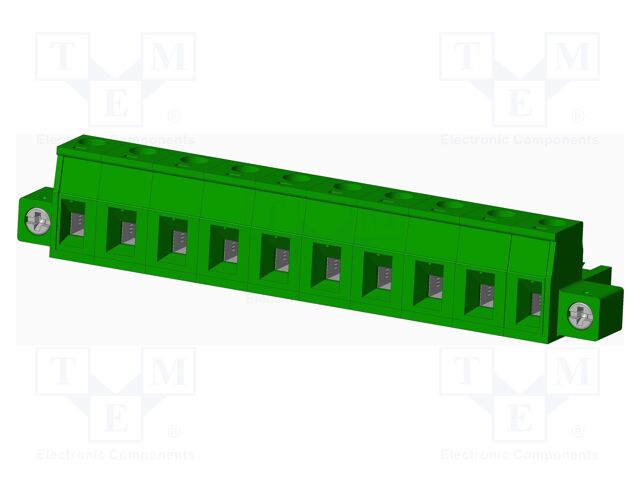

TJ1001520000G AMPHENOL ANYTEK


pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC894D3772920D6&compId=TJ7.622.pdf?ci_sign=277f61d90100232545a62ef13d6cc47d5169ca3c pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADCBA3BDF60DC&compId=TJ.pdf?ci_sign=9c656a9a94504bc7ffecf97a703e9135dad63f93 Hersteller: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x10
Type of connector: pluggable terminal block
Connector: plug
Current rating: 12A
Number of pins: 10
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: screw terminal
Contact plating: tinned
Flammability rating: UL94V-0
Body material: thermoplastic
Wire size: 24AWG...12AWG
Connector pinout layout: 1x10
Wire cross-section: 2.5mm2
Contacts pitch: 7.62mm
Operating temperature: -40...115°C
Colour: green
Kind of connector: female
Rated voltage: 300V
Locking system: friction lock; threaded joint
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details TJ1001520000G AMPHENOL ANYTEK

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x10, Type of connector: pluggable terminal block, Connector: plug, Current rating: 12A, Number of pins: 10, Spatial orientation: straight, Mechanical mounting: for cable, Electrical mounting: screw terminal, Contact plating: tinned, Flammability rating: UL94V-0, Body material: thermoplastic, Wire size: 24AWG...12AWG, Connector pinout layout: 1x10, Wire cross-section: 2.5mm2, Contacts pitch: 7.62mm, Operating temperature: -40...115°C, Colour: green, Kind of connector: female, Rated voltage: 300V, Locking system: friction lock; threaded joint, Anzahl je Verpackung: 1 Stücke.
