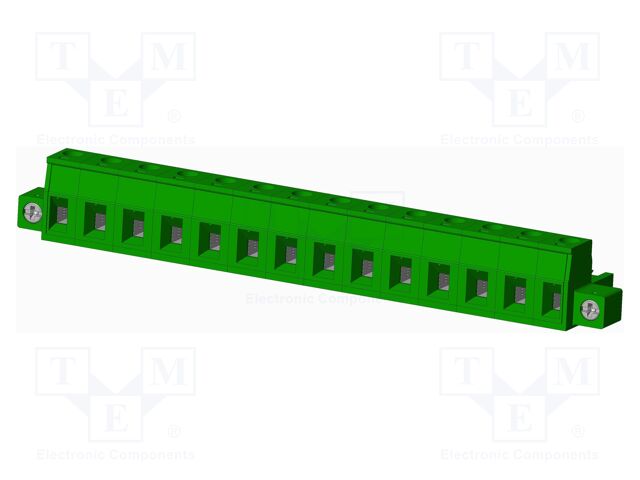

TJ1401520000G Amphenol Anytek
Hersteller: Amphenol AnytekDescription: TERM BLOCK PLUG 14POS 7.62MM
Packaging: Bulk
Features: Mating Flange, Retention Latches (Non-Wire Side)
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 14
Pitch: 0.300" (7.62mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screw
Number of Levels: 1
Wire Gauge or Range - AWG: 12-24 AWG
Positions Per Level: 14
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Current - UL: 20 A
Voltage - UL: 300 V
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details TJ1401520000G Amphenol Anytek
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x14, Type of connector: pluggable terminal block, Connector: plug, Current rating: 12A, Number of pins: 14, Spatial orientation: straight, Mechanical mounting: for cable, Electrical mounting: screw terminal, Contact plating: tinned, Flammability rating: UL94V-0, Body material: thermoplastic, Wire size: 24AWG...12AWG, Connector pinout layout: 1x14, Wire cross-section: 2.5mm2, Contacts pitch: 7.62mm, Operating temperature: -40...115°C, Colour: green, Locking system: friction lock; threaded joint, Rated voltage: 300V, Kind of connector: female.
Weitere Produktangebote TJ1401520000G
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
| TJ1401520000G | Hersteller : Amphenol Anytek |
Pluggable Terminal Blocks TB PLGBLE PLUG WF |
Produkt ist nicht verfügbar |
||
 |
TJ1401520000G | Hersteller : AMPHENOL ANYTEK |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x14 Type of connector: pluggable terminal block Connector: plug Current rating: 12A Number of pins: 14 Spatial orientation: straight Mechanical mounting: for cable Electrical mounting: screw terminal Contact plating: tinned Flammability rating: UL94V-0 Body material: thermoplastic Wire size: 24AWG...12AWG Connector pinout layout: 1x14 Wire cross-section: 2.5mm2 Contacts pitch: 7.62mm Operating temperature: -40...115°C Colour: green Locking system: friction lock; threaded joint Rated voltage: 300V Kind of connector: female |
Produkt ist nicht verfügbar |
