Produkte > AMPHENOL ANYTEK > TJ1531820000G

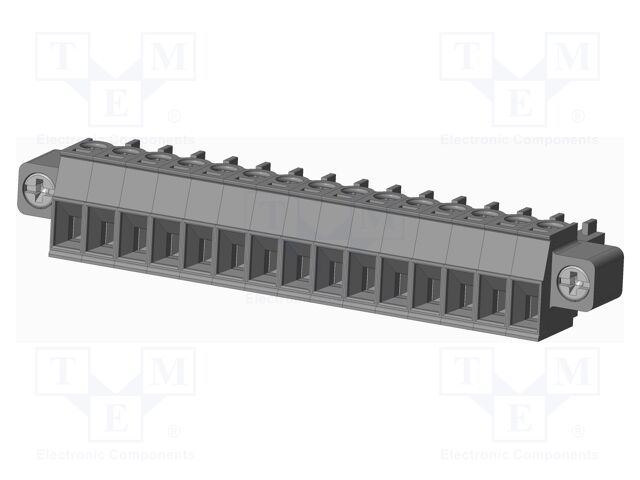

TJ1531820000G

TJ1531820000G AMPHENOL ANYTEK


TJ.pdf TJ3.812.pdf Hersteller: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 10A; 300V; grey
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Current rating: 10A
Rated voltage: 300V
Number of pins: 15
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: screw terminal
Contact material: phosphor bronze
Contact plating: tinned
Colour: grey
Flammability rating: UL94V-0
Body material: PA66
Wire size: 28AWG...16AWG
Contacts pitch: 3.81mm
Operating temperature: -40...115°C
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details TJ1531820000G AMPHENOL ANYTEK

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 10A; 300V; grey, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Current rating: 10A, Rated voltage: 300V, Number of pins: 15, Spatial orientation: straight, Mechanical mounting: for cable, Electrical mounting: screw terminal, Contact material: phosphor bronze, Contact plating: tinned, Colour: grey, Flammability rating: UL94V-0, Body material: PA66, Wire size: 28AWG...16AWG, Contacts pitch: 3.81mm, Operating temperature: -40...115°C, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote TJ1531820000G

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
TJ1531820000G Hersteller : Amphenol Anytek HNzEk81zo_Je.pdf Description: TERM BLOCK PLUG 15POS STR 3.81MM
Features: Mating Flange
Packaging: Bulk
Color: Gray
Mounting Type: Free Hanging (In-Line)
Number of Positions: 15
Pitch: 0.150" (3.81mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screw
Current - IEC: 10.5A
Number of Levels: 1
Wire Gauge or Range - AWG: 16-28 AWG
Wire Gauge or Range - mm²: 1.5mm²
Positions Per Level: 15
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Current - UL: 10 A
Voltage - IEC: 300 V
Voltage - UL: 300 V
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
TJ1531820000G Hersteller : Amphenol Anytek HNzEk81zo_Je.pdf Pluggable Terminal Blocks 381 TB PLUGGABLE PLUG WF
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
TJ1531820000G TJ1531820000G Hersteller : AMPHENOL ANYTEK TJ.pdf TJ3.812.pdf Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 10A; 300V; grey
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Current rating: 10A
Rated voltage: 300V
Number of pins: 15
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: screw terminal
Contact material: phosphor bronze
Contact plating: tinned
Colour: grey
Flammability rating: UL94V-0
Body material: PA66
Wire size: 28AWG...16AWG
Contacts pitch: 3.81mm
Operating temperature: -40...115°C
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
