Produkte > AMPHENOL ANYTEK > TJ1631530000G
TJ1631530000G

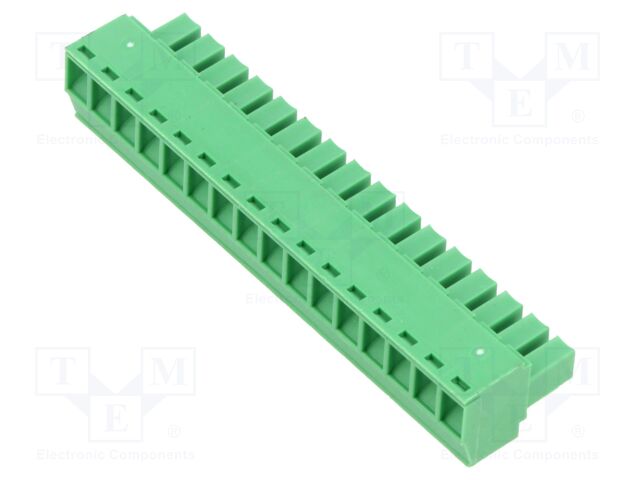

TJ1631530000G AMPHENOL ANYTEK

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC894D37700C0D6&compId=TJ3.81.pdf?ci_sign=d0a4077a3fe1b0458d6d3dd25985df11d66c8b5a pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADCBA3BDF60DC&compId=TJ.pdf?ci_sign=9c656a9a94504bc7ffecf97a703e9135dad63f93 Hersteller: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 10A; 300V; 1x16
Spatial orientation: straight
Colour: green
Body material: thermoplastic
Connector: plug
Electrical mounting: screw terminal
Locking system: friction lock
Kind of connector: female
Mechanical mounting: for cable
Contact plating: tinned
Type of connector: pluggable terminal block
Flammability rating: UL94V-0
Operating temperature: -40...115°C
Wire cross-section: 1.5mm2
Contacts pitch: 3.81mm
Number of ways: 16
Number of pins: 16
Current rating: 10A
Wire size: 28AWG...16AWG
Rated voltage: 300V
Connector pinout layout: 1x16
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1695 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
23+3.16 EUR
29+2.55 EUR
30+2.4 EUR
80+2.33 EUR
240+2.3 EUR
Mindestbestellmenge: 23
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details TJ1631530000G AMPHENOL ANYTEK

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 10A; 300V; 1x16, Spatial orientation: straight, Colour: green, Body material: thermoplastic, Connector: plug, Electrical mounting: screw terminal, Locking system: friction lock, Kind of connector: female, Mechanical mounting: for cable, Contact plating: tinned, Type of connector: pluggable terminal block, Flammability rating: UL94V-0, Operating temperature: -40...115°C, Wire cross-section: 1.5mm2, Contacts pitch: 3.81mm, Number of ways: 16, Number of pins: 16, Current rating: 10A, Wire size: 28AWG...16AWG, Rated voltage: 300V, Connector pinout layout: 1x16, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote TJ1631530000G nach Preis ab 2.3 EUR bis 6.86 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
TJ1631530000G TJ1631530000G Hersteller : AMPHENOL ANYTEK pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC894D37700C0D6&compId=TJ3.81.pdf?ci_sign=d0a4077a3fe1b0458d6d3dd25985df11d66c8b5a pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADCBA3BDF60DC&compId=TJ.pdf?ci_sign=9c656a9a94504bc7ffecf97a703e9135dad63f93 Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 10A; 300V; 1x16
Spatial orientation: straight
Colour: green
Body material: thermoplastic
Connector: plug
Electrical mounting: screw terminal
Locking system: friction lock
Kind of connector: female
Mechanical mounting: for cable
Contact plating: tinned
Type of connector: pluggable terminal block
Flammability rating: UL94V-0
Operating temperature: -40...115°C
Wire cross-section: 1.5mm2
Contacts pitch: 3.81mm
Number of ways: 16
Number of pins: 16
Current rating: 10A
Wire size: 28AWG...16AWG
Rated voltage: 300V
Connector pinout layout: 1x16
auf Bestellung 1695 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
23+3.16 EUR
29+2.55 EUR
30+2.4 EUR
80+2.33 EUR
240+2.3 EUR
Mindestbestellmenge: 23
Im Einkaufswagen  Stück im Wert von  UAH
TJ1631530000G TJ1631530000G Hersteller : Amphenol Anytek CrRzK__d4I42-1313778.pdf Pluggable Terminal Blocks 16P 3.81MM PLUG PLUGGABLE TERM BLK
auf Bestellung 1898 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+6.86 EUR
10+4.88 EUR
25+4.28 EUR
50+4.05 EUR
Im Einkaufswagen  Stück im Wert von  UAH
TJ1631530000G TJ1631530000G Hersteller : Amphenol Anytek vCheHtsK2_to.pdf Description: TERM BLOCK PLUG 16POS 3.81MM
Packaging: Box
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 16
Pitch: 0.150" (3.81mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screw - Rising Cage Clamp
Number of Levels: 1
Wire Gauge or Range - AWG: 16-26 AWG
Wire Gauge or Range - mm²: 0.5-1.5mm²
Positions Per Level: 16
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Part Status: Active
Current - UL: 10 A
Voltage - UL: 300 V
auf Bestellung 1704 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
3+6.86 EUR
10+4.89 EUR
25+4.28 EUR
50+3.9 EUR
100+3.59 EUR
250+3.26 EUR
500+3.08 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
TJ1631530000G TJ1631530000G Hersteller : AMPHENOL ANYTEK vCheHtsK2_to.pdf Description: AMPHENOL ANYTEK - TJ1631530000G - Steckbare Reihenklemme, 3.81 mm, 16 -polig, 28AWG bis 16AWG, 1.5 mm², Schraubanschluss, 10 A
tariffCode: 85366990
rohsCompliant: Y-EX
Nennspannung: 300V
hazardous: false
rohsPhthalatesCompliant: YES
Nennstrom: 10A
usEccn: EAR99
Drahtanschlussverfahren: Schraubanschluss
Anzahl der Positionen: 16-polig
Leiterquerschnitt CSA: 1.5mm²
euEccn: NLR
Leiterstärke (AWG): 28AWG bis 16AWG
Produktpalette: TJ 3.81mm
productTraceability: No
Rastermaß: 3.81mm
SVHC: No SVHC (14-Jun-2023)
auf Bestellung 1796 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
