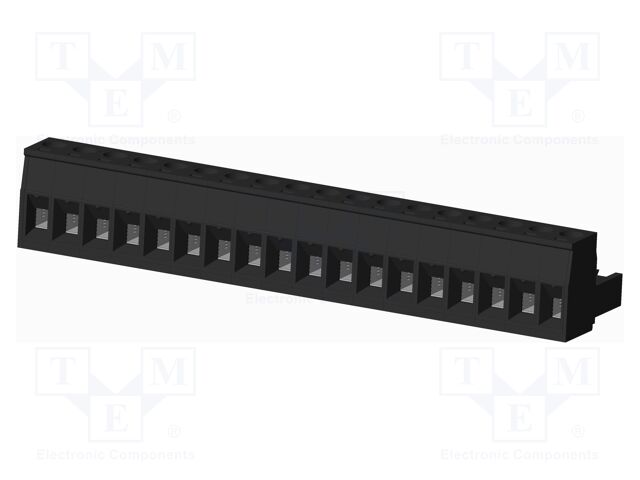

TJ1851030000G Amphenol Anytek
Hersteller: Amphenol AnytekDescription: TERM BLOCK PLUG 18POS STR 5.08MM
Packaging: Bulk
Features: Retention Latches (Non-Wire Side)
Color: Black
Mounting Type: Free Hanging (In-Line)
Number of Positions: 18
Pitch: 0.200" (5.08mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screw
Current - IEC: 20A
Number of Levels: 1
Wire Gauge or Range - AWG: 12-24 AWG
Wire Gauge or Range - mm²: 0.34-2.5mm²
Positions Per Level: 18
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Part Status: Active
Current - UL: 20 A
Voltage - IEC: 300 V
Voltage - UL: 300 V
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details TJ1851030000G Amphenol Anytek
Description: TERM BLOCK PLUG 18POS STR 5.08MM, Packaging: Bulk, Features: Retention Latches (Non-Wire Side), Color: Black, Mounting Type: Free Hanging (In-Line), Number of Positions: 18, Pitch: 0.200" (5.08mm), Type: Plug, Female Sockets, Operating Temperature: -40°C ~ 115°C, Termination Style: Screw, Current - IEC: 20A, Number of Levels: 1, Wire Gauge or Range - AWG: 12-24 AWG, Wire Gauge or Range - mm²: 0.34-2.5mm², Positions Per Level: 18, Plug Wire Entry: 180°, Contact Mating Finish: Tin, Part Status: Active, Current - UL: 20 A, Voltage - IEC: 300 V, Voltage - UL: 300 V.
Weitere Produktangebote TJ1851030000G
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
| TJ1851030000G | Hersteller : Amphenol Anytek |
Pluggable Terminal Blocks 508 TB PLU PLU DOWN/SIDE |
Produkt ist nicht verfügbar |
||
 |
TJ1851030000G | Hersteller : AMPHENOL ANYTEK |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 12A; 300V; PA66 Kind of connector: female Mechanical mounting: for cable Contact plating: tinned Body material: PA66 Type of connector: pluggable terminal block Connector: plug Flammability rating: UL94V-0 Operating temperature: -40...115°C Contacts pitch: 5.08mm Current rating: 12A Number of pins: 18 Wire size: 24AWG...12AWG Rated voltage: 300V Spatial orientation: straight Colour: black Contact material: phosphor bronze Electrical mounting: screw terminal |
Produkt ist nicht verfügbar |
