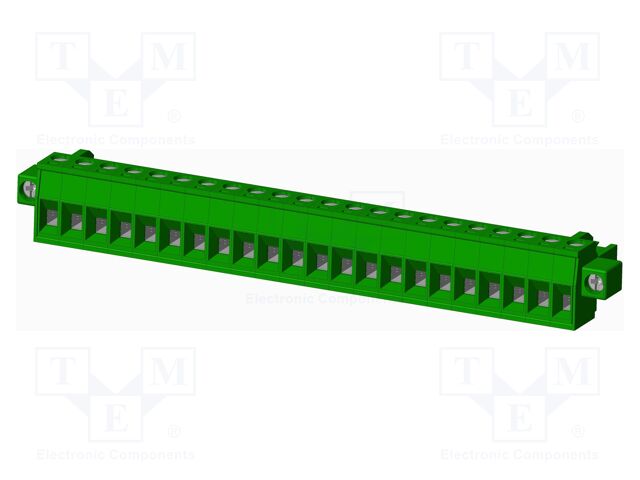

TJ2271570000G Amphenol Anytek
Hersteller: Amphenol Anytek
Description: TERM BLOCK PLUG 22POS STR 5MM
Plug Wire Entry: 180°
Positions Per Level: 22
Wire Gauge or Range - AWG: 12-24 AWG
Number of Levels: 1
Termination Style: Screw
Operating Temperature: -40°C ~ 115°C
Type: Plug, Female Sockets
Pitch: 0.197" (5.00mm)
Number of Positions: 22
Mounting Type: Free Hanging (In-Line)
Color: Green
Features: Mating Flange, Retention Latches (Non-Wire Side)
Packaging: Bulk
Voltage - UL: 300 V
Current - UL: 20 A
Contact Mating Finish: Tin
Produktrezensionen
Produktbewertung abgeben
Technische Details TJ2271570000G Amphenol Anytek
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x22, Kind of connector: female, Mechanical mounting: for cable, Locking system: friction lock; threaded joint, Colour: green, Body material: thermoplastic, Connector: plug, Type of connector: pluggable terminal block, Electrical mounting: screw terminal, Contact plating: tinned, Flammability rating: UL94V-0, Operating temperature: -40...115°C, Wire cross-section: 2.5mm2, Contacts pitch: 5mm, Current rating: 12A, Number of pins: 22, Wire size: 24AWG...12AWG, Rated voltage: 0.3kV, Connector pinout layout: 1x22, Spatial orientation: straight.
Weitere Produktangebote TJ2271570000G
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
| TJ2271570000G | Amphenol Anytek |
Pluggable Terminal Blocks 500 TB PLU PLU WF UP |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH | |
 |
TJ2271570000G | AMPHENOL ANYTEK |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x22 Kind of connector: female Mechanical mounting: for cable Locking system: friction lock; threaded joint Colour: green Body material: thermoplastic Connector: plug Type of connector: pluggable terminal block Electrical mounting: screw terminal Contact plating: tinned Flammability rating: UL94V-0 Operating temperature: -40...115°C Wire cross-section: 2.5mm2 Contacts pitch: 5mm Current rating: 12A Number of pins: 22 Wire size: 24AWG...12AWG Rated voltage: 0.3kV Connector pinout layout: 1x22 Spatial orientation: straight |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| TJ2271570000G |
|
Hersteller: Amphenol Anytek
Pluggable Terminal Blocks 500 TB PLU PLU WF UP
Pluggable Terminal Blocks 500 TB PLU PLU WF UP
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
| TJ2271570000G |
|
Hersteller: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x22
Kind of connector: female
Mechanical mounting: for cable
Locking system: friction lock; threaded joint
Colour: green
Body material: thermoplastic
Connector: plug
Type of connector: pluggable terminal block
Electrical mounting: screw terminal
Contact plating: tinned
Flammability rating: UL94V-0
Operating temperature: -40...115°C
Wire cross-section: 2.5mm2
Contacts pitch: 5mm
Current rating: 12A
Number of pins: 22
Wire size: 24AWG...12AWG
Rated voltage: 0.3kV
Connector pinout layout: 1x22
Spatial orientation: straight
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x22
Kind of connector: female
Mechanical mounting: for cable
Locking system: friction lock; threaded joint
Colour: green
Body material: thermoplastic
Connector: plug
Type of connector: pluggable terminal block
Electrical mounting: screw terminal
Contact plating: tinned
Flammability rating: UL94V-0
Operating temperature: -40...115°C
Wire cross-section: 2.5mm2
Contacts pitch: 5mm
Current rating: 12A
Number of pins: 22
Wire size: 24AWG...12AWG
Rated voltage: 0.3kV
Connector pinout layout: 1x22
Spatial orientation: straight
