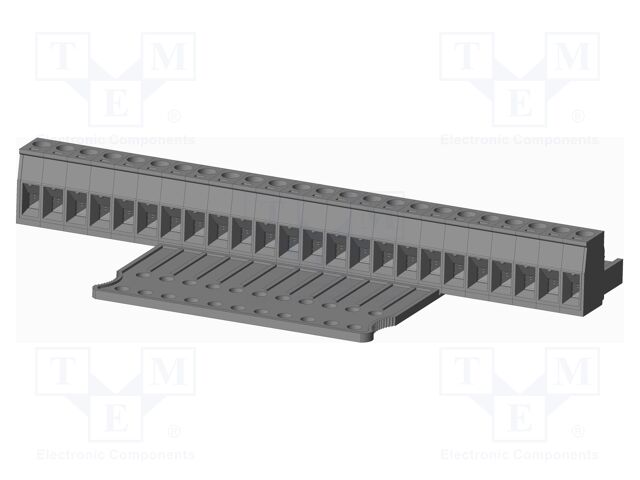

TJ2451840000G Amphenol Anytek
Hersteller: Amphenol Anytek
Description: TERM BLOCK PLUG 24POS STR 5.08MM
Features: Retention Latches (Non-Wire Side), Strain Relief
Packaging: Bulk
Color: Gray
Mounting Type: Free Hanging (In-Line)
Number of Positions: 24
Pitch: 0.200" (5.08mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screw
Current - IEC: 20A
Number of Levels: 1
Wire Gauge or Range - AWG: 12-24 AWG
Wire Gauge or Range - mm²: 0.34-2.5mm²
Positions Per Level: 24
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Current - UL: 20 A
Voltage - IEC: 300 V
Voltage - UL: 300 V
Produktrezensionen
Produktbewertung abgeben
Technische Details TJ2451840000G Amphenol Anytek
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 300V; grey, Colour: grey, Body material: PA66, Operating temperature: -40...115°C, Wire size: 24AWG...12AWG, Rated voltage: 0.3kV, Kind of connector: female, Mechanical mounting: for cable, Contact material: phosphor bronze, Connector: plug, Type of connector: pluggable terminal block, Electrical mounting: screw terminal, Spatial orientation: straight, Contact plating: tinned, Flammability rating: UL94V-0, Contacts pitch: 5.08mm, Current rating: 12A, Number of pins: 24.
Weitere Produktangebote TJ2451840000G
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
| TJ2451840000G | Amphenol Anytek |
 Pluggable Terminal Blocks 508 TB PLU PLU W/HANDLE |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH | |
 |
TJ2451840000G | AMPHENOL ANYTEK |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 12A; 300V; grey Colour: grey Body material: PA66 Operating temperature: -40...115°C Wire size: 24AWG...12AWG Rated voltage: 0.3kV Kind of connector: female Mechanical mounting: for cable Contact material: phosphor bronze Connector: plug Type of connector: pluggable terminal block Electrical mounting: screw terminal Spatial orientation: straight Contact plating: tinned Flammability rating: UL94V-0 Contacts pitch: 5.08mm Current rating: 12A Number of pins: 24 |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| TJ2451840000G |
|
Hersteller: Amphenol Anytek
Pluggable Terminal Blocks 508 TB PLU PLU W/HANDLE
Pluggable Terminal Blocks 508 TB PLU PLU W/HANDLE
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
| TJ2451840000G |
|
Hersteller: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; grey
Colour: grey
Body material: PA66
Operating temperature: -40...115°C
Wire size: 24AWG...12AWG
Rated voltage: 0.3kV
Kind of connector: female
Mechanical mounting: for cable
Contact material: phosphor bronze
Connector: plug
Type of connector: pluggable terminal block
Electrical mounting: screw terminal
Spatial orientation: straight
Contact plating: tinned
Flammability rating: UL94V-0
Contacts pitch: 5.08mm
Current rating: 12A
Number of pins: 24
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; grey
Colour: grey
Body material: PA66
Operating temperature: -40...115°C
Wire size: 24AWG...12AWG
Rated voltage: 0.3kV
Kind of connector: female
Mechanical mounting: for cable
Contact material: phosphor bronze
Connector: plug
Type of connector: pluggable terminal block
Electrical mounting: screw terminal
Spatial orientation: straight
Contact plating: tinned
Flammability rating: UL94V-0
Contacts pitch: 5.08mm
Current rating: 12A
Number of pins: 24
