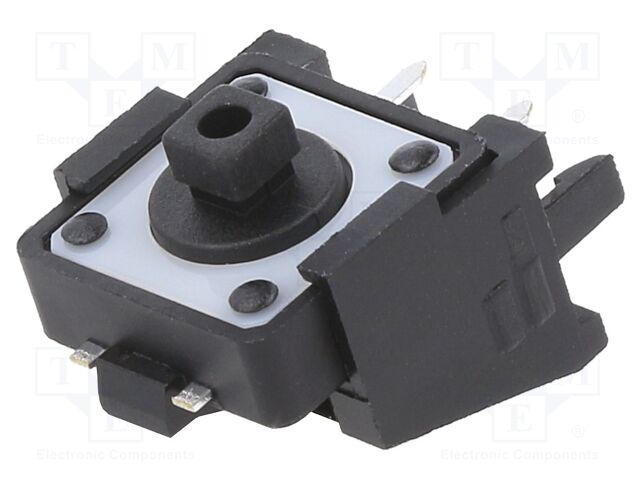

TL1100CF160Q E-SWITCH
Hersteller: E-SWITCH
Category: Microswitches TACT
Description: Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; THT; 1.57N; 12x12mm
Type of switch: microswitch TACT
Contacts configuration: SPST-NO
Number of positions: 2
DC contacts rating @R: 0.05A / 12V DC
Mounting: THT
Operating Force: 1.57N
Body dimensions: 12x12mm
Button height: 6.45mm
Switching method: OFF-(ON)
Terminal pitch: 5mm
Operating temperature: -20...70°C
Button shape: square
Key stroke: 0.3mm
Leads: angled; for PCB
Max. contact resistance:: 100mΩ
Electrical life: 100000 cycles
Stable positions number: 1
Anzahl je Verpackung: 1 Stücke
Category: Microswitches TACT
Description: Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; THT; 1.57N; 12x12mm
Type of switch: microswitch TACT
Contacts configuration: SPST-NO
Number of positions: 2
DC contacts rating @R: 0.05A / 12V DC
Mounting: THT
Operating Force: 1.57N
Body dimensions: 12x12mm
Button height: 6.45mm
Switching method: OFF-(ON)
Terminal pitch: 5mm
Operating temperature: -20...70°C
Button shape: square
Key stroke: 0.3mm
Leads: angled; for PCB
Max. contact resistance:: 100mΩ
Electrical life: 100000 cycles
Stable positions number: 1
Anzahl je Verpackung: 1 Stücke
auf Bestellung 5121 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
121+ | 0.59 EUR |
126+ | 0.57 EUR |
171+ | 0.42 EUR |
181+ | 0.4 EUR |
800+ | 0.38 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TL1100CF160Q E-SWITCH
Category: Microswitches TACT, Description: Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; THT; 1.57N; 12x12mm, Type of switch: microswitch TACT, Contacts configuration: SPST-NO, Number of positions: 2, DC contacts rating @R: 0.05A / 12V DC, Mounting: THT, Operating Force: 1.57N, Body dimensions: 12x12mm, Button height: 6.45mm, Switching method: OFF-(ON), Terminal pitch: 5mm, Operating temperature: -20...70°C, Button shape: square, Key stroke: 0.3mm, Leads: angled; for PCB, Max. contact resistance:: 100mΩ, Electrical life: 100000 cycles, Stable positions number: 1, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote TL1100CF160Q nach Preis ab 0.38 EUR bis 0.9 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TL1100CF160Q | Hersteller : E-SWITCH |
Category: Microswitches TACT Description: Microswitch TACT; SPST-NO; Pos: 2; 0.05A/12VDC; THT; 1.57N; 12x12mm Type of switch: microswitch TACT Contacts configuration: SPST-NO Number of positions: 2 DC contacts rating @R: 0.05A / 12V DC Mounting: THT Operating Force: 1.57N Body dimensions: 12x12mm Button height: 6.45mm Switching method: OFF-(ON) Terminal pitch: 5mm Operating temperature: -20...70°C Button shape: square Key stroke: 0.3mm Leads: angled; for PCB Max. contact resistance:: 100mΩ Electrical life: 100000 cycles Stable positions number: 1 |
auf Bestellung 5121 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||||||||
TL1100CF160Q | Hersteller : E-Switch | Tactile Switches 12 X 6.45MM R/A 160G |
auf Bestellung 4744 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||||||
TL1100CF160Q | Hersteller : E-Switch |
Description: SWITCH TACTILE SPST-NO 0.05A 12V Packaging: Bulk Features: Tactile Feedback Mounting Type: Through Hole, Right Angle Circuit: SPST-NO Switch Function: Off-Mom Operating Temperature: -20°C ~ 70°C Termination Style: PC Pin Illumination: Non-Illuminated Contact Rating @ Voltage: 0.05A @ 12VDC Actuator Type: Plunger for Cap Operating Force: 160gf Outline: 12.00mm x 9.90mm Actuator Orientation: Side Actuated Part Status: Active Actuator Length, Right Angle: 6.45mm |
auf Bestellung 18605 Stücke: Lieferzeit 10-14 Tag (e) |
|
|||||||||||||||||||||
TL1100CF160Q | Hersteller : E-SWITCH |
Description: E-SWITCH - TL1100CF160Q - Taster, TL1100 Series, Seitliche Betätigung, Durchsteckmontage, Stößel für Kappe, 160 gf tariffCode: 85365011 Betätiger: Stößel für Kappe rohsCompliant: YES Schalterabmessungen (L x B): 12mm x 12mm hazardous: false rohsPhthalatesCompliant: YES Betätigerausrichtung: Seitliche Betätigung IP-Schutzart: - usEccn: EAR99 euEccn: NLR Beleuchtung: Nicht beleuchtet Schaltermontage: Durchsteckmontage Produktpalette: TL1100 Series Betätigungskraft: 160gf productTraceability: No Schaltleistung: 50mA bei 12V DC SVHC: No SVHC (10-Jun-2022) |
auf Bestellung 4358 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||||||||||
TL1100CF160Q | Hersteller : E-Switch | Switch Tactile N.O. SPST Square Button PC Pins 0.05A 12VDC 1.57N Thru-Hole |
auf Bestellung 6800 Stücke: Lieferzeit 14-21 Tag (e) |
|
