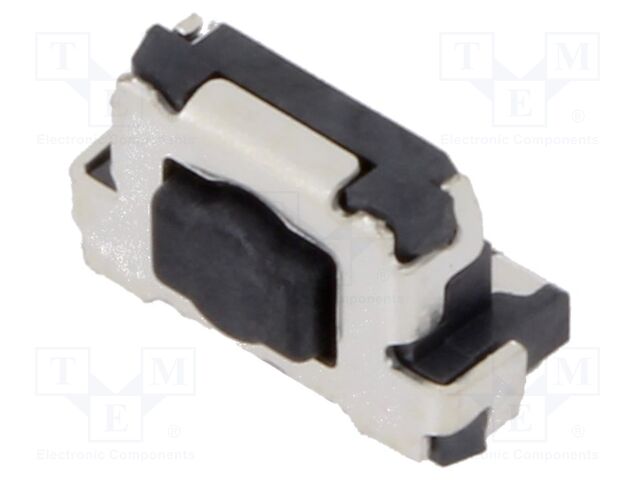

TL4100AF120QG

TL4100AF120QG E-SWITCH


pVersion=0046&contRep=ZT&docId=005056AB90B41EDBB895DCCE09E840C7&compId=P004000.pdf?ci_sign=6239db20be49926c582ffc156b49fd0da60c37fc pVersion=0046&contRep=ZT&docId=005056AB281E1EDD948CAFFBBC4D00D3&compId=TL4100AF120QG.pdf?ci_sign=f410218bae4732cb0999672f91700f9f7b58a30c Hersteller: E-SWITCH
Category: Microswitches TACT
Description: Microswitch TACT; SPST; Pos: 2; 0.05A/12VDC; SMD; none; 1.18N; black
Type of switch: microswitch TACT
Contacts configuration: SPST
Number of positions: 2
Stable positions number: 1
DC contacts rating @R: 50mA / 12V DC
Mounting: SMD
Illumination: none
Operating Force: 1.18N
Body dimensions: 6.2x2.55x3.5mm
Button height: 0.45mm
Switching method: OFF-(ON)
Terminal pitch: 4.35mm
Operating temperature: -40...85°C
Actuator colour: black
Key stroke: 0.15mm
Leads: soldering pads
Max. contact resistance:: 100mΩ
Mechanical durability: 1000000 cycles
auf Bestellung 1465 Stücke:

Lieferzeit 14-21 Tag (e)
Anzahl Preis
81+0.89 EUR
102+0.7 EUR
104+0.69 EUR
108+0.67 EUR
Mindestbestellmenge: 81
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details TL4100AF120QG E-SWITCH

Category: Microswitches TACT, Description: Microswitch TACT; SPST; Pos: 2; 0.05A/12VDC; SMD; none; 1.18N; black, Type of switch: microswitch TACT, Contacts configuration: SPST, Number of positions: 2, Stable positions number: 1, DC contacts rating @R: 50mA / 12V DC, Mounting: SMD, Illumination: none, Operating Force: 1.18N, Body dimensions: 6.2x2.55x3.5mm, Button height: 0.45mm, Switching method: OFF-(ON), Terminal pitch: 4.35mm, Operating temperature: -40...85°C, Actuator colour: black, Key stroke: 0.15mm, Leads: soldering pads, Max. contact resistance:: 100mΩ, Mechanical durability: 1000000 cycles, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote TL4100AF120QG nach Preis ab 0.67 EUR bis 1.92 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
TL4100AF120QG TL4100AF120QG Hersteller : E-SWITCH pVersion=0046&contRep=ZT&docId=005056AB90B41EDBB895DCCE09E840C7&compId=P004000.pdf?ci_sign=6239db20be49926c582ffc156b49fd0da60c37fc pVersion=0046&contRep=ZT&docId=005056AB281E1EDD948CAFFBBC4D00D3&compId=TL4100AF120QG.pdf?ci_sign=f410218bae4732cb0999672f91700f9f7b58a30c Category: Microswitches TACT
Description: Microswitch TACT; SPST; Pos: 2; 0.05A/12VDC; SMD; none; 1.18N; black
Type of switch: microswitch TACT
Contacts configuration: SPST
Number of positions: 2
Stable positions number: 1
DC contacts rating @R: 50mA / 12V DC
Mounting: SMD
Illumination: none
Operating Force: 1.18N
Body dimensions: 6.2x2.55x3.5mm
Button height: 0.45mm
Switching method: OFF-(ON)
Terminal pitch: 4.35mm
Operating temperature: -40...85°C
Actuator colour: black
Key stroke: 0.15mm
Leads: soldering pads
Max. contact resistance:: 100mΩ
Mechanical durability: 1000000 cycles
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1465 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
81+0.89 EUR
102+0.7 EUR
104+0.69 EUR
108+0.67 EUR
Mindestbestellmenge: 81
Im Einkaufswagen  Stück im Wert von  UAH
TL4100AF120QG TL4100AF120QG Hersteller : E-Switch TL4100.pdf Description: SWITCH TACTILE SPST-NO 0.05A 12V
Packaging: Tape & Reel (TR)
Mounting Type: Edge Mount, Right Angle
Circuit: SPST-NO
Switch Function: Off-Mom
Operating Temperature: -40°C ~ 85°C
Termination Style: Gull Wing
Illumination: Non-Illuminated
Contact Rating @ Voltage: 0.05A @ 12VDC
Actuator Type: Rectangular Button
Operating Force: 120gf
Outline: 6.20mm x 2.50mm
Actuator Orientation: Side Actuated
Part Status: Active
Actuator Length, Right Angle: 2.00mm
auf Bestellung 6000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
2000+1.04 EUR
4000+0.99 EUR
6000+0.97 EUR
Mindestbestellmenge: 2000
Im Einkaufswagen  Stück im Wert von  UAH
TL4100AF120QG TL4100AF120QG Hersteller : E-Switch TL4100AF120QG-3459226.pdf Tactile Switches Right Angle Edge Mounted Tact Switch
auf Bestellung 1563 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
2+1.44 EUR
10+1.26 EUR
100+1.09 EUR
500+1.02 EUR
1000+0.98 EUR
2000+0.87 EUR
10000+0.84 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
TL4100AF120QG TL4100AF120QG Hersteller : E-Switch TL4100.pdf Description: SWITCH TACTILE SPST-NO 0.05A 12V
Packaging: Cut Tape (CT)
Mounting Type: Edge Mount, Right Angle
Circuit: SPST-NO
Switch Function: Off-Mom
Operating Temperature: -40°C ~ 85°C
Termination Style: Gull Wing
Illumination: Non-Illuminated
Contact Rating @ Voltage: 0.05A @ 12VDC
Actuator Type: Rectangular Button
Operating Force: 120gf
Outline: 6.20mm x 2.50mm
Actuator Orientation: Side Actuated
Part Status: Active
Actuator Length, Right Angle: 2.00mm
auf Bestellung 8359 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
11+1.71 EUR
13+1.45 EUR
25+1.35 EUR
100+1.2 EUR
250+1.12 EUR
500+1.05 EUR
1000+1 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
TL4100AF120QG Hersteller : E-Switch TL4100.pdf Switch Tactile OFF (ON) SPST Button Gull Wing 0.05A 12VDC 1.18N SMD
auf Bestellung 3485 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
115+1.26 EUR
Mindestbestellmenge: 115
Im Einkaufswagen  Stück im Wert von  UAH
TL4100AF120QG Hersteller : E-Switch TL4100.pdf Switch Tactile OFF (ON) SPST Button Gull Wing 0.05A 12VDC 1.18N SMD
auf Bestellung 1400 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
76+1.92 EUR
250+1.83 EUR
500+1.73 EUR
1000+1.64 EUR
Mindestbestellmenge: 76
Im Einkaufswagen  Stück im Wert von  UAH
