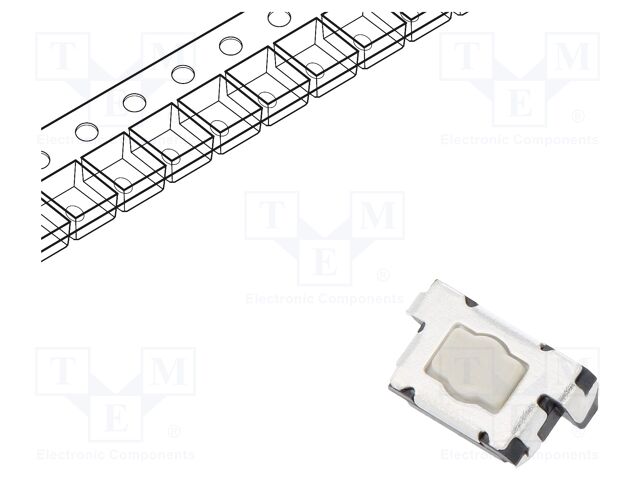

TL4100AF240QG E-SWITCH
Hersteller: E-SWITCH
Category: Microswitches TACT
Description: Microswitch TACT; SPST; Pos: 2; 0.05A/12VDC; side,SMD; none; 2.35N
Mounting: side; SMD
Button shape: rectangular
Type of switch: microswitch TACT
Button height: 0.45mm
Mechanical durability: 500000 cycles
DC contacts rating @R: 50mA / 12V DC
Actuator colour: black
Operating temperature: -40...85°C
Contacts configuration: SPST
Stable positions number: 1
Leads: soldering pads
Operating Force: 2.35N
Key stroke: 0.15mm
Body dimensions: 6.2x2.55x3.5mm
Switching method: OFF-(ON)
Max. contact resistance:: 100mΩ
Illumination: none
Number of positions: 2
Terminal pitch: 4.35mm
| Anzahl | Privatkunde |
|---|---|
| 69+ | 1.24 EUR |
| 80+ | 1.07 EUR |
| 86+ | 1 EUR |
| 100+ | 0.89 EUR |
| 250+ | 0.81 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TL4100AF240QG E-SWITCH
Category: Microswitches TACT, Description: Microswitch TACT; SPST; Pos: 2; 0.05A/12VDC; side,SMD; none; 2.35N, Mounting: side; SMD, Button shape: rectangular, Type of switch: microswitch TACT, Button height: 0.45mm, Mechanical durability: 500000 cycles, DC contacts rating @R: 50mA / 12V DC, Actuator colour: black, Operating temperature: -40...85°C, Contacts configuration: SPST, Stable positions number: 1, Leads: soldering pads, Operating Force: 2.35N, Key stroke: 0.15mm, Body dimensions: 6.2x2.55x3.5mm, Switching method: OFF-(ON), Max. contact resistance:: 100mΩ, Illumination: none, Number of positions: 2, Terminal pitch: 4.35mm.
Weitere Produktangebote TL4100AF240QG nach Preis ab 0.95 EUR bis 2.23 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TL4100AF240QG | E-Switch |
Description: SWITCH TACTILE SPST-NO 0.05A 12V Packaging: Tape & Reel (TR) Mounting Type: Edge Mount, Right Angle Circuit: SPST-NO Switch Function: Off-Mom Operating Temperature: -40°C ~ 85°C Termination Style: Gull Wing Illumination: Non-Illuminated Contact Rating @ Voltage: 0.05A @ 12VDC Actuator Type: Rectangular Button Operating Force: 240gf Outline: 6.20mm x 2.50mm Actuator Orientation: Side Actuated Part Status: Active Actuator Length, Right Angle: 2.00mm |
auf Bestellung 20000 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
TL4100AF240QG | E-Switch |
Tactile Switches Right Angle Edge Mounted Tact Switch |
auf Bestellung 1709 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
|
|
TL4100AF240QG | E-Switch |
Description: SWITCH TACTILE SPST-NO 0.05A 12V Packaging: Cut Tape (CT) Mounting Type: Edge Mount, Right Angle Circuit: SPST-NO Switch Function: Off-Mom Operating Temperature: -40°C ~ 85°C Termination Style: Gull Wing Illumination: Non-Illuminated Contact Rating @ Voltage: 0.05A @ 12VDC Actuator Type: Rectangular Button Operating Force: 240gf Outline: 6.20mm x 2.50mm Actuator Orientation: Side Actuated Part Status: Active Actuator Length, Right Angle: 2.00mm |
auf Bestellung 20145 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
TL4100AF240QG | E-SWITCH |
Description: E-SWITCH - TL4100AF240QG - Taster, SPST-NO-DM, TL4100 Series, Seitliche Betätigung, Randmontage, abgewinkelt tariffCode: 85365080 Betätiger: Rechteckige Taste rohsCompliant: YES Schalterabmessungen (L x B): 6.2mm x 2.5mm hazardous: false rohsPhthalatesCompliant: YES Betätigerausrichtung: Seitliche Betätigung IP-Schutzart: - usEccn: EAR99 euEccn: NLR Beleuchtung: Nicht beleuchtet Schaltermontage: Randmontage, abgewinkelt Produktpalette: TL4100 Series Betätigungskraft: 240gf productTraceability: No Schaltleistung: 50mA bei 12V DC SVHC: No SVHC (27-Jun-2018) |
auf Bestellung 5554 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||
| TL4100AF240QG | E-Switch |
Switch Tactile OFF (ON) SPST Button Gull Wing 0.05A 12VDC 2.35N SMD |
auf Bestellung 2000 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||||
| TL4100AF240QG | E-Switch |
Switch Tactile OFF (ON) SPST Button Gull Wing 0.05A 12VDC 2.35N SMD |
auf Bestellung 4611 Stücke: Lieferzeit 14-21 Tag (e) |
|
| TL4100AF240QG |
|
Hersteller: E-Switch
Description: SWITCH TACTILE SPST-NO 0.05A 12V
Packaging: Tape & Reel (TR)
Mounting Type: Edge Mount, Right Angle
Circuit: SPST-NO
Switch Function: Off-Mom
Operating Temperature: -40°C ~ 85°C
Termination Style: Gull Wing
Illumination: Non-Illuminated
Contact Rating @ Voltage: 0.05A @ 12VDC
Actuator Type: Rectangular Button
Operating Force: 240gf
Outline: 6.20mm x 2.50mm
Actuator Orientation: Side Actuated
Part Status: Active
Actuator Length, Right Angle: 2.00mm
Description: SWITCH TACTILE SPST-NO 0.05A 12V
Packaging: Tape & Reel (TR)
Mounting Type: Edge Mount, Right Angle
Circuit: SPST-NO
Switch Function: Off-Mom
Operating Temperature: -40°C ~ 85°C
Termination Style: Gull Wing
Illumination: Non-Illuminated
Contact Rating @ Voltage: 0.05A @ 12VDC
Actuator Type: Rectangular Button
Operating Force: 240gf
Outline: 6.20mm x 2.50mm
Actuator Orientation: Side Actuated
Part Status: Active
Actuator Length, Right Angle: 2.00mm
auf Bestellung 20000 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2000+ | 1.08 EUR |
| 4000+ | 1.02 EUR |
| 6000+ | 1 EUR |
| 10000+ | 0.96 EUR |
| 14000+ | 0.95 EUR |
| TL4100AF240QG |
|
Hersteller: E-Switch
Tactile Switches Right Angle Edge Mounted Tact Switch
Tactile Switches Right Angle Edge Mounted Tact Switch
auf Bestellung 1709 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2+ | 1.92 EUR |
| 10+ | 1.82 EUR |
| 25+ | 1.69 EUR |
| 100+ | 1.48 EUR |
| 250+ | 1.36 EUR |
| 500+ | 1.33 EUR |
| 1000+ | 1.29 EUR |
| TL4100AF240QG |
|
Hersteller: E-Switch
Description: SWITCH TACTILE SPST-NO 0.05A 12V
Packaging: Cut Tape (CT)
Mounting Type: Edge Mount, Right Angle
Circuit: SPST-NO
Switch Function: Off-Mom
Operating Temperature: -40°C ~ 85°C
Termination Style: Gull Wing
Illumination: Non-Illuminated
Contact Rating @ Voltage: 0.05A @ 12VDC
Actuator Type: Rectangular Button
Operating Force: 240gf
Outline: 6.20mm x 2.50mm
Actuator Orientation: Side Actuated
Part Status: Active
Actuator Length, Right Angle: 2.00mm
Description: SWITCH TACTILE SPST-NO 0.05A 12V
Packaging: Cut Tape (CT)
Mounting Type: Edge Mount, Right Angle
Circuit: SPST-NO
Switch Function: Off-Mom
Operating Temperature: -40°C ~ 85°C
Termination Style: Gull Wing
Illumination: Non-Illuminated
Contact Rating @ Voltage: 0.05A @ 12VDC
Actuator Type: Rectangular Button
Operating Force: 240gf
Outline: 6.20mm x 2.50mm
Actuator Orientation: Side Actuated
Part Status: Active
Actuator Length, Right Angle: 2.00mm
auf Bestellung 20145 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 11+ | 1.95 EUR |
| 13+ | 1.65 EUR |
| 25+ | 1.55 EUR |
| 100+ | 1.38 EUR |
| 250+ | 1.27 EUR |
| 500+ | 1.2 EUR |
| 1000+ | 1.14 EUR |
| TL4100AF240QG |
|
Hersteller: E-SWITCH
Description: E-SWITCH - TL4100AF240QG - Taster, SPST-NO-DM, TL4100 Series, Seitliche Betätigung, Randmontage, abgewinkelt
tariffCode: 85365080
Betätiger: Rechteckige Taste
rohsCompliant: YES
Schalterabmessungen (L x B): 6.2mm x 2.5mm
hazardous: false
rohsPhthalatesCompliant: YES
Betätigerausrichtung: Seitliche Betätigung
IP-Schutzart: -
usEccn: EAR99
euEccn: NLR
Beleuchtung: Nicht beleuchtet
Schaltermontage: Randmontage, abgewinkelt
Produktpalette: TL4100 Series
Betätigungskraft: 240gf
productTraceability: No
Schaltleistung: 50mA bei 12V DC
SVHC: No SVHC (27-Jun-2018)
Description: E-SWITCH - TL4100AF240QG - Taster, SPST-NO-DM, TL4100 Series, Seitliche Betätigung, Randmontage, abgewinkelt
tariffCode: 85365080
Betätiger: Rechteckige Taste
rohsCompliant: YES
Schalterabmessungen (L x B): 6.2mm x 2.5mm
hazardous: false
rohsPhthalatesCompliant: YES
Betätigerausrichtung: Seitliche Betätigung
IP-Schutzart: -
usEccn: EAR99
euEccn: NLR
Beleuchtung: Nicht beleuchtet
Schaltermontage: Randmontage, abgewinkelt
Produktpalette: TL4100 Series
Betätigungskraft: 240gf
productTraceability: No
Schaltleistung: 50mA bei 12V DC
SVHC: No SVHC (27-Jun-2018)
auf Bestellung 5554 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 113+ | 2.23 EUR |
| 133+ | 1.76 EUR |
| 143+ | 1.51 EUR |
| 151+ | 1.43 EUR |
| 160+ | 1.34 EUR |
| TL4100AF240QG |
|
Hersteller: E-Switch
Switch Tactile OFF (ON) SPST Button Gull Wing 0.05A 12VDC 2.35N SMD
Switch Tactile OFF (ON) SPST Button Gull Wing 0.05A 12VDC 2.35N SMD
auf Bestellung 2000 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 2000+ | 1.25 EUR |
| TL4100AF240QG |
|
Hersteller: E-Switch
Switch Tactile OFF (ON) SPST Button Gull Wing 0.05A 12VDC 2.35N SMD
Switch Tactile OFF (ON) SPST Button Gull Wing 0.05A 12VDC 2.35N SMD
auf Bestellung 4611 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 120+ | 1.48 EUR |
| 136+ | 1.29 EUR |
| 250+ | 1.14 EUR |
| 500+ | 1.07 EUR |
