Produkte > E-SWITCH > TL9210AF180Q
TL9210AF180Q

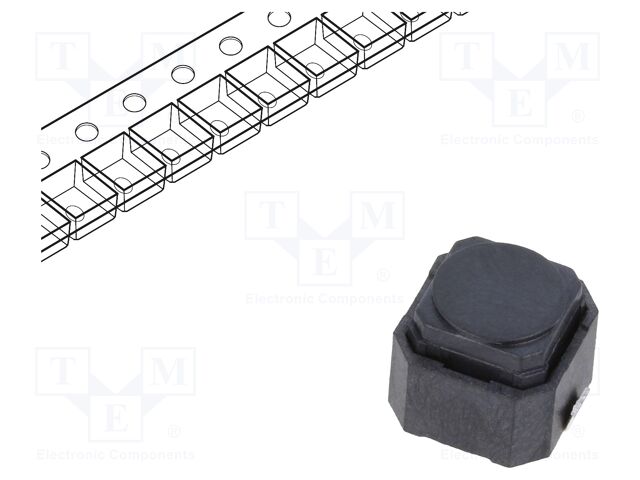

TL9210AF180Q E-SWITCH


pVersion=0046&contRep=ZT&docId=005056AB90B41EDBB895DF82B613A0C7&compId=P010920.pdf?ci_sign=d9cfbb525fd1923d105eb196049640fb39b5aebe pVersion=0046&contRep=ZT&docId=005056AB281E1EDD948CB23136DEC0D3&compId=TL9210AF180Q.pdf?ci_sign=8ce7e8375f32ad276299b44aca4d5a66cb58c63a Hersteller: E-SWITCH
Category: Microswitches TACT
Description: Microswitch TACT; SPST; Pos: 2; 0.05A/12VDC; SMD; none; 1.81N; 5mm
Type of switch: microswitch TACT
Contacts configuration: SPST
Number of positions: 2
Stable positions number: 1
DC contacts rating @R: 50mA / 12V DC
Mounting: SMD
Illumination: none
Operating Force: 1.81N
Body dimensions: 6x6x3.5mm
Button height: 5mm
Switching method: OFF-(ON)
Terminal pitch: 6mm
Operating temperature: -20...80°C
Button shape: round
Actuator colour: black
Key stroke: 1.3mm
Leads: soldering pads
Max. contact resistance:: 100mΩ
Mechanical durability: 100000 cycles
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3358 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
132+0.54 EUR
155+0.46 EUR
160+0.45 EUR
166+0.43 EUR
Mindestbestellmenge: 132
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details TL9210AF180Q E-SWITCH

Category: Microswitches TACT, Description: Microswitch TACT; SPST; Pos: 2; 0.05A/12VDC; SMD; none; 1.81N; 5mm, Type of switch: microswitch TACT, Contacts configuration: SPST, Number of positions: 2, Stable positions number: 1, DC contacts rating @R: 50mA / 12V DC, Mounting: SMD, Illumination: none, Operating Force: 1.81N, Body dimensions: 6x6x3.5mm, Button height: 5mm, Switching method: OFF-(ON), Terminal pitch: 6mm, Operating temperature: -20...80°C, Button shape: round, Actuator colour: black, Key stroke: 1.3mm, Leads: soldering pads, Max. contact resistance:: 100mΩ, Mechanical durability: 100000 cycles, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote TL9210AF180Q nach Preis ab 0.43 EUR bis 1.25 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
TL9210AF180Q TL9210AF180Q Hersteller : E-SWITCH pVersion=0046&contRep=ZT&docId=005056AB90B41EDBB895DF82B613A0C7&compId=P010920.pdf?ci_sign=d9cfbb525fd1923d105eb196049640fb39b5aebe pVersion=0046&contRep=ZT&docId=005056AB281E1EDD948CB23136DEC0D3&compId=TL9210AF180Q.pdf?ci_sign=8ce7e8375f32ad276299b44aca4d5a66cb58c63a Category: Microswitches TACT
Description: Microswitch TACT; SPST; Pos: 2; 0.05A/12VDC; SMD; none; 1.81N; 5mm
Type of switch: microswitch TACT
Contacts configuration: SPST
Number of positions: 2
Stable positions number: 1
DC contacts rating @R: 50mA / 12V DC
Mounting: SMD
Illumination: none
Operating Force: 1.81N
Body dimensions: 6x6x3.5mm
Button height: 5mm
Switching method: OFF-(ON)
Terminal pitch: 6mm
Operating temperature: -20...80°C
Button shape: round
Actuator colour: black
Key stroke: 1.3mm
Leads: soldering pads
Max. contact resistance:: 100mΩ
Mechanical durability: 100000 cycles
auf Bestellung 3358 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
132+0.54 EUR
155+0.46 EUR
160+0.45 EUR
166+0.43 EUR
Mindestbestellmenge: 132
Im Einkaufswagen  Stück im Wert von  UAH
TL9210AF180Q TL9210AF180Q Hersteller : E-Switch TL9210.pdf Description: SWITCH TACTILE SPST-NO 0.05A 12V
Packaging: Tape & Reel (TR)
Mounting Type: Surface Mount
Circuit: SPST-NO
Switch Function: Off-Mom
Operating Temperature: -20°C ~ 70°C
Termination Style: J Lead
Illumination: Non-Illuminated
Contact Rating @ Voltage: 0.05A @ 12VDC
Actuator Type: Round Button
Operating Force: 180gf
Outline: 6.00mm x 6.00mm
Actuator Height off PCB, Vertical: 5.00mm
Actuator Orientation: Top Actuated
auf Bestellung 2000 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
2000+0.62 EUR
Mindestbestellmenge: 2000
Im Einkaufswagen  Stück im Wert von  UAH
TL9210AF180Q TL9210AF180Q Hersteller : E-Switch TL9210AF180Q-3459481.pdf Tactile Switches 180gF SPST LngTravel 50mA 12VDC 200gF
auf Bestellung 2665 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
4+0.86 EUR
10+0.79 EUR
25+0.76 EUR
100+0.7 EUR
250+0.66 EUR
500+0.63 EUR
1000+0.61 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
TL9210AF180Q TL9210AF180Q Hersteller : E-Switch TL9210.pdf Description: SWITCH TACTILE SPST-NO 0.05A 12V
Packaging: Cut Tape (CT)
Mounting Type: Surface Mount
Circuit: SPST-NO
Switch Function: Off-Mom
Operating Temperature: -20°C ~ 70°C
Termination Style: J Lead
Illumination: Non-Illuminated
Contact Rating @ Voltage: 0.05A @ 12VDC
Actuator Type: Round Button
Operating Force: 180gf
Outline: 6.00mm x 6.00mm
Actuator Height off PCB, Vertical: 5.00mm
Actuator Orientation: Top Actuated
auf Bestellung 3881 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
15+1.25 EUR
18+1.02 EUR
25+0.94 EUR
100+0.83 EUR
250+0.76 EUR
500+0.71 EUR
1000+0.67 EUR
Mindestbestellmenge: 15
Im Einkaufswagen  Stück im Wert von  UAH
