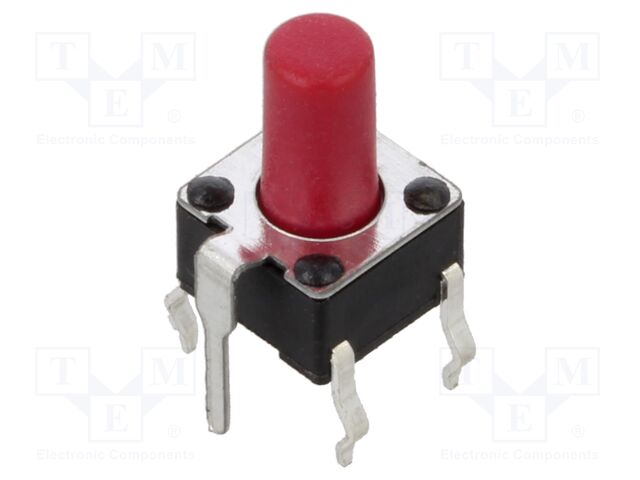

TLE1105BF250Q E-Switch
Hersteller: E-Switch
Description: SWITCH TACTILE SPST-NO 0.05A 12V
Termination Style: PC Pin
Operating Temperature: -20°C ~ 70°C
Switch Function: Off-Mom
Circuit: SPST-NO
Mounting Type: Through Hole
Features: Grounding Pin
Packaging: Bulk
Actuator Orientation: Top Actuated
Actuator Height off PCB, Vertical: 9.50mm
Outline: 6.00mm x 6.00mm
Operating Force: 250gf
Actuator Type: Standard
Contact Rating @ Voltage: 0.05A @ 12VDC
Illumination: Non-Illuminated
| Anzahl | Privatkunde |
|---|---|
| 27+ | 0.8 EUR |
| 28+ | 0.76 EUR |
| 30+ | 0.71 EUR |
| 100+ | 0.62 EUR |
| 250+ | 0.56 EUR |
| 500+ | 0.52 EUR |
| 1000+ | 0.48 EUR |
| 2500+ | 0.44 EUR |
| 5000+ | 0.42 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TLE1105BF250Q E-Switch
Category: Microswitches TACT, Description: Microswitch TACT; SPST; Pos: 2; 0.05A/12VDC; SMD; none; 2.45N; 9.5mm, Type of switch: microswitch TACT, Contacts configuration: SPST, Number of positions: 2, Stable positions number: 1, DC contacts rating @R: 50mA / 12V DC, Mounting: SMD, Illumination: none, Body dimensions: 6x6x3.6mm, Button height: 9.5mm, Switching method: OFF-(ON), Operating temperature: -40...85°C, Leads: flat pin, Max. contact resistance:: 100mΩ, Button shape: round, Key stroke: 0.25mm, Terminal pitch: 4.5mm, Operating Force: 2.45N, Mechanical durability: 100000 cycles, Actuator colour: red.
Weitere Produktangebote TLE1105BF250Q
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
TLE1105BF250Q | E-Switch |
Tactile Switches 50mA 12VDC SPST |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 5 Stücke Im Einkaufswagen Stück im Wert von UAH |
 |
TLE1105BF250Q | E-SWITCH |
Category: Microswitches TACT Description: Microswitch TACT; SPST; Pos: 2; 0.05A/12VDC; SMD; none; 2.45N; 9.5mm Type of switch: microswitch TACT Contacts configuration: SPST Number of positions: 2 Stable positions number: 1 DC contacts rating @R: 50mA / 12V DC Mounting: SMD Illumination: none Body dimensions: 6x6x3.6mm Button height: 9.5mm Switching method: OFF-(ON) Operating temperature: -40...85°C Leads: flat pin Max. contact resistance:: 100mΩ Button shape: round Key stroke: 0.25mm Terminal pitch: 4.5mm Operating Force: 2.45N Mechanical durability: 100000 cycles Actuator colour: red |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 5 Stücke Im Einkaufswagen Stück im Wert von UAH |
 |
TLE1105BF250Q | E-SWITCH |
Description: E-SWITCH - TLE1105BF250Q - TACT SW, SPST-NO-DB, 0.05A, 12V, SOLDER Betätigerausrichtung: Top Actuated Schaltermontage: Through Hole Schaltleistung: 50mA at 12VDC IP-Schutzart: - Betätigungskraft: 250 Betätiger: Round Button Schalterabmessungen (L x B): 6mm x 6mm Beleuchtung: Non Illuminated Produktpalette: TLE1105 Series SVHC: No SVHC (27-Jun-2018) |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 7500 Stücke Im Einkaufswagen Stück im Wert von UAH |
| TLE1105BF250Q |
|
Hersteller: E-Switch
Tactile Switches 50mA 12VDC SPST
Tactile Switches 50mA 12VDC SPST
Produkt ist nicht verfügbar
Mindestbestellmenge: 5 Stücke
Im Einkaufswagen
Stück im Wert von UAH
| TLE1105BF250Q |
|
Hersteller: E-SWITCH
Category: Microswitches TACT
Description: Microswitch TACT; SPST; Pos: 2; 0.05A/12VDC; SMD; none; 2.45N; 9.5mm
Type of switch: microswitch TACT
Contacts configuration: SPST
Number of positions: 2
Stable positions number: 1
DC contacts rating @R: 50mA / 12V DC
Mounting: SMD
Illumination: none
Body dimensions: 6x6x3.6mm
Button height: 9.5mm
Switching method: OFF-(ON)
Operating temperature: -40...85°C
Leads: flat pin
Max. contact resistance:: 100mΩ
Button shape: round
Key stroke: 0.25mm
Terminal pitch: 4.5mm
Operating Force: 2.45N
Mechanical durability: 100000 cycles
Actuator colour: red
Category: Microswitches TACT
Description: Microswitch TACT; SPST; Pos: 2; 0.05A/12VDC; SMD; none; 2.45N; 9.5mm
Type of switch: microswitch TACT
Contacts configuration: SPST
Number of positions: 2
Stable positions number: 1
DC contacts rating @R: 50mA / 12V DC
Mounting: SMD
Illumination: none
Body dimensions: 6x6x3.6mm
Button height: 9.5mm
Switching method: OFF-(ON)
Operating temperature: -40...85°C
Leads: flat pin
Max. contact resistance:: 100mΩ
Button shape: round
Key stroke: 0.25mm
Terminal pitch: 4.5mm
Operating Force: 2.45N
Mechanical durability: 100000 cycles
Actuator colour: red
Produkt ist nicht verfügbar
Mindestbestellmenge: 5 Stücke
Im Einkaufswagen
Stück im Wert von UAH
| TLE1105BF250Q |
|
Hersteller: E-SWITCH
Description: E-SWITCH - TLE1105BF250Q - TACT SW, SPST-NO-DB, 0.05A, 12V, SOLDER
Betätigerausrichtung: Top Actuated
Schaltermontage: Through Hole
Schaltleistung: 50mA at 12VDC
IP-Schutzart: -
Betätigungskraft: 250
Betätiger: Round Button
Schalterabmessungen (L x B): 6mm x 6mm
Beleuchtung: Non Illuminated
Produktpalette: TLE1105 Series
SVHC: No SVHC (27-Jun-2018)
Description: E-SWITCH - TLE1105BF250Q - TACT SW, SPST-NO-DB, 0.05A, 12V, SOLDER
Betätigerausrichtung: Top Actuated
Schaltermontage: Through Hole
Schaltleistung: 50mA at 12VDC
IP-Schutzart: -
Betätigungskraft: 250
Betätiger: Round Button
Schalterabmessungen (L x B): 6mm x 6mm
Beleuchtung: Non Illuminated
Produktpalette: TLE1105 Series
SVHC: No SVHC (27-Jun-2018)
Produkt ist nicht verfügbar
Mindestbestellmenge: 7500 Stücke
Im Einkaufswagen
Stück im Wert von UAH
