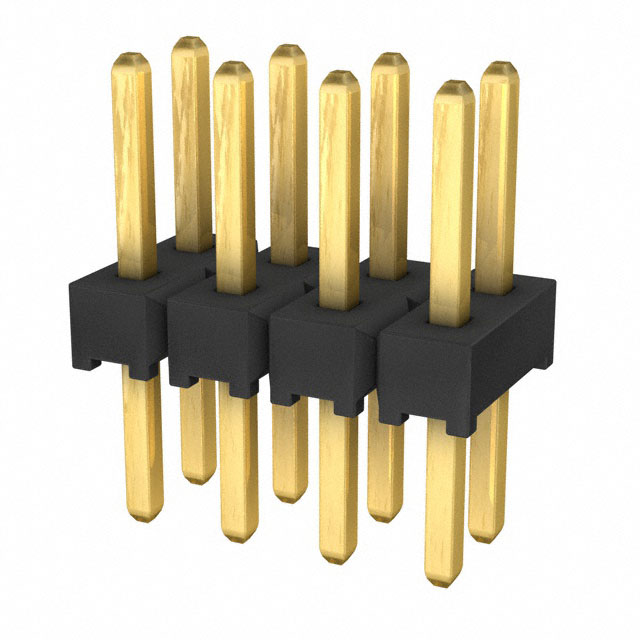

TMM-104-02-G-D Samtec Inc.
Hersteller: Samtec Inc.
Description: CONN HEADER VERT 8POS 2MM
Current Rating (Amps): 3.2A per Contact
Connector Type: Header
Packaging: Bulk
Overall Contact Length: 0.323" (8.20mm)
Shrouding: Unshrouded
Insulation Height: 0.059" (1.50mm)
Contact Length - Post: 0.118" (3.00mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Gold
Contact Finish Thickness - Mating: 20.0µin (0.51µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.079" (2.00mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 8
Mounting Type: Through Hole
Contact Length - Mating: 0.146" (3.71mm)
Row Spacing - Mating: 0.079" (2.00mm)
Insulation Material: Liquid Crystal Polymer (LCP)
| Anzahl | Preis |
|---|---|
| 9+ | 2.02 EUR |
| 50+ | 1.65 EUR |
| 100+ | 1.34 EUR |
| 500+ | 1.09 EUR |
| 1000+ | 0.87 EUR |
| 2000+ | 0.76 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TMM-104-02-G-D Samtec Inc.
Description: CONN HEADER VERT 8POS 2MM, Current Rating (Amps): 3.2A per Contact, Connector Type: Header, Packaging: Bulk, Overall Contact Length: 0.323" (8.20mm), Shrouding: Unshrouded, Insulation Height: 0.059" (1.50mm), Contact Length - Post: 0.118" (3.00mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Gold, Contact Finish Thickness - Mating: 20.0µin (0.51µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.079" (2.00mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 8, Mounting Type: Through Hole, Contact Length - Mating: 0.146" (3.71mm), Row Spacing - Mating: 0.079" (2.00mm), Insulation Material: Liquid Crystal Polymer (LCP).
Weitere Produktangebote TMM-104-02-G-D nach Preis ab 1.02 EUR bis 2.04 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TMM-104-02-G-D | Samtec |
Headers & Wire Housings Low Profile Tiger Eye Header Strips, 2.00 mm Pitch |
auf Bestellung 17 Stücke: Lieferzeit 10-14 Tag (e) |
|
| TMM-104-02-G-D |
|
Hersteller: Samtec
Headers & Wire Housings Low Profile Tiger Eye Header Strips, 2.00 mm Pitch
Headers & Wire Housings Low Profile Tiger Eye Header Strips, 2.00 mm Pitch
auf Bestellung 17 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 2+ | 2.04 EUR |
| 50+ | 1.67 EUR |
| 100+ | 1.34 EUR |
| 500+ | 1.1 EUR |
| 1000+ | 1.02 EUR |
