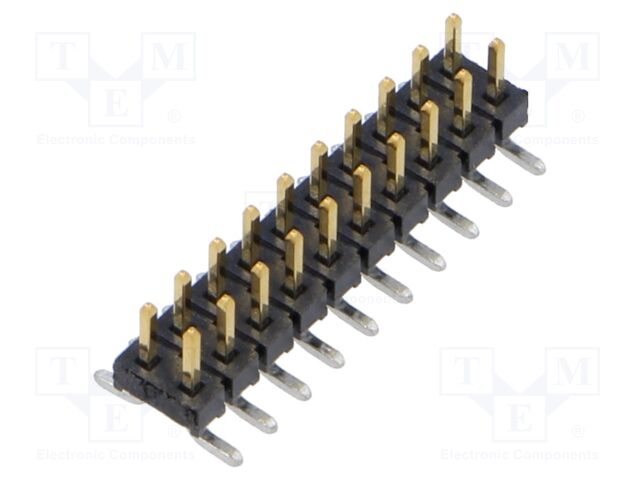

TMM-110-01-L-D-SM Samtec
| Anzahl | Preis |
|---|---|
| 1+ | 4.19 EUR |
| 58+ | 3.61 EUR |
| 116+ | 3.06 EUR |
| 522+ | 2.62 EUR |
| 1015+ | 2.43 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TMM-110-01-L-D-SM Samtec
Description: CONN HEADER SMD 20POS 2MM, Contact Length - Mating: 0.126" (3.20mm), Row Spacing - Mating: 0.079" (2.00mm), Insulation Material: Liquid Crystal Polymer (LCP), Shrouding: Unshrouded, Insulation Height: 0.059" (1.50mm), Contact Shape: Square, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.079" (2.00mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 20, Mounting Type: Surface Mount, Current Rating (Amps): 3.2A per Contact, Connector Type: Header, Packaging: Tube.
Weitere Produktangebote TMM-110-01-L-D-SM nach Preis ab 2.09 EUR bis 4.19 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TMM-110-01-L-D-SM | Samtec Inc. |
 Description: CONN HEADER SMD 20POS 2MMContact Length - Mating: 0.126" (3.20mm) Row Spacing - Mating: 0.079" (2.00mm) Insulation Material: Liquid Crystal Polymer (LCP) Shrouding: Unshrouded Insulation Height: 0.059" (1.50mm) Contact Shape: Square Contact Finish - Post: Tin Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Mating: Gold Pitch - Mating: 0.079" (2.00mm) Insulation Color: Black Contact Material: Phosphor Bronze Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All Fastening Type: Push-Pull Contact Type: Male Pin Operating Temperature: -55°C ~ 125°C Style: Board to Board or Cable Number of Rows: 2 Number of Positions: 20 Mounting Type: Surface Mount Current Rating (Amps): 3.2A per Contact Connector Type: Header Packaging: Tube |
auf Bestellung 1197 Stücke: Lieferzeit 10-14 Tag (e) |
|
| TMM-110-01-L-D-SM |
|
Hersteller: Samtec Inc.
Description: CONN HEADER SMD 20POS 2MM
Contact Length - Mating: 0.126" (3.20mm)
Row Spacing - Mating: 0.079" (2.00mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Unshrouded
Insulation Height: 0.059" (1.50mm)
Contact Shape: Square
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.079" (2.00mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 20
Mounting Type: Surface Mount
Current Rating (Amps): 3.2A per Contact
Connector Type: Header
Packaging: Tube
Description: CONN HEADER SMD 20POS 2MM
Contact Length - Mating: 0.126" (3.20mm)
Row Spacing - Mating: 0.079" (2.00mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Unshrouded
Insulation Height: 0.059" (1.50mm)
Contact Shape: Square
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.079" (2.00mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 20
Mounting Type: Surface Mount
Current Rating (Amps): 3.2A per Contact
Connector Type: Header
Packaging: Tube
auf Bestellung 1197 Stücke:
Lieferzeit 10-14 Tag (e)| Anzahl | Preis |
|---|---|
| 5+ | 4.19 EUR |
| 50+ | 3.61 EUR |
| 100+ | 3.06 EUR |
| 500+ | 2.62 EUR |
| 1000+ | 2.09 EUR |
