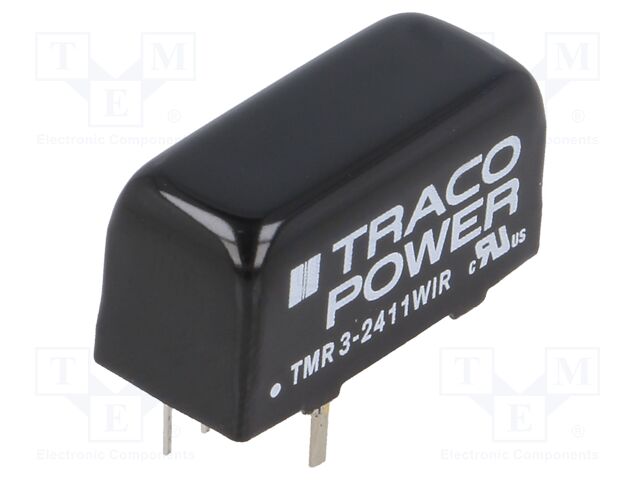

TMR 3-2411WIR TRACO POWER
Hersteller: TRACO POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 3W; Uin: 9÷36VDC; Uout: 5VDC; Iout: 600mA; SIP8; SMT
Type of converter: DC/DC
Power: 3W
Input voltage: 9...36V DC
Output voltage: 5V DC
Output current: 0.6A
Case: SIP8
Mounting: SMT
Manufacturer series: TMR 3WIR
Body dimensions: 21.8x11.2x9.6mm
Efficiency: 81%
Operating temperature: -40...90°C
Switching frequency: 400kHz
Protection: anti-overload OPP; short circuit protection SCP
Insulation voltage: 3kV
Number of outputs: 1
Application: railway industry
Conform to the norm: EN 50155
Produktrezensionen
Produktbewertung abgeben
Technische Details TMR 3-2411WIR TRACO POWER
Category: DC/DC Converters, Description: Converter: DC/DC; 3W; Uin: 9÷36VDC; Uout: 5VDC; Iout: 600mA; SIP8; SMT, Type of converter: DC/DC, Power: 3W, Input voltage: 9...36V DC, Output voltage: 5V DC, Output current: 0.6A, Case: SIP8, Mounting: SMT, Manufacturer series: TMR 3WIR, Body dimensions: 21.8x11.2x9.6mm, Efficiency: 81%, Operating temperature: -40...90°C, Switching frequency: 400kHz, Protection: anti-overload OPP; short circuit protection SCP, Insulation voltage: 3kV, Number of outputs: 1, Application: railway industry, Conform to the norm: EN 50155.
Weitere Produktangebote TMR 3-2411WIR nach Preis ab 35.64 EUR bis 41.13 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TMR 3-2411WIR | TRACO Power |
DC/DC Converters - SMD 3W 9-36Vin 5Vout 600mA SIP8 Iso Reg |
auf Bestellung 112 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
TMR 3-2411WIR | Traco Power |
Description: DC DC CONVERTER 5V 3W Voltage - Isolation: 3 kV Number of Outputs: 1 Power (Watts): 3 W Part Status: Active Voltage - Output 1: 5V Voltage - Input (Min): 9V Current - Output (Max): 600mA Efficiency: 81% Voltage - Input (Max): 36V Applications: ITE (Commercial), Railway Operating Temperature: -40°C ~ 90°C (With Derating) Type: Isolated Module Mounting Type: Through Hole Size / Dimension: 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) Package / Case: 8-SIP Module Features: Remote On/Off, SCP Packaging: Tube |
auf Bestellung 114 Stücke: Lieferzeit 10-14 Tag (e) |
|
| TMR 3-2411WIR |
|
Hersteller: TRACO Power
DC/DC Converters - SMD 3W 9-36Vin 5Vout 600mA SIP8 Iso Reg
DC/DC Converters - SMD 3W 9-36Vin 5Vout 600mA SIP8 Iso Reg
auf Bestellung 112 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 40.15 EUR |
| 10+ | 38.93 EUR |
| 20+ | 38.53 EUR |
| 50+ | 38.21 EUR |
| 100+ | 37.89 EUR |
| 200+ | 37.51 EUR |
| 500+ | 35.64 EUR |
| TMR 3-2411WIR |
|
Hersteller: Traco Power
Description: DC DC CONVERTER 5V 3W
Voltage - Isolation: 3 kV
Number of Outputs: 1
Power (Watts): 3 W
Part Status: Active
Voltage - Output 1: 5V
Voltage - Input (Min): 9V
Current - Output (Max): 600mA
Efficiency: 81%
Voltage - Input (Max): 36V
Applications: ITE (Commercial), Railway
Operating Temperature: -40°C ~ 90°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Package / Case: 8-SIP Module
Features: Remote On/Off, SCP
Packaging: Tube
Description: DC DC CONVERTER 5V 3W
Voltage - Isolation: 3 kV
Number of Outputs: 1
Power (Watts): 3 W
Part Status: Active
Voltage - Output 1: 5V
Voltage - Input (Min): 9V
Current - Output (Max): 600mA
Efficiency: 81%
Voltage - Input (Max): 36V
Applications: ITE (Commercial), Railway
Operating Temperature: -40°C ~ 90°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Package / Case: 8-SIP Module
Features: Remote On/Off, SCP
Packaging: Tube
auf Bestellung 114 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 41.13 EUR |
| 5+ | 39.6 EUR |
| 10+ | 38.96 EUR |
| 30+ | 37.97 EUR |
| 50+ | 37.51 EUR |
| 100+ | 36.9 EUR |
