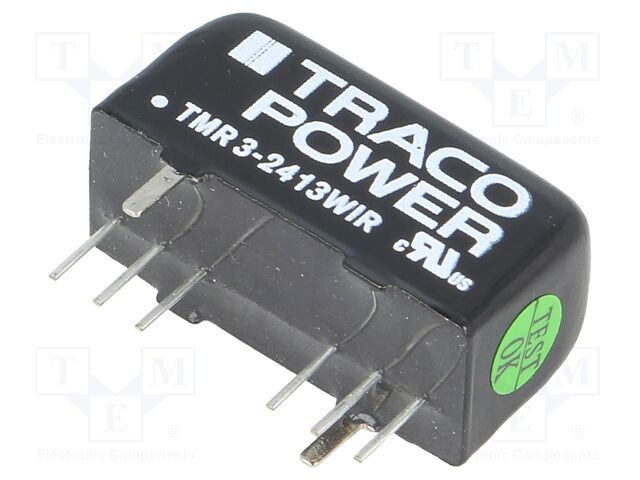

TMR 3-2413WIR TRACO POWER
Hersteller: TRACO POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 3W; Uin: 9÷36VDC; Uout: 15VDC; Iout: 200mA; SIP8
Operating temperature: -40...90°C
Mounting: SMT
Input voltage: 9...36V DC
Manufacturer series: TMR 3WIR
Switching frequency: 400kHz
Output current: 0.2A
Type of converter: DC/DC
Protection: anti-overload OPP; short circuit protection SCP
Body dimensions: 21.8x11.2x9.6mm
Efficiency: 83%
Application: railway industry
Insulation voltage: 3kV
Power: 3W
Output voltage: 15V DC
Case: SIP8
Conform to the norm: EN 50155
Number of outputs: 1
Produktrezensionen
Produktbewertung abgeben
Technische Details TMR 3-2413WIR TRACO POWER
Category: DC/DC Converters, Description: Converter: DC/DC; 3W; Uin: 9÷36VDC; Uout: 15VDC; Iout: 200mA; SIP8, Operating temperature: -40...90°C, Mounting: SMT, Input voltage: 9...36V DC, Manufacturer series: TMR 3WIR, Switching frequency: 400kHz, Output current: 0.2A, Type of converter: DC/DC, Protection: anti-overload OPP; short circuit protection SCP, Body dimensions: 21.8x11.2x9.6mm, Efficiency: 83%, Application: railway industry, Insulation voltage: 3kV, Power: 3W, Output voltage: 15V DC, Case: SIP8, Conform to the norm: EN 50155, Number of outputs: 1.
Weitere Produktangebote TMR 3-2413WIR nach Preis ab 41.55 EUR bis 50.04 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TMR 3-2413WIR | Traco Power |
Description: DC DC CONVERTER 15V 3W Features: Remote On/Off, SCP Packaging: Tube Package / Case: 8-SIP Module Size / Dimension: 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 90°C (With Derating) Applications: ITE (Commercial), Railway Voltage - Input (Max): 36V Efficiency: 83% Current - Output (Max): 200mA Voltage - Input (Min): 9V Voltage - Output 1: 15V Power (Watts): 3 W Number of Outputs: 1 Voltage - Isolation: 3 kV |
auf Bestellung 27 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
TMR 3-2413WIR | TRACO Power |
Isolated DC/DC Converters - SMD 3W 9-36Vin 15Vout 200mA SIP8 Iso Reg |
auf Bestellung 85 Stücke: Lieferzeit 10-14 Tag (e) |
|
| TMR 3-2413WIR |
|
Hersteller: Traco Power
Description: DC DC CONVERTER 15V 3W
Features: Remote On/Off, SCP
Packaging: Tube
Package / Case: 8-SIP Module
Size / Dimension: 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 90°C (With Derating)
Applications: ITE (Commercial), Railway
Voltage - Input (Max): 36V
Efficiency: 83%
Current - Output (Max): 200mA
Voltage - Input (Min): 9V
Voltage - Output 1: 15V
Power (Watts): 3 W
Number of Outputs: 1
Voltage - Isolation: 3 kV
Description: DC DC CONVERTER 15V 3W
Features: Remote On/Off, SCP
Packaging: Tube
Package / Case: 8-SIP Module
Size / Dimension: 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 90°C (With Derating)
Applications: ITE (Commercial), Railway
Voltage - Input (Max): 36V
Efficiency: 83%
Current - Output (Max): 200mA
Voltage - Input (Min): 9V
Voltage - Output 1: 15V
Power (Watts): 3 W
Number of Outputs: 1
Voltage - Isolation: 3 kV
auf Bestellung 27 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 49.66 EUR |
| 5+ | 49.22 EUR |
| 10+ | 48.78 EUR |
| TMR 3-2413WIR |
|
Hersteller: TRACO Power
Isolated DC/DC Converters - SMD 3W 9-36Vin 15Vout 200mA SIP8 Iso Reg
Isolated DC/DC Converters - SMD 3W 9-36Vin 15Vout 200mA SIP8 Iso Reg
auf Bestellung 85 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 50.04 EUR |
| 5+ | 49.66 EUR |
| 10+ | 49.27 EUR |
| 20+ | 48.5 EUR |
| 50+ | 46.18 EUR |
| 100+ | 42.35 EUR |
| 200+ | 41.55 EUR |
