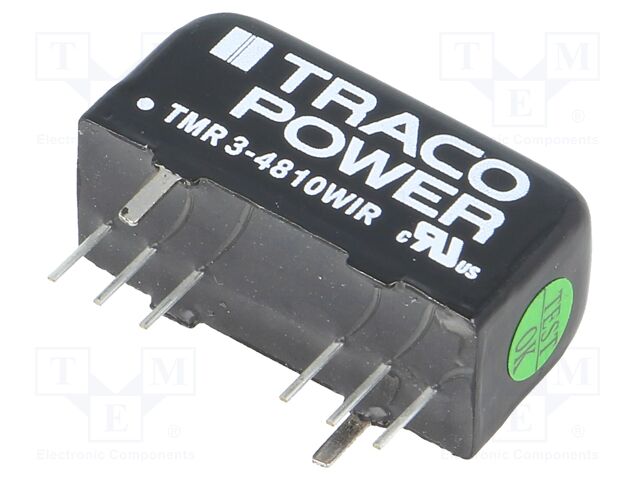

TMR 3-4810WIR TRACO POWER
Hersteller: TRACO POWERCategory: DC/DC Converters
Description: Converter: DC/DC; 3W; Uin: 18÷75VDC; Uout: 3.3VDC; Iout: 700mA; SIP8
Type of converter: DC/DC
Power: 3W
Input voltage: 18...75V DC
Output voltage: 3.3V DC
Output current: 0.7A
Case: SIP8
Manufacturer series: TMR 3WIR
Body dimensions: 21.8x11.2x9.6mm
Efficiency: 75%
Operating temperature: -40...90°C
Switching frequency: 400kHz
Protection: anti-overload OPP; short circuit protection SCP
Insulation voltage: 3kV
Number of outputs: 1
Application: railway industry
Conform to the norm: EN 50155
Anzahl je Verpackung: 1 Stücke
auf Bestellung 10 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 3+ | 27.2 EUR |
| 100+ | 25.65 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TMR 3-4810WIR TRACO POWER
Category: DC/DC Converters, Description: Converter: DC/DC; 3W; Uin: 18÷75VDC; Uout: 3.3VDC; Iout: 700mA; SIP8, Type of converter: DC/DC, Power: 3W, Input voltage: 18...75V DC, Output voltage: 3.3V DC, Output current: 0.7A, Case: SIP8, Manufacturer series: TMR 3WIR, Body dimensions: 21.8x11.2x9.6mm, Efficiency: 75%, Operating temperature: -40...90°C, Switching frequency: 400kHz, Protection: anti-overload OPP; short circuit protection SCP, Insulation voltage: 3kV, Number of outputs: 1, Application: railway industry, Conform to the norm: EN 50155, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote TMR 3-4810WIR nach Preis ab 27.2 EUR bis 44.83 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
TMR 3-4810WIR | Hersteller : TRACO POWER |
Category: DC/DC Converters Description: Converter: DC/DC; 3W; Uin: 18÷75VDC; Uout: 3.3VDC; Iout: 700mA; SIP8 Type of converter: DC/DC Power: 3W Input voltage: 18...75V DC Output voltage: 3.3V DC Output current: 0.7A Case: SIP8 Manufacturer series: TMR 3WIR Body dimensions: 21.8x11.2x9.6mm Efficiency: 75% Operating temperature: -40...90°C Switching frequency: 400kHz Protection: anti-overload OPP; short circuit protection SCP Insulation voltage: 3kV Number of outputs: 1 Application: railway industry Conform to the norm: EN 50155 |
auf Bestellung 10 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
 |
TMR 3-4810WIR | Hersteller : TRACO Power |
Isolated DC/DC Converters - SMD 3W 18-75Vin 3.3Vout 700mA SIP8 Iso Reg |
auf Bestellung 12 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
TMR 3-4810WIR | Hersteller : Traco Power |
Description: DC DC CONVERTER 3.3V 2.3W Features: Remote On/Off, SCP Packaging: Tube Package / Case: 8-SIP Module Size / Dimension: 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 90°C (With Derating) Applications: ITE (Commercial), Railway Voltage - Input (Max): 75V Efficiency: 75% Current - Output (Max): 700mA Voltage - Input (Min): 18V Voltage - Output 1: 3.3V Part Status: Active Power (Watts): 2.3 W Number of Outputs: 1 Voltage - Isolation: 3 kV |
auf Bestellung 18 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
TMR 3-4810WIR | Hersteller : Traco Power |
Module DC-DC 48VIN 1-OUT 3.3V 0.7A 3W 8-Pin SIP Module |
Produkt ist nicht verfügbar |
