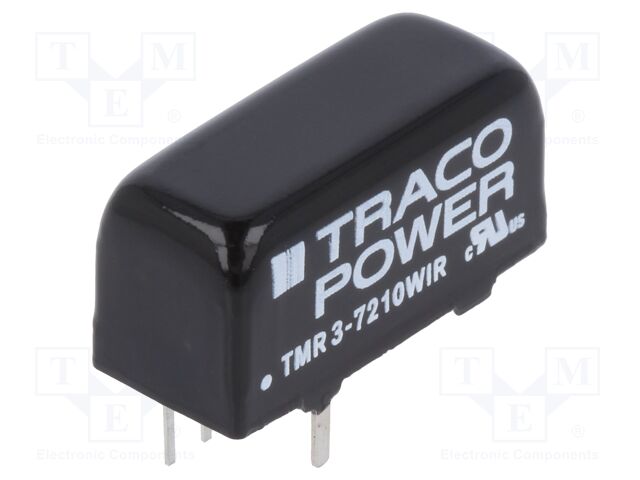

TMR 3-7210WIR TRACO POWER
Hersteller: TRACO POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 3W; Uin: 43÷160VDC; Uout: 3.3VDC; Iout: 700mA; SIP8
Type of converter: DC/DC
Power: 3W
Input voltage: 43...160V DC
Output voltage: 3.3V DC
Output current: 0.7A
Case: SIP8
Mounting: SMT
Manufacturer series: TMR 3WIR
Body dimensions: 21.8x11.2x9.6mm
Efficiency: 76%
Operating temperature: -40...90°C
Switching frequency: 300kHz
Protection: anti-overload OPP; short circuit protection SCP
Insulation voltage: 3kV
Number of outputs: 1
Application: railway industry
Conform to the norm: EN 50155
Produktrezensionen
Produktbewertung abgeben
Technische Details TMR 3-7210WIR TRACO POWER
Category: DC/DC Converters, Description: Converter: DC/DC; 3W; Uin: 43÷160VDC; Uout: 3.3VDC; Iout: 700mA; SIP8, Type of converter: DC/DC, Power: 3W, Input voltage: 43...160V DC, Output voltage: 3.3V DC, Output current: 0.7A, Case: SIP8, Mounting: SMT, Manufacturer series: TMR 3WIR, Body dimensions: 21.8x11.2x9.6mm, Efficiency: 76%, Operating temperature: -40...90°C, Switching frequency: 300kHz, Protection: anti-overload OPP; short circuit protection SCP, Insulation voltage: 3kV, Number of outputs: 1, Application: railway industry, Conform to the norm: EN 50155.
Weitere Produktangebote TMR 3-7210WIR nach Preis ab 40.65 EUR bis 54.85 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TMR 3-7210WIR | TRACO Power |
Isolated DC/DC Converters - SMD 3W 43-160Vin 3.3Vout 700mA SIP8 Iso Reg |
auf Bestellung 4 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
TMR 3-7210WIR | Traco Power |
Description: DC DC CONVERTER 3.3V 2.3W Voltage - Output 1: 3.3V Voltage - Input (Min): 43V Current - Output (Max): 700mA Efficiency: 76% Voltage - Input (Max): 160V Applications: ITE (Commercial), Railway Operating Temperature: -40°C ~ 90°C (With Derating) Type: Isolated Module Mounting Type: Through Hole Size / Dimension: 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) Package / Case: 8-SIP Module Voltage - Isolation: 3 kV Number of Outputs: 1 Power (Watts): 2.3 W Features: Remote On/Off, SCP Packaging: Tube |
auf Bestellung 22 Stücke: Lieferzeit 10-14 Tag (e) |
|
| TMR 3-7210WIR |
|
Hersteller: TRACO Power
Isolated DC/DC Converters - SMD 3W 43-160Vin 3.3Vout 700mA SIP8 Iso Reg
Isolated DC/DC Converters - SMD 3W 43-160Vin 3.3Vout 700mA SIP8 Iso Reg
auf Bestellung 4 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 52.78 EUR |
| 10+ | 50.49 EUR |
| 20+ | 49.72 EUR |
| 50+ | 47.35 EUR |
| 100+ | 43.41 EUR |
| 200+ | 42.63 EUR |
| 500+ | 40.65 EUR |
| TMR 3-7210WIR |
|
Hersteller: Traco Power
Description: DC DC CONVERTER 3.3V 2.3W
Voltage - Output 1: 3.3V
Voltage - Input (Min): 43V
Current - Output (Max): 700mA
Efficiency: 76%
Voltage - Input (Max): 160V
Applications: ITE (Commercial), Railway
Operating Temperature: -40°C ~ 90°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Package / Case: 8-SIP Module
Voltage - Isolation: 3 kV
Number of Outputs: 1
Power (Watts): 2.3 W
Features: Remote On/Off, SCP
Packaging: Tube
Description: DC DC CONVERTER 3.3V 2.3W
Voltage - Output 1: 3.3V
Voltage - Input (Min): 43V
Current - Output (Max): 700mA
Efficiency: 76%
Voltage - Input (Max): 160V
Applications: ITE (Commercial), Railway
Operating Temperature: -40°C ~ 90°C (With Derating)
Type: Isolated Module
Mounting Type: Through Hole
Size / Dimension: 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm)
Package / Case: 8-SIP Module
Voltage - Isolation: 3 kV
Number of Outputs: 1
Power (Watts): 2.3 W
Features: Remote On/Off, SCP
Packaging: Tube
auf Bestellung 22 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 54.85 EUR |
| 5+ | 52.86 EUR |
| 10+ | 50.87 EUR |
