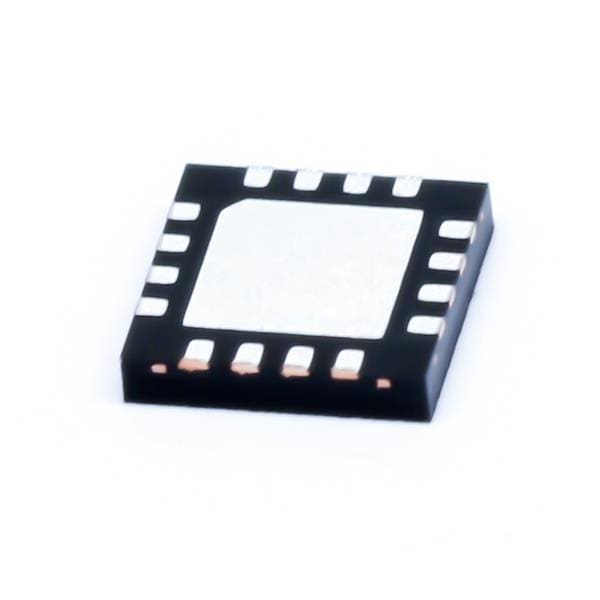

TMUX7236RUMR Texas Instruments
Hersteller: Texas Instruments
Analogue Switch ICs 44V, low-RON, 2:1 (SPDT) two-channel precision switch with latch-up immunity and 1.8V logic 16-WQFN -40 to 125
| Anzahl | Preis |
|---|---|
| 1+ | 9.43 EUR |
| 10+ | 6.67 EUR |
| 100+ | 6.05 EUR |
| 250+ | 5.77 EUR |
| 500+ | 5.6 EUR |
| 1000+ | 5.46 EUR |
| 3000+ | 5.1 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TMUX7236RUMR Texas Instruments
Description: IC SW SPDT-NO/NCX2 2.4OHM 16WQFN, Charge Injection: 104pC, Voltage - Supply, Single (V+): 4.5V ~ 44V, Supplier Device Package: 16-WQFN (4x4), -3db Bandwidth: 35MHz, On-State Resistance (Max): 2.4Ohm, Operating Temperature: -40°C ~ 125°C (TA), Mounting Type: Surface Mount, Package / Case: 16-WQFN Exposed Pad, Packaging: Tape & Reel (TR), Number of Circuits: 2, Part Status: Active, Current - Leakage (IS(off)) (Max): 1nA, Channel Capacitance (CS(off), CD(off)): 45pF, 55pF, Switch Time (Ton, Toff) (Max): 130ns, 160ns, Channel-to-Channel Matching (ΔRon): 100mOhm (Typ), Multiplexer/Demultiplexer Circuit: 2:1, Switch Circuit: SPDT - NO/NC.
Weitere Produktangebote TMUX7236RUMR nach Preis ab 5.58 EUR bis 9.66 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TMUX7236RUMR | Texas Instruments |
Description: IC SW SPDT-NO/NCX2 2.4OHM 16WQFN Number of Circuits: 2 Part Status: Active Current - Leakage (IS(off)) (Max): 1nA Channel Capacitance (CS(off), CD(off)): 45pF, 55pF Switch Time (Ton, Toff) (Max): 130ns, 160ns Channel-to-Channel Matching (ΔRon): 100mOhm (Typ) Multiplexer/Demultiplexer Circuit: 2:1 Switch Circuit: SPDT - NO/NC Charge Injection: 104pC Voltage - Supply, Single (V+): 4.5V ~ 44V Supplier Device Package: 16-WQFN (4x4) -3db Bandwidth: 35MHz On-State Resistance (Max): 2.4Ohm Operating Temperature: -40°C ~ 125°C (TA) Mounting Type: Surface Mount Package / Case: 16-WQFN Exposed Pad Packaging: Cut Tape (CT) |
auf Bestellung 2577 Stücke: Lieferzeit 10-14 Tag (e) |
|
| TMUX7236RUMR |
|
Hersteller: Texas Instruments
Description: IC SW SPDT-NO/NCX2 2.4OHM 16WQFN
Number of Circuits: 2
Part Status: Active
Current - Leakage (IS(off)) (Max): 1nA
Channel Capacitance (CS(off), CD(off)): 45pF, 55pF
Switch Time (Ton, Toff) (Max): 130ns, 160ns
Channel-to-Channel Matching (ΔRon): 100mOhm (Typ)
Multiplexer/Demultiplexer Circuit: 2:1
Switch Circuit: SPDT - NO/NC
Charge Injection: 104pC
Voltage - Supply, Single (V+): 4.5V ~ 44V
Supplier Device Package: 16-WQFN (4x4)
-3db Bandwidth: 35MHz
On-State Resistance (Max): 2.4Ohm
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 16-WQFN Exposed Pad
Packaging: Cut Tape (CT)
Description: IC SW SPDT-NO/NCX2 2.4OHM 16WQFN
Number of Circuits: 2
Part Status: Active
Current - Leakage (IS(off)) (Max): 1nA
Channel Capacitance (CS(off), CD(off)): 45pF, 55pF
Switch Time (Ton, Toff) (Max): 130ns, 160ns
Channel-to-Channel Matching (ΔRon): 100mOhm (Typ)
Multiplexer/Demultiplexer Circuit: 2:1
Switch Circuit: SPDT - NO/NC
Charge Injection: 104pC
Voltage - Supply, Single (V+): 4.5V ~ 44V
Supplier Device Package: 16-WQFN (4x4)
-3db Bandwidth: 35MHz
On-State Resistance (Max): 2.4Ohm
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount
Package / Case: 16-WQFN Exposed Pad
Packaging: Cut Tape (CT)
auf Bestellung 2577 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 2+ | 9.66 EUR |
| 10+ | 7.4 EUR |
| 25+ | 6.83 EUR |
| 100+ | 6.21 EUR |
| 250+ | 5.91 EUR |
| 500+ | 5.73 EUR |
| 1000+ | 5.58 EUR |
