Produkte > TRACO POWER > TMV 0512D

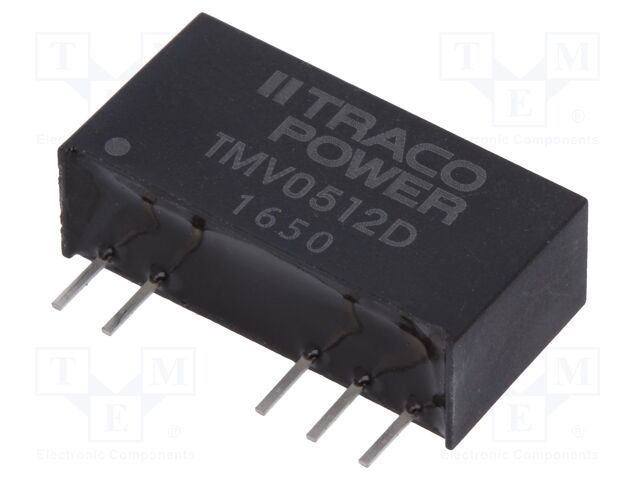

TMV 0512D

TMV 0512D TRACO POWER


pVersion=0046&contRep=ZT&docId=005056AB752F1EE78ACE918DA07EE745&compId=tmv-datasheet.pdf?ci_sign=f9cf26b5f6666b4e67a21dbbff6583bbe5775d72 Hersteller: TRACO POWER
Category: DC/DC Converters
Description: Converter: DC/DC; 1W; Uin: 4.5÷5.5VDC; Uout: 12VDC; Uout2: -12VDC
Manufacturer series: TMV
Body dimensions: 19.5x10.2x7.1mm
Operating temperature: -40...85°C
Output voltage: 12V DC
Output current: 40mA
Insulation voltage: 3kV
Input voltage: 4.5...5.5V DC
Type of converter: DC/DC
Output voltage 2: -12V DC
Efficiency: 78%
Switching frequency: 100kHz
Protection: short circuit protection SCP
Output current 2: 40mA
Case: SIP7
Power: 1W
Number of outputs: 2
Anzahl je Verpackung: 1 Stücke
auf Bestellung 55 Stücke:

Lieferzeit 7-14 Tag (e)
Anzahl Preis
10+7.62 EUR
12+6.02 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details TMV 0512D TRACO POWER

Description: DC DC CONVERTER +/-12V 960MW, Packaging: Tube, Features: SCP, Package / Case: 7-SIP Module, 5 Leads, Size / Dimension: 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm), Mounting Type: Through Hole, Type: Isolated Module, Operating Temperature: -40°C ~ 85°C (With Derating), Applications: ITE (Commercial), Voltage - Input (Max): 5.5V, Efficiency: 72%, Current - Output (Max): 40mA, 40mA, Voltage - Input (Min): 5V, Voltage - Output 1: 12V, Voltage - Output 2: -12V, Part Status: Active, Power (Watts): 960 mW, Number of Outputs: 2, Voltage - Isolation: 3 kV.

Weitere Produktangebote TMV 0512D nach Preis ab 4.77 EUR bis 10.7 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
TMV 0512D TMV 0512D Hersteller : TRACO POWER pVersion=0046&contRep=ZT&docId=005056AB752F1EE78ACE918DA07EE745&compId=tmv-datasheet.pdf?ci_sign=f9cf26b5f6666b4e67a21dbbff6583bbe5775d72 Category: DC/DC Converters
Description: Converter: DC/DC; 1W; Uin: 4.5÷5.5VDC; Uout: 12VDC; Uout2: -12VDC
Manufacturer series: TMV
Body dimensions: 19.5x10.2x7.1mm
Operating temperature: -40...85°C
Output voltage: 12V DC
Output current: 40mA
Insulation voltage: 3kV
Input voltage: 4.5...5.5V DC
Type of converter: DC/DC
Output voltage 2: -12V DC
Efficiency: 78%
Switching frequency: 100kHz
Protection: short circuit protection SCP
Output current 2: 40mA
Case: SIP7
Power: 1W
Number of outputs: 2
auf Bestellung 55 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
10+7.62 EUR
12+6.02 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
TMV 0512D TMV 0512D Hersteller : Traco Power tmvdatasheet.pdf Module DC-DC 5VIN 2-OUT -12V/12V 0.042A/0.042A 1W 5-Pin SIP
auf Bestellung 3936 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
16+9.35 EUR
17+8.46 EUR
19+7.33 EUR
20+6.52 EUR
50+5.76 EUR
100+5.16 EUR
250+4.77 EUR
Mindestbestellmenge: 16
Im Einkaufswagen  Stück im Wert von  UAH
TMV 0512D TMV 0512D Hersteller : Traco Power tmv.pdf Description: DC DC CONVERTER +/-12V 960MW
Packaging: Tube
Features: SCP
Package / Case: 7-SIP Module, 5 Leads
Size / Dimension: 0.77" L x 0.24" W x 0.40" H (19.5mm x 6.1mm x 10.2mm)
Mounting Type: Through Hole
Type: Isolated Module
Operating Temperature: -40°C ~ 85°C (With Derating)
Applications: ITE (Commercial)
Voltage - Input (Max): 5.5V
Efficiency: 72%
Current - Output (Max): 40mA, 40mA
Voltage - Input (Min): 5V
Voltage - Output 1: 12V
Voltage - Output 2: -12V
Part Status: Active
Power (Watts): 960 mW
Number of Outputs: 2
Voltage - Isolation: 3 kV
auf Bestellung 143 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
2+9.91 EUR
10+9.21 EUR
25+9.01 EUR
50+8.87 EUR
100+8.72 EUR
Mindestbestellmenge: 2
Im Einkaufswagen  Stück im Wert von  UAH
TMV 0512D TMV 0512D Hersteller : TRACO Power tmv_datasheet-3049875.pdf Isolated DC/DC Converters - Through Hole 1W 4.5-5.5Vin 12V 42mA, -12V 42mA SIP Unregulated
auf Bestellung 21 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+10.7 EUR
10+9.22 EUR
20+8.98 EUR
50+8.45 EUR
100+8.18 EUR
200+7.9 EUR
500+7.88 EUR
Im Einkaufswagen  Stück im Wert von  UAH
TMV 0512D TMV 0512D Hersteller : Traco Power tmv-datasheet.pdf Module DC-DC 5VIN 2-OUT 12V/-12V 0.04A/-0.04A 1W 5-Pin SIP
auf Bestellung 2263 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
TMV 0512D TMV 0512D Hersteller : Traco Power tmvdatasheet.pdf Module DC-DC 5VIN 2-OUT -12V/12V 0.042A/0.042A 1W 5-Pin SIP
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
TMV0512D
auf Bestellung 200 Stücke:
Lieferzeit 21-28 Tag (e)
Im Einkaufswagen  Stück im Wert von  UAH
