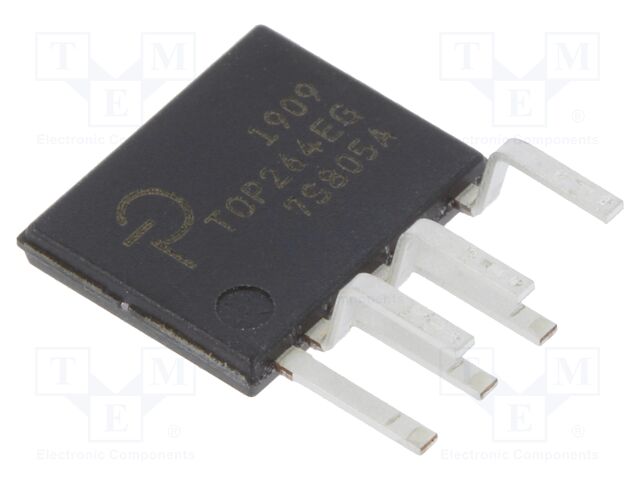

TOP264EG

Hersteller: POWER INTEGRATIONS
Category: Voltage regulators - PWM circuits
Description: IC: PMIC; AC/DC switcher,SMPS controller; 2.08A; 59.4÷145kHz
Type of integrated circuit: PMIC
Kind of integrated circuit: AC/DC switcher; SMPS controller
Output current: 2.08A
Frequency: 59.4...145kHz
Case: eSIP-7C
Mounting: THT
Operating temperature: -40...150°C
Topology: flyback
Input voltage: 85...265V
Breakdown voltage: 725V
On-state resistance: 8.35Ω
Manufacturer series: TopSwitch-JX

Hersteller: Power Integrations
AC/DC Converters Int Of-Ln Sw EcoSmrt 43W/62W

Hersteller: Power Integrations
Description: IC OFFLINE SWITCH FLYBACK 7ESIP
Packaging: Tube
Package / Case: 7-SSIP, 6 Leads, Exposed Pad, Formed Leads
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 150°C (TJ)
Duty Cycle: 78%
Frequency - Switching: 66kHz, 132kHz
Internal Switch(s): Yes
Voltage - Breakdown: 725V
Output Isolation: Isolated
Topology: Flyback
Supplier Device Package: eSIP-7C
Fault Protection: Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Control Features: Frequency Control
Part Status: Active
Power (Watts): 62 W

Hersteller: POWER INTEGRATIONS
Description: POWER INTEGRATIONS - TOP264EG - IC, AC/DC-Wandler, Baureihe TOPSwitch-JX, Flyback, 85V AC bis 265V AC, 62W, SIP-7
tariffCode: 85423990
Schaltfrequenz: 132kHz
euEccn: NLR
rohsCompliant: YES
IC-Montage: Durchsteckmontage
hazardous: false
rohsPhthalatesCompliant: YES
Nennspannung Leistungsschalter: 725V
Qualifikation: -
isCanonical: Y
IC-Gehäuse / Bauform: SIP
Maximale Nennleistung: 62W
Betriebstemperatur, min.: -40°C
Eingangsspannung, max.: 265VAC
SVHC: No SVHC (21-Jan-2025)
Eingangsspannung, min.: 85VAC
Topologie: Flyback
Anzahl der Pins: 7Pin(s)
Produktpalette: TOPSwitch-JX Series
productTraceability: No
usEccn: EAR99
Betriebstemperatur, max.: 150°C
Isolation: Isoliert
Nennstrom Leistungsschalter: 1.4mA
