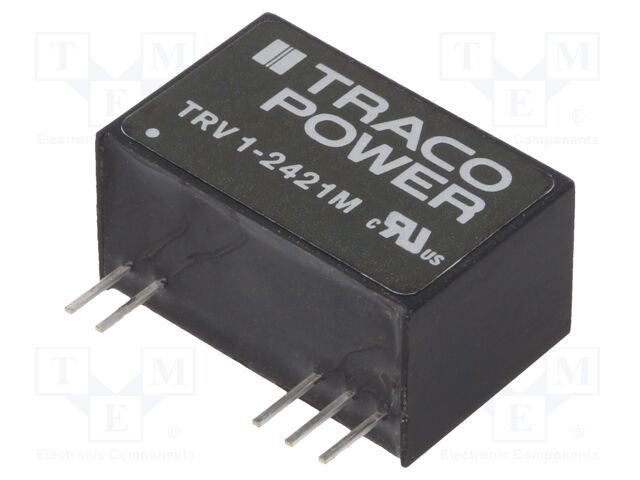

TRV 1-2421M TRACO POWER
Hersteller: TRACO POWERCategory: DC/DC Converters
Description: Converter: DC/DC; 1W; Uin: 19.2÷28.8VDC; Uout: 15VDC; Uout2: -5VDC
Type of converter: DC/DC
Power: 1W
Input voltage: 19.2...28.8V DC
Output voltage: 15V DC
Output current: 0.1A
Case: SIP9
Mounting: PCB

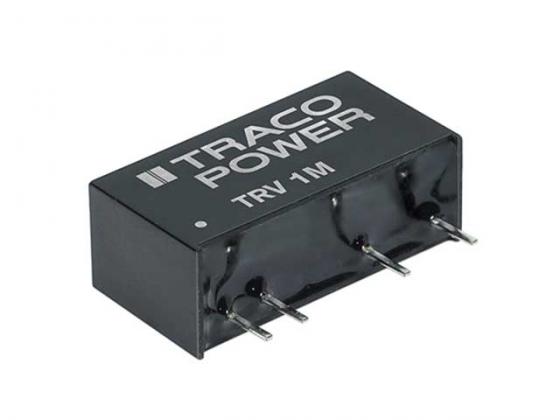

Manufacturer series: TRV 1M
Body dimensions: 19.6x12.5x9.9mm
Efficiency: 80%
Operating temperature: -40...85°C
Protection: short circuit protection SCP
Insulation voltage: 5kV
Number of outputs: 2
Output voltage 2: -5V DC
Switching frequency: 300kHz
Output current 2: 0.1A
auf Bestellung 4 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 4+ | 17.88 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details TRV 1-2421M TRACO POWER
Description: DC DC CONVERTER +/-5V 1W, Packaging: Tube, Package / Case: 9-SIP Module, 5 Leads, Size / Dimension: 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm), Mounting Type: Through Hole, Type: Isolated Module, Operating Temperature: -40°C ~ 85°C, Applications: ITE (Commercial), Medical, Voltage - Input (Max): 28.8V, Approval Agency: CB, cURus, Efficiency: 80%, Current - Output (Max): 100mA, 100mA, Voltage - Input (Min): 19.2V, Voltage - Output 1: 5V, Voltage - Output 2: -5V, Part Status: Active, Power (Watts): 1 W, Number of Outputs: 2, Voltage - Isolation: 5 kV.
Weitere Produktangebote TRV 1-2421M nach Preis ab 20.89 EUR bis 25.59 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TRV 1-2421M | Hersteller : TRACO Power |
Isolated DC/DC Converters - Through Hole 19.2-28.8Vin +/-5V 1W 100mA SIP Iso |
auf Bestellung 5 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
| TRV 1-2421M | Hersteller : Traco Power |
Description: DC DC CONVERTER +/-5V 1W Packaging: Tube Package / Case: 9-SIP Module, 5 Leads Size / Dimension: 0.77" L x 0.39" W x 0.49" H (19.6mm x 9.9mm x 12.5mm) Mounting Type: Through Hole Type: Isolated Module Operating Temperature: -40°C ~ 85°C Applications: ITE (Commercial), Medical Voltage - Input (Max): 28.8V Approval Agency: CB, cURus Efficiency: 80% Current - Output (Max): 100mA, 100mA Voltage - Input (Min): 19.2V Voltage - Output 1: 5V Voltage - Output 2: -5V Part Status: Active Power (Watts): 1 W Number of Outputs: 2 Voltage - Isolation: 5 kV |
Produkt ist nicht verfügbar |
