| Anzahl | Preis |
|---|---|
| 3+ | 1.17 EUR |
| 250+ | 1.05 EUR |
| 500+ | 0.93 EUR |
| 1000+ | 0.8 EUR |
| 2500+ | 0.72 EUR |
| 5000+ | 0.55 EUR |
Produktrezensionen
Produktbewertung abgeben

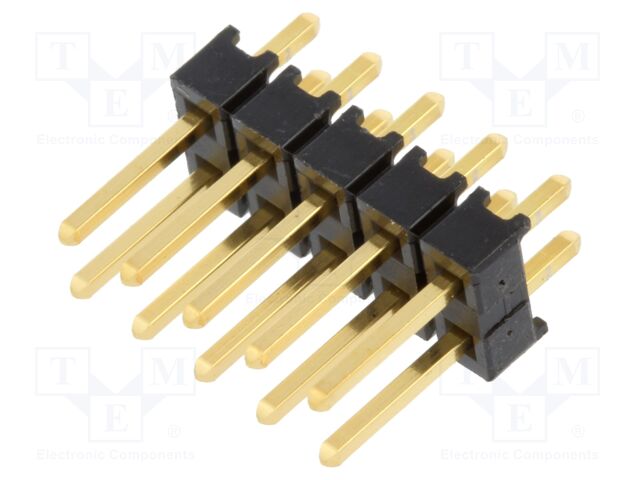

Technische Details TSW-105-07-G-D Samtec
Description: CONN HEADER VERT 10POS 2.54MM, Contact Length - Mating: 0.230" (5.84mm), Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Polybutylene Terephthalate (PBT), Overall Contact Length: 0.430" (10.92mm), Shrouding: Unshrouded, Insulation Height: 0.100" (2.54mm), Contact Length - Post: 0.100" (2.54mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 10, Mounting Type: Through Hole, Connector Type: Header, Packaging: Bulk.
Weitere Produktangebote TSW-105-07-G-D nach Preis ab 1.74 EUR bis 2.69 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TSW-105-07-G-D | Hersteller : Samtec Inc. |
 Description: CONN HEADER VERT 10POS 2.54MMContact Length - Mating: 0.230" (5.84mm) Row Spacing - Mating: 0.100" (2.54mm) Insulation Material: Polybutylene Terephthalate (PBT) Overall Contact Length: 0.430" (10.92mm) Shrouding: Unshrouded Insulation Height: 0.100" (2.54mm) Contact Length - Post: 0.100" (2.54mm) Contact Shape: Square Part Status: Active Contact Finish - Post: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Mating: Gold Pitch - Mating: 0.100" (2.54mm) Insulation Color: Black Contact Material: Phosphor Bronze Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All Fastening Type: Push-Pull Contact Type: Male Pin Operating Temperature: -55°C ~ 125°C Style: Board to Board or Cable Number of Rows: 2 Number of Positions: 10 Mounting Type: Through Hole Connector Type: Header Packaging: Bulk |
auf Bestellung 78762 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
TSW-105-07-G-D | Hersteller : SAMTEC |
Description: SAMTEC - TSW-105-07-G-D - Stiftleiste, Stiftleiste, Board-to-Board, 2.54 mm, 2 Reihe(n), 10 Kontakt(e), Durchsteckmontage tariffCode: 85366930 rohsCompliant: YES Kontaktüberzug: Vergoldete Kontakte hazardous: false rohsPhthalatesCompliant: YES Kontaktmaterial: Phosphorbronze isCanonical: Y usEccn: EAR99 Steckverbinderkragen: Ohne Kragen Anzahl der Kontakte: 10Kontakt(e) euEccn: NLR Steckverbindersysteme: Board-to-Board Steckverbinder: Stiftleiste Produktpalette: TSW productTraceability: No Kontaktanschluss: Durchsteckmontage Anzahl der Reihen: 2Reihe(n) Rastermaß: 2.54mm SVHC: No SVHC (04-Feb-2026) |
auf Bestellung 900 Stücke: Lieferzeit 14-21 Tag (e) |
