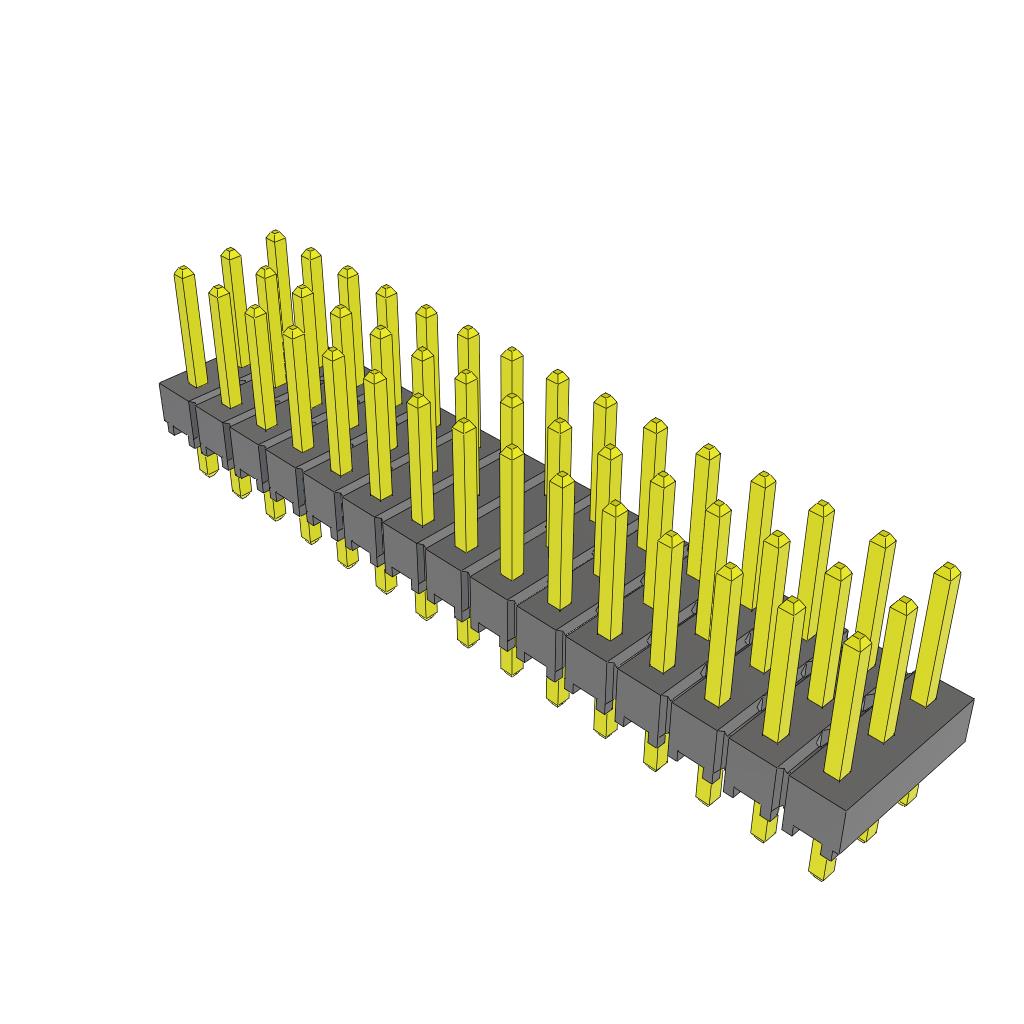

TSW-115-07-L-T Samtec Inc.

Description: CONN HDR .100" 45POS, Contact Length - Mating: 0.230" (5.84mm), Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Polybutylene Terephthalate (PBT), Overall Contact Length: 0.430" (10.92mm), Shrouding: Unshrouded, Insulation Height: 0.100" (2.54mm), Contact Length - Post: 0.100" (2.54mm), Contact Shape: Square, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board or Cable, Number of Rows: 3, Number of Positions: 45, Mounting Type: Through Hole, Connector Type: Header, Packaging: Bulk.
