Produkte > FERROXCUBE > TX25/15/10-3E27

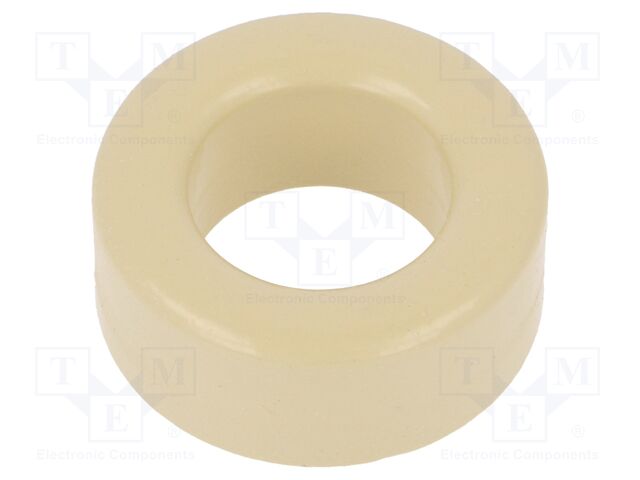

TX25/15/10-3E27

TX25/15/10-3E27 FERROXCUBE

pVersion=0046&contRep=ZT&docId=005056AB281E1FD09BD733C0EBCB80E1&compId=T_25_15_10.pdf?ci_sign=97bc375df30ec311668148dc71f17f64cf05a2d4 Hersteller: FERROXCUBE
Category: Ring ferrites
Description: Ferrite: toroidal; Øint: 14mm; Øout: 25.8mm; Core mat: 3E27; 5620nH
Type of ferrite: toroidal
Internal diameter: 14mm
Outside diameter: 25.8mm
Core material: 3E27
Ferrite features: rounded edges
Inductance factor Al: 5620nH
Height: 10.6mm
Design: plastic sheath
Effective core volume (Ve): 3740mm3
Effective core cross-section (Ae): 62.1mm2
Ferrite application: impulse transformers; RFI filters; wideband transformers
Anzahl je Verpackung: 1 Stücke
auf Bestellung 736 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
23+3.12 EUR
40+1.8 EUR
58+1.24 EUR
72+1.14 EUR
144+1.12 EUR
288+1.1 EUR
576+1.07 EUR
Mindestbestellmenge: 23
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details TX25/15/10-3E27 FERROXCUBE

Category: Ring ferrites, Description: Ferrite: toroidal; Øint: 14mm; Øout: 25.8mm; Core mat: 3E27; 5620nH, Type of ferrite: toroidal, Internal diameter: 14mm, Outside diameter: 25.8mm, Core material: 3E27, Ferrite features: rounded edges, Inductance factor Al: 5620nH, Height: 10.6mm, Design: plastic sheath, Effective core volume (Ve): 3740mm3, Effective core cross-section (Ae): 62.1mm2, Ferrite application: impulse transformers; RFI filters; wideband transformers, Anzahl je Verpackung: 1 Stücke.

Weitere Produktangebote TX25/15/10-3E27 nach Preis ab 1.07 EUR bis 3.43 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
TX25/15/10-3E27 TX25/15/10-3E27 Hersteller : FERROXCUBE pVersion=0046&contRep=ZT&docId=005056AB281E1FD09BD733C0EBCB80E1&compId=T_25_15_10.pdf?ci_sign=97bc375df30ec311668148dc71f17f64cf05a2d4 Category: Ring ferrites
Description: Ferrite: toroidal; Øint: 14mm; Øout: 25.8mm; Core mat: 3E27; 5620nH
Type of ferrite: toroidal
Internal diameter: 14mm
Outside diameter: 25.8mm
Core material: 3E27
Ferrite features: rounded edges
Inductance factor Al: 5620nH
Height: 10.6mm
Design: plastic sheath
Effective core volume (Ve): 3740mm3
Effective core cross-section (Ae): 62.1mm2
Ferrite application: impulse transformers; RFI filters; wideband transformers
auf Bestellung 736 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
23+3.12 EUR
40+1.8 EUR
58+1.24 EUR
72+1.14 EUR
144+1.12 EUR
288+1.1 EUR
576+1.07 EUR
Mindestbestellmenge: 23
Im Einkaufswagen  Stück im Wert von  UAH
TX25/15/10-3E27 TX25/15/10-3E27 Hersteller : Ferroxcube T_25_15_10.pdf Description: FERRITE CORE TOROID 3E+27
Tolerance: ±25%
Packaging: Bulk
Material: 3E27
Diameter: 1.007" (25.95mm)
Height: 0.429" (10.90mm)
Core Type: Toroid
Supplier Device Package: TX 25 x 15 x 10
Finish: Epoxy
Gap: Ungapped
Part Status: Active
Effective Permeability (µe): 5500.0
Core Factor (ΣI/A) mm⁻¹: 1.23
Effective Length (le) mm: 60.2
Effective Area (Ae) mm²: 48.9
Effective Magnetic Volume (Ve) mm³: 2944.0
auf Bestellung 640 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
6+3.43 EUR
10+2.37 EUR
25+2.02 EUR
50+1.78 EUR
100+1.56 EUR
288+1.25 EUR
576+1.22 EUR
Mindestbestellmenge: 6
Im Einkaufswagen  Stück im Wert von  UAH
