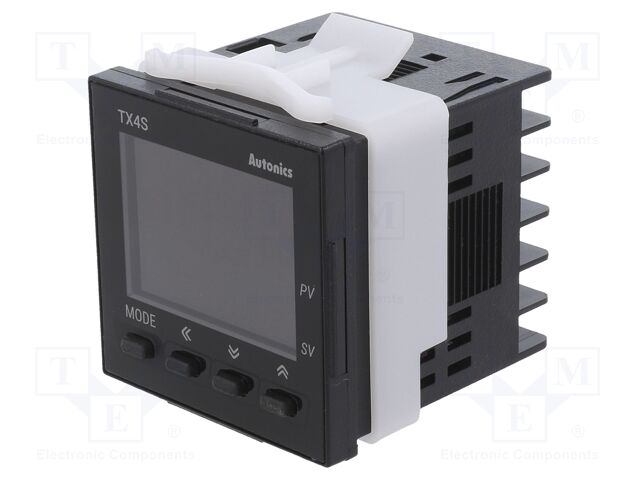

TX4S-14C

Hersteller: Autonics
Description: LCD PID TEMP CONTROL 100-240VAC
Features: Limit Function
Packaging: Box
Display Type: LED - Dual Color Characters
Output Type: Voltage (External SSR)
Mounting Type: Panel Mount
Type: Temperature Controller (RTD, Type J, K, L, R, S, T)
Termination Style: Screw Terminal
Voltage - Supply: 100 ~ 240VAC
Ingress Protection: IP50 - Dust Protected
Panel Cutout Dimensions: Square - 45.00mm x 45.00mm
Input Range: -100°C ~ 1700°C
Display Characters - Height: 0.551" (14.00mm), 0.299" (7.60mm)
Control Method: On/Off, Proportional (PID)
Number of Characters Per Row: 4, 4
Part Status: Active

Hersteller: AUTONICS
Category: Temperature Regulators
Description: Automation module: regulator; temperature; -1999÷9999; on panel
Supply voltage: 100...240V AC
Operating temperature: -10...50°C
Mounting: on panel
Kind of output 1: analogue; SSR
Mounting hole dimensions: 45x45mm
Manufacturer series: TX4S
Controlled parameter range: -1999...9999
Body dimensions: 48x48x51mm
Display height 1: 14mm
Kind of display used: LCD
Controlled parameter: temperature
Regulation for output 1: ON-OFF; P; PD; PI; PID
Output 2 electrical parameters: 250V AC / 3A
The programming method: foil keypad
Display 2 height: 7.6mm
Input 1 properties: RTD; thermocouple
Type of automation module: regulator
Kind of temperature sensor: Cu50; Pt100; thermocouple J; thermocouple K; thermocouple L; thermocouple R; thermocouple S; thermocouple T
IP rating: IP50
Output 1 electrical parameters: 0...20mA; 4...20mA; 12V DC / 20mA
Kind of output 2: alarm
