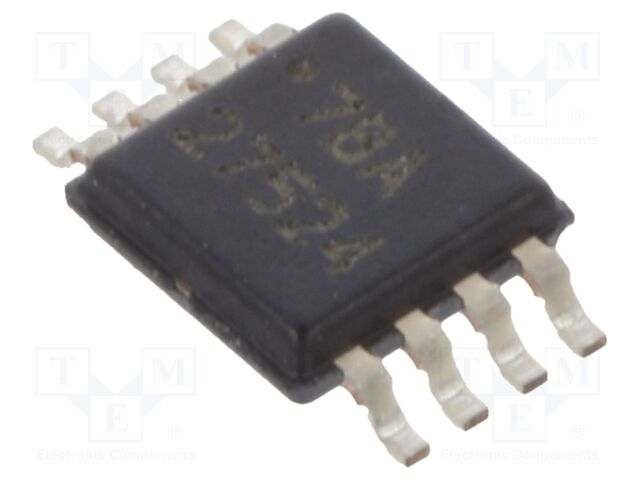

UCC27524DGN TEXAS INSTRUMENTS
Hersteller: TEXAS INSTRUMENTS
Category: MOSFET/IGBT drivers
Description: IC: driver; low-side,gate driver; HVSSOP8; -5÷5A; Ch: 2; 4.5÷18VDC
Type of integrated circuit: driver
Kind of integrated circuit: gate driver; low-side
Case: HVSSOP8
Output current: -5...5A
Number of channels: 2
Supply voltage: 4.5...18V DC
Mounting: SMD
Operating temperature: -40...140°C
Impulse rise time: 18ns
Pulse fall time: 10ns
Kind of package: tube
Kind of output: non-inverting
Protection: undervoltage UVP
Produktrezensionen
Produktbewertung abgeben
Technische Details UCC27524DGN TEXAS INSTRUMENTS
Description: IC GATE DRVR LOW-SIDE 8MSOP, Packaging: Tube, Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad, Mounting Type: Surface Mount, Operating Temperature: -40°C ~ 140°C (TJ), Voltage - Supply: 4.5V ~ 18V, Input Type: Non-Inverting, Supplier Device Package: 8-HVSSOP, Rise / Fall Time (Typ): 7ns, 6ns, Channel Type: Independent, Driven Configuration: Low-Side, Number of Drivers: 2, Gate Type: IGBT, MOSFET (N-Channel), Logic Voltage - VIL, VIH: 1V, 2.3V, Current - Peak Output (Source, Sink): 5A, 5A, Part Status: Active, DigiKey Programmable: Not Verified.
Weitere Produktangebote UCC27524DGN nach Preis ab 1.85 EUR bis 3.87 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Preis |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
UCC27524DGN | Texas Instruments |
Gate Drivers Dual 5A Hi-Spd Lo- S ide Pwr MOSFET Drvr A 595-UCC27524DGNR |
auf Bestellung 2314 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||
 |
UCC27524DGN | Texas Instruments |
Description: IC GATE DRVR LOW-SIDE 8MSOP Packaging: Tube Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad Mounting Type: Surface Mount Operating Temperature: -40°C ~ 140°C (TJ) Voltage - Supply: 4.5V ~ 18V Input Type: Non-Inverting Supplier Device Package: 8-HVSSOP Rise / Fall Time (Typ): 7ns, 6ns Channel Type: Independent Driven Configuration: Low-Side Number of Drivers: 2 Gate Type: IGBT, MOSFET (N-Channel) Logic Voltage - VIL, VIH: 1V, 2.3V Current - Peak Output (Source, Sink): 5A, 5A Part Status: Active DigiKey Programmable: Not Verified |
auf Bestellung 803 Stücke: Lieferzeit 10-14 Tag (e) |
|
| UCC27524DGN |
|
Hersteller: Texas Instruments
Gate Drivers Dual 5A Hi-Spd Lo- S ide Pwr MOSFET Drvr A 595-UCC27524DGNR
Gate Drivers Dual 5A Hi-Spd Lo- S ide Pwr MOSFET Drvr A 595-UCC27524DGNR
auf Bestellung 2314 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 3.57 EUR |
| 10+ | 2.66 EUR |
| 25+ | 2.2 EUR |
| 80+ | 2.09 EUR |
| 240+ | 2.01 EUR |
| 560+ | 1.95 EUR |
| 2560+ | 1.85 EUR |
| UCC27524DGN |
|
Hersteller: Texas Instruments
Description: IC GATE DRVR LOW-SIDE 8MSOP
Packaging: Tube
Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 140°C (TJ)
Voltage - Supply: 4.5V ~ 18V
Input Type: Non-Inverting
Supplier Device Package: 8-HVSSOP
Rise / Fall Time (Typ): 7ns, 6ns
Channel Type: Independent
Driven Configuration: Low-Side
Number of Drivers: 2
Gate Type: IGBT, MOSFET (N-Channel)
Logic Voltage - VIL, VIH: 1V, 2.3V
Current - Peak Output (Source, Sink): 5A, 5A
Part Status: Active
DigiKey Programmable: Not Verified
Description: IC GATE DRVR LOW-SIDE 8MSOP
Packaging: Tube
Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 140°C (TJ)
Voltage - Supply: 4.5V ~ 18V
Input Type: Non-Inverting
Supplier Device Package: 8-HVSSOP
Rise / Fall Time (Typ): 7ns, 6ns
Channel Type: Independent
Driven Configuration: Low-Side
Number of Drivers: 2
Gate Type: IGBT, MOSFET (N-Channel)
Logic Voltage - VIL, VIH: 1V, 2.3V
Current - Peak Output (Source, Sink): 5A, 5A
Part Status: Active
DigiKey Programmable: Not Verified
auf Bestellung 803 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 5+ | 3.87 EUR |
| 10+ | 2.88 EUR |
| 80+ | 2.39 EUR |
| 160+ | 2.29 EUR |
| 320+ | 2.2 EUR |
| 560+ | 2.14 EUR |
