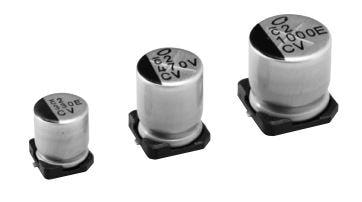

UCV1V681MNL1GS Nichicon
Hersteller: NichiconDescription: CAP ALUM 680UF 20% 35V SMD
Tolerance: ±20%
Packaging: Tape & Reel (TR)
Package / Case: Radial, Can - SMD
Size / Dimension: 0.394" Dia (10.00mm)
Polarization: Polar
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 105°C
Applications: General Purpose
Ratings: AEC-Q200
Lifetime @ Temp.: 2000 Hrs @ 105°C
Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
Height - Seated (Max): 0.413" (10.50mm)
Capacitance: 680 µF
Voltage - Rated: 35 V
Impedance: 60 mOhms
Ripple Current @ Low Frequency: 595 mA @ 120 Hz
Ripple Current @ High Frequency: 1.19 A @ 100 kHz
auf Bestellung 2000 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 500+ | 1.14 EUR |
| 1000+ | 1.06 EUR |
| 1500+ | 1.03 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details UCV1V681MNL1GS Nichicon
Description: CAP ALUM 680UF 20% 35V SMD, Tolerance: ±20%, Packaging: Tape & Reel (TR), Package / Case: Radial, Can - SMD, Size / Dimension: 0.394" Dia (10.00mm), Polarization: Polar, Mounting Type: Surface Mount, Operating Temperature: -55°C ~ 105°C, Applications: General Purpose, Ratings: AEC-Q200, Lifetime @ Temp.: 2000 Hrs @ 105°C, Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm), Height - Seated (Max): 0.413" (10.50mm), Capacitance: 680 µF, Voltage - Rated: 35 V, Impedance: 60 mOhms, Ripple Current @ Low Frequency: 595 mA @ 120 Hz, Ripple Current @ High Frequency: 1.19 A @ 100 kHz.
Weitere Produktangebote UCV1V681MNL1GS nach Preis ab 0.99 EUR bis 3.01 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
UCV1V681MNL1GS | Hersteller : Nichicon |
Cap Aluminum Lytic 680uF 35V 20% (10 X 10mm) SMD 1.19A 2000h 105°C T/R Automotive AEC-Q200 |
auf Bestellung 228 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||||||
|
|
UCV1V681MNL1GS | Hersteller : Nichicon |
Description: CAP ALUM 680UF 20% 35V SMD Tolerance: ±20% Packaging: Cut Tape (CT) Package / Case: Radial, Can - SMD Size / Dimension: 0.394" Dia (10.00mm) Polarization: Polar Mounting Type: Surface Mount Operating Temperature: -55°C ~ 105°C Applications: General Purpose Ratings: AEC-Q200 Lifetime @ Temp.: 2000 Hrs @ 105°C Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm) Height - Seated (Max): 0.413" (10.50mm) Capacitance: 680 µF Voltage - Rated: 35 V Impedance: 60 mOhms Ripple Current @ Low Frequency: 595 mA @ 120 Hz Ripple Current @ High Frequency: 1.19 A @ 100 kHz |
auf Bestellung 3263 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
 |
UCV1V681MNL1GS | Hersteller : Nichicon |
Aluminium Electrolytic Capacitors - SMD 680uF 35V 20% AEC-Q200 |
auf Bestellung 4 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||||||
| UCV1V681MNL1GS | Hersteller : Nichicon |
680 мкФ 35 В 10.0mm x 10.0mm 2000 Hrs @ 105C |
auf Bestellung 2 Stücke: Lieferzeit 14-21 Tag (e) |
||||||||||||||||||
 |
UCV1V681MNL1GS | Hersteller : Nichicon |
Cap Aluminum Lytic 680uF 35V 20% (10 X 10mm) SMD 1190mA 2000h 105C T/R |
Produkt ist nicht verfügbar |
|||||||||||||||||
|
|
UCV1V681MNL1GS | Hersteller : Nichicon |
Cap Aluminum Lytic 680uF 35V 20% (10 X 10mm) SMD 1.19A 2000h 105°C T/R Automotive AEC-Q200 |
Produkt ist nicht verfügbar |
|||||||||||||||||
|
|
UCV1V681MNL1GS | Hersteller : Nichicon |
Cap Aluminum Lytic 680uF 35V 20% (10 X 10mm) SMD 1.19A 2000h 105°C T/R Automotive AEC-Q200 |
Produkt ist nicht verfügbar |
|||||||||||||||||
 |
UCV1V681MNL1GS | Hersteller : NICHICON |
Category: SMD electrolytic capacitors Description: Capacitor: electrolytic; low ESR; SMD; 680uF; 35VDC; Ø10x10mm; ±20% Type of capacitor: electrolytic Kind of capacitor: low ESR Mounting: SMD Capacitance: 680µF Operating voltage: 35V DC Body dimensions: Ø10x10mm Tolerance: ±20% Service life: 2000h Operating temperature: -55...105°C Manufacturer series: UCV Operating current: 1.19A |
Produkt ist nicht verfügbar |
