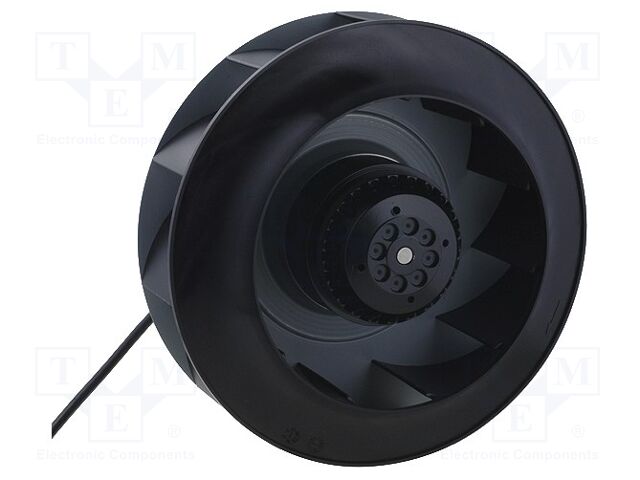

UF250APA23-H1C2A Mechatronics Fan Group

Description: IMPELLER 251X98MM 230VAC
Packaging: Bulk
Power (Watts): 240W
Features: Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)
Voltage - Rated: 230VAC
Size / Dimension: Round - 251mm Dia
Bearing Type: Ball
RPM: 2700 RPM
Air Flow: 850.0 CFM (23.80m³/min)
Width: 98.00mm
Weight: 6.8 lbs (3.1 kg)
Operating Temperature: -40 ~ 122°F (-40 ~ 50°C)
Termination: 4 Wire Leads
Approval Agency: CE, cUL, TUV, UL
Fan Type: Motorized Impellers
Noise: 76.0dB(A)
Static Pressure: 2.900 in H2O (722.4 Pa)
auf Bestellung 7 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl | Preis |
---|---|
1+ | 224.68 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details UF250APA23-H1C2A Mechatronics Fan Group
Category: AC230V Fans, Description: Fan: AC; radial; 230VAC; Ø250x99mm; 1309m3/h; 75dBA; ball; 2600rpm, Current rating: 0.77A, Operating temperature: -40...70°C, Leads: leads x4, Kind of fan: radial, Kind of Bearing: ball, Impeller material: thermoplastic, Fan dimensions: Ø250x99mm, Static pressure: 56mm H2O, Power consumption: 170W, Frequency: 50...60Hz, Noise level: 75dBA, Fan efficiency: 1309m3/h, Supply voltage: 230V AC, Rotational rate/speed: 2600rpm, Min. insulation resistance: 0.1GΩ, Type of fan: AC, Enclosure material: aluminium.
Weitere Produktangebote UF250APA23-H1C2A
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
---|---|---|---|---|---|
UF250APA23H1C2A Produktcode: 133276
zu Favoriten hinzufügen
Lieblingsprodukt
|
Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör |
Produkt ist nicht verfügbar
|
|||
![]() |
UF250APA23H1C2A | Hersteller : FULLTECH |
![]() Description: Fan: AC; radial; 230VAC; Ø250x99mm; 1309m3/h; 75dBA; ball; 2600rpm Current rating: 0.77A Operating temperature: -40...70°C Leads: leads x4 Kind of fan: radial Kind of Bearing: ball Impeller material: thermoplastic Fan dimensions: Ø250x99mm Static pressure: 56mm H2O Power consumption: 170W Frequency: 50...60Hz Noise level: 75dBA Fan efficiency: 1309m3/h Supply voltage: 230V AC Rotational rate/speed: 2600rpm Min. insulation resistance: 0.1GΩ Type of fan: AC Enclosure material: aluminium |
Produkt ist nicht verfügbar |
