UPM1H152MHD6 NICHICON
Hersteller: NICHICON
Category: THT electrolytic capacitors

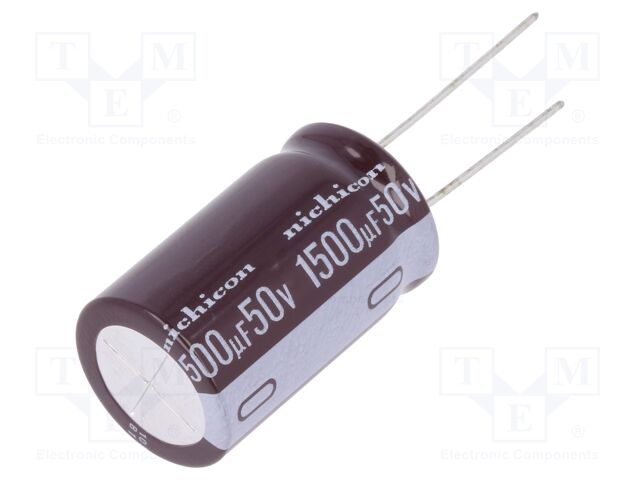

Description: Capacitor: electrolytic; low ESR; THT; 1500uF; 50VDC; Ø18x30.5mm
Type of capacitor: electrolytic
Kind of capacitor: low ESR
Mounting: THT
Capacitance: 1.5mF
Operating voltage: 50V DC
Body dimensions: Ø18x30.5mm
Terminal pitch: 7.5mm
Tolerance: ±20%
Impedance: 29mΩ
Operating temperature: -55...105°C
Height: 30.5mm
Diameter: 18mm
Manufacturer series: UPM
Service life: 5000h
Capacitor application: switching power supplies
Operating current: 2.1A
Capacitors features: high reliability; small sized body
Produktrezensionen
Produktbewertung abgeben
Technische Details UPM1H152MHD6 NICHICON
Category: THT electrolytic capacitors, Description: Capacitor: electrolytic; low ESR; THT; 1500uF; 50VDC; Ø18x30.5mm, Type of capacitor: electrolytic, Kind of capacitor: low ESR, Mounting: THT, Capacitance: 1.5mF, Operating voltage: 50V DC, Body dimensions: Ø18x30.5mm, Terminal pitch: 7.5mm, Tolerance: ±20%, Impedance: 29mΩ, Operating temperature: -55...105°C, Height: 30.5mm, Diameter: 18mm, Manufacturer series: UPM, Service life: 5000h, Capacitor application: switching power supplies, Operating current: 2.1A, Capacitors features: high reliability; small sized body.
Weitere Produktangebote UPM1H152MHD6 nach Preis ab 2.18 EUR bis 5.51 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
UPM1H152MHD6 | Nichicon |
Aluminium Electrolytic Capacitors - Radial Leaded 50volts 1500uF AEC-Q200 |
auf Bestellung 248 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||
 |
UPM1H152MHD6 | Nichicon |
Description: CAP ALUM 1500UF 20% 50V RADIAL Ripple Current @ High Frequency: 2.34 A @ 10 kHz Ripple Current @ Low Frequency: 2.1 A @ 120 Hz Impedance: 29 mOhms Voltage - Rated: 50 V Capacitance: 1500 µF Height - Seated (Max): 1.319" (33.50mm) Lifetime @ Temp.: 5000 Hrs @ 105°C Ratings: AEC-Q200 Lead Spacing: 0.295" (7.50mm) Applications: Automotive Operating Temperature: -55°C ~ 105°C Mounting Type: Through Hole Polarization: Polar Size / Dimension: 0.709" Dia (18.00mm) Package / Case: Radial, Can Tolerance: ±20% Packaging: Bulk |
auf Bestellung 386 Stücke: Lieferzeit 10-14 Tag (e) |
|
| UPM1H152MHD6 |
|
Hersteller: Nichicon
Aluminium Electrolytic Capacitors - Radial Leaded 50volts 1500uF AEC-Q200
Aluminium Electrolytic Capacitors - Radial Leaded 50volts 1500uF AEC-Q200
auf Bestellung 248 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 1+ | 5.18 EUR |
| 10+ | 3.56 EUR |
| 50+ | 2.87 EUR |
| 100+ | 2.34 EUR |
| 600+ | 2.18 EUR |
| UPM1H152MHD6 |
|
Hersteller: Nichicon
Description: CAP ALUM 1500UF 20% 50V RADIAL
Ripple Current @ High Frequency: 2.34 A @ 10 kHz
Ripple Current @ Low Frequency: 2.1 A @ 120 Hz
Impedance: 29 mOhms
Voltage - Rated: 50 V
Capacitance: 1500 µF
Height - Seated (Max): 1.319" (33.50mm)
Lifetime @ Temp.: 5000 Hrs @ 105°C
Ratings: AEC-Q200
Lead Spacing: 0.295" (7.50mm)
Applications: Automotive
Operating Temperature: -55°C ~ 105°C
Mounting Type: Through Hole
Polarization: Polar
Size / Dimension: 0.709" Dia (18.00mm)
Package / Case: Radial, Can
Tolerance: ±20%
Packaging: Bulk
Description: CAP ALUM 1500UF 20% 50V RADIAL
Ripple Current @ High Frequency: 2.34 A @ 10 kHz
Ripple Current @ Low Frequency: 2.1 A @ 120 Hz
Impedance: 29 mOhms
Voltage - Rated: 50 V
Capacitance: 1500 µF
Height - Seated (Max): 1.319" (33.50mm)
Lifetime @ Temp.: 5000 Hrs @ 105°C
Ratings: AEC-Q200
Lead Spacing: 0.295" (7.50mm)
Applications: Automotive
Operating Temperature: -55°C ~ 105°C
Mounting Type: Through Hole
Polarization: Polar
Size / Dimension: 0.709" Dia (18.00mm)
Package / Case: Radial, Can
Tolerance: ±20%
Packaging: Bulk
auf Bestellung 386 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 4+ | 5.51 EUR |
| 10+ | 3.68 EUR |
| 50+ | 2.92 EUR |
| 300+ | 2.37 EUR |
