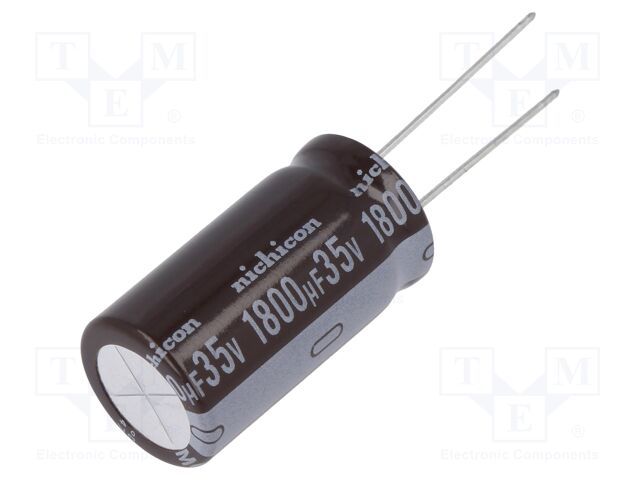

UPM1V182MHD NICHICON
Hersteller: NICHICON
Category: THT electrolytic capacitors
Description: Capacitor: electrolytic; low ESR; THT; 1800uF; 35VDC; Ø16x30.5mm
Type of capacitor: electrolytic
Kind of capacitor: low ESR
Capacitor application: switching power supplies
Mounting: THT
Capacitance: 1.8mF
Operating voltage: 35V DC
Body dimensions: Ø16x30.5mm
Terminal pitch: 7.5mm
Tolerance: ±20%
Service life: 5000h
Impedance: 22mΩ
Operating temperature: -55...105°C
Manufacturer series: UPM
Operating current: 2.25A
Capacitors features: high reliability; small sized body
Height: 30.5mm
Diameter: 16mm
Produktrezensionen
Produktbewertung abgeben
Technische Details UPM1V182MHD NICHICON
Category: THT electrolytic capacitors, Description: Capacitor: electrolytic; low ESR; THT; 1800uF; 35VDC; Ø16x30.5mm, Type of capacitor: electrolytic, Kind of capacitor: low ESR, Capacitor application: switching power supplies, Mounting: THT, Capacitance: 1.8mF, Operating voltage: 35V DC, Body dimensions: Ø16x30.5mm, Terminal pitch: 7.5mm, Tolerance: ±20%, Service life: 5000h, Impedance: 22mΩ, Operating temperature: -55...105°C, Manufacturer series: UPM, Operating current: 2.25A, Capacitors features: high reliability; small sized body, Height: 30.5mm, Diameter: 16mm.
Weitere Produktangebote UPM1V182MHD nach Preis ab 1.98 EUR bis 4.69 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
UPM1V182MHD | Nichicon |
Description: CAP ALUM 1800UF 20% 35V RADIAL Packaging: Bulk Tolerance: ±20% Package / Case: Radial, Can Size / Dimension: 0.630" Dia (16.00mm) Polarization: Polar Mounting Type: Through Hole Operating Temperature: -55°C ~ 105°C Applications: Automotive Lead Spacing: 0.295" (7.50mm) Ratings: AEC-Q200 Lifetime @ Temp.: 5000 Hrs @ 105°C Height - Seated (Max): 1.319" (33.50mm) Capacitance: 1800 µF Voltage - Rated: 35 V Impedance: 22 mOhms Ripple Current @ Low Frequency: 2.25 A @ 120 Hz Ripple Current @ High Frequency: 2.51 A @ 10 kHz |
auf Bestellung 300 Stücke: Lieferzeit 10-14 Tag (e) |
|
| UPM1V182MHD |
|
Hersteller: Nichicon
Description: CAP ALUM 1800UF 20% 35V RADIAL
Packaging: Bulk
Tolerance: ±20%
Package / Case: Radial, Can
Size / Dimension: 0.630" Dia (16.00mm)
Polarization: Polar
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 105°C
Applications: Automotive
Lead Spacing: 0.295" (7.50mm)
Ratings: AEC-Q200
Lifetime @ Temp.: 5000 Hrs @ 105°C
Height - Seated (Max): 1.319" (33.50mm)
Capacitance: 1800 µF
Voltage - Rated: 35 V
Impedance: 22 mOhms
Ripple Current @ Low Frequency: 2.25 A @ 120 Hz
Ripple Current @ High Frequency: 2.51 A @ 10 kHz
Description: CAP ALUM 1800UF 20% 35V RADIAL
Packaging: Bulk
Tolerance: ±20%
Package / Case: Radial, Can
Size / Dimension: 0.630" Dia (16.00mm)
Polarization: Polar
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 105°C
Applications: Automotive
Lead Spacing: 0.295" (7.50mm)
Ratings: AEC-Q200
Lifetime @ Temp.: 5000 Hrs @ 105°C
Height - Seated (Max): 1.319" (33.50mm)
Capacitance: 1800 µF
Voltage - Rated: 35 V
Impedance: 22 mOhms
Ripple Current @ Low Frequency: 2.25 A @ 120 Hz
Ripple Current @ High Frequency: 2.51 A @ 10 kHz
auf Bestellung 300 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 5+ | 4.69 EUR |
| 10+ | 3.11 EUR |
| 50+ | 2.45 EUR |
| 300+ | 1.98 EUR |
