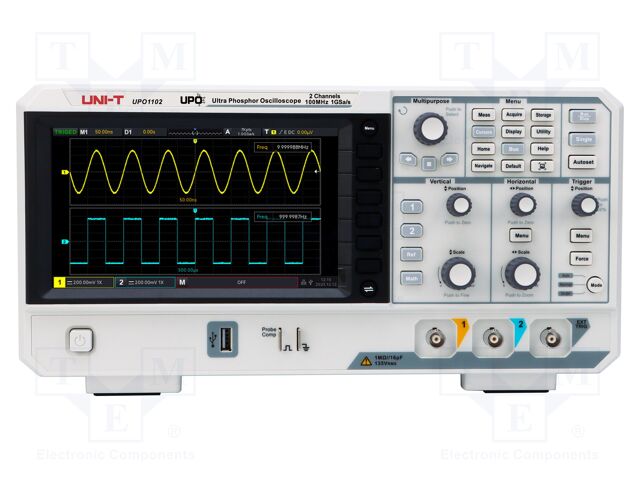

UPO1102 UNI-T

Category: Digital Oscilloscopes, Description: Oscilloscope: digital; Ch: 2; 100MHz; 1Gsps; 56Mpts; LCD TFT 7", Dimensions: 336x164x105mm, Supply voltage: 100...240V AC, Measuring instrument features: automatic measurement of many parameters; mathematical functions: addition, subtraction, division, multiplication and FFT; split screen function, Standard equipment: mains cable; test probes; USB cable, Input sensitivity: 500µV/div...20V/div, Memory record length: 56Mpts, Type of oscilloscope: digital, Vertical resolution: 8bit, Related items: UT-P20; UT-P21; UT-P30; UT-P31; UT-P32; UT-P33; UT-P40; UT-P41; UT-P42; UT-P43; UT-P04; UT-P05; UT-V23, Kind of display used: LCD TFT 7", Input coupling: AC, DC, GND, Rise time: ≤3.5ns, Trigger: falling-edge; impulse width; Nth Edge; pattern; rising-edge; runt; slope; timeout; video signal; window; with delay, Sampling: 1Gsps, Display resolution: 800x480, Input impedance: 1MΩ/16pF, Band: 100MHz, Time base: 1n...1ks/div, Interface: AUX; EXT Trig; LAN; USB device; USB Host, Number of channels: 2.
