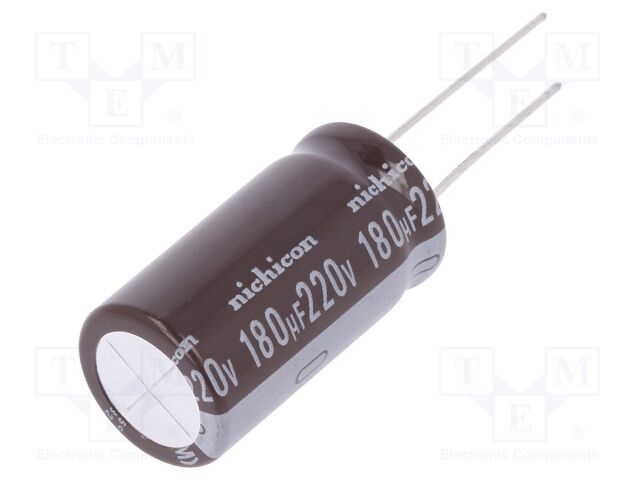

UPT2P181MHD NICHICON
Hersteller: NICHICON
Category: THT electrolytic capacitors
Description: Capacitor: electrolytic; low ESR; THT; 180uF; 220VDC; Ø16x31.5mm
Type of capacitor: electrolytic
Kind of capacitor: low ESR
Mounting: THT
Capacitance: 180µF
Operating voltage: 220V DC
Body dimensions: Ø16x31.5mm
Terminal pitch: 7.5mm
Tolerance: ±20%
Service life: 5000h
Operating temperature: -25...105°C
Manufacturer series: UPT
Operating current: 0.67A
Capacitors features: high ripple current; long life; small sized body
Height: 31.5mm
Diameter: 16mm
Produktrezensionen
Produktbewertung abgeben
Technische Details UPT2P181MHD NICHICON
Category: THT electrolytic capacitors, Description: Capacitor: electrolytic; low ESR; THT; 180uF; 220VDC; Ø16x31.5mm, Type of capacitor: electrolytic, Kind of capacitor: low ESR, Mounting: THT, Capacitance: 180µF, Operating voltage: 220V DC, Body dimensions: Ø16x31.5mm, Terminal pitch: 7.5mm, Tolerance: ±20%, Service life: 5000h, Operating temperature: -25...105°C, Manufacturer series: UPT, Operating current: 0.67A, Capacitors features: high ripple current; long life; small sized body, Height: 31.5mm, Diameter: 16mm.
Weitere Produktangebote UPT2P181MHD
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde |
|---|---|---|---|---|---|
 |
UPT2P181MHD | Nichicon |
Description: CAP ALUM 180UF 20% 220V RADIAL Tolerance: ±20% Packaging: Bulk Package / Case: Radial, Can Size / Dimension: 0.630" Dia (16.00mm) Polarization: Polar Mounting Type: Through Hole Operating Temperature: -25°C ~ 105°C Applications: General Purpose Lead Spacing: 0.295" (7.50mm) Lifetime @ Temp.: 5000 Hrs @ 105°C Height - Seated (Max): 1.299" (33.00mm) Capacitance: 180 µF Voltage - Rated: 220 V Ripple Current @ Low Frequency: 670 mA @ 120 Hz Ripple Current @ High Frequency: 1.072 A @ 10 kHz |
Produkt ist nicht verfügbar |
Mindestbestellmenge: 300 Stücke Im Einkaufswagen Stück im Wert von UAH |
 |
UPT2P181MHD | Nichicon |
Aluminium Electrolytic Capacitors - Leaded 220volts 180uF 16X31.5 20% |
Produkt ist nicht verfügbar |
Im Einkaufswagen Stück im Wert von UAH |
| UPT2P181MHD |
|
Hersteller: Nichicon
Description: CAP ALUM 180UF 20% 220V RADIAL
Tolerance: ±20%
Packaging: Bulk
Package / Case: Radial, Can
Size / Dimension: 0.630" Dia (16.00mm)
Polarization: Polar
Mounting Type: Through Hole
Operating Temperature: -25°C ~ 105°C
Applications: General Purpose
Lead Spacing: 0.295" (7.50mm)
Lifetime @ Temp.: 5000 Hrs @ 105°C
Height - Seated (Max): 1.299" (33.00mm)
Capacitance: 180 µF
Voltage - Rated: 220 V
Ripple Current @ Low Frequency: 670 mA @ 120 Hz
Ripple Current @ High Frequency: 1.072 A @ 10 kHz
Description: CAP ALUM 180UF 20% 220V RADIAL
Tolerance: ±20%
Packaging: Bulk
Package / Case: Radial, Can
Size / Dimension: 0.630" Dia (16.00mm)
Polarization: Polar
Mounting Type: Through Hole
Operating Temperature: -25°C ~ 105°C
Applications: General Purpose
Lead Spacing: 0.295" (7.50mm)
Lifetime @ Temp.: 5000 Hrs @ 105°C
Height - Seated (Max): 1.299" (33.00mm)
Capacitance: 180 µF
Voltage - Rated: 220 V
Ripple Current @ Low Frequency: 670 mA @ 120 Hz
Ripple Current @ High Frequency: 1.072 A @ 10 kHz
Produkt ist nicht verfügbar
Mindestbestellmenge: 300 Stücke
Im Einkaufswagen
Stück im Wert von UAH
| UPT2P181MHD |
|
Hersteller: Nichicon
Aluminium Electrolytic Capacitors - Leaded 220volts 180uF 16X31.5 20%
Aluminium Electrolytic Capacitors - Leaded 220volts 180uF 16X31.5 20%
Produkt ist nicht verfügbar
Im Einkaufswagen
Stück im Wert von UAH
