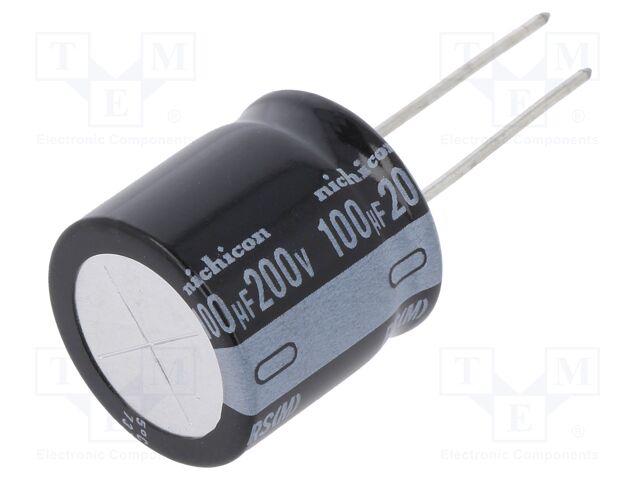

URS2D101MRD6 NICHICON
Hersteller: NICHICON
Category: THT electrolytic capacitors
Description: Capacitor: electrolytic; THT; 100uF; 200VDC; Ø20x20mm; Pitch: 10mm
Type of capacitor: electrolytic
Mounting: THT
Capacitance: 100µF
Operating voltage: 200V DC
Body dimensions: Ø20x20mm
Terminal pitch: 10mm
Tolerance: ±20%
Operating temperature: -40...85°C
Manufacturer series: URS
Height: 20mm
Diameter: 20mm
Max. forward impulse current: 590mA
| Anzahl | Privatkunde |
|---|---|
| 25+ | 3.47 EUR |
| 41+ | 2.07 EUR |
| 51+ | 1.69 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details URS2D101MRD6 NICHICON
Description: CAP ALUM 100UF 20% 200V RADIAL, Tolerance: ±20%, Packaging: Bulk, Package / Case: Radial, Can, Size / Dimension: 0.787" Dia (20.00mm), Polarization: Polar, Mounting Type: Through Hole, Operating Temperature: -40°C ~ 85°C, Applications: General Purpose, Lead Spacing: 0.394" (10.00mm), Lifetime @ Temp.: 2000 Hrs @ 85°C, Height - Seated (Max): 0.866" (22.00mm), Capacitance: 100 µF, Voltage - Rated: 200 V, Ripple Current @ Low Frequency: 590 mA @ 120 Hz, Ripple Current @ High Frequency: 944 mA @ 10 kHz.
Weitere Produktangebote URS2D101MRD6 nach Preis ab 3.87 EUR bis 5.46 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung | Verfügbarkeit | Privatkunde | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
URS2D101MRD6 | Nichicon |
Description: CAP ALUM 100UF 20% 200V RADIAL Tolerance: ±20% Packaging: Bulk Package / Case: Radial, Can Size / Dimension: 0.787" Dia (20.00mm) Polarization: Polar Mounting Type: Through Hole Operating Temperature: -40°C ~ 85°C Applications: General Purpose Lead Spacing: 0.394" (10.00mm) Lifetime @ Temp.: 2000 Hrs @ 85°C Height - Seated (Max): 0.866" (22.00mm) Capacitance: 100 µF Voltage - Rated: 200 V Ripple Current @ Low Frequency: 590 mA @ 120 Hz Ripple Current @ High Frequency: 944 mA @ 10 kHz |
auf Bestellung 247 Stücke: Lieferzeit 10-14 Tag (e) |
|
| URS2D101MRD6 |
|
Hersteller: Nichicon
Description: CAP ALUM 100UF 20% 200V RADIAL
Tolerance: ±20%
Packaging: Bulk
Package / Case: Radial, Can
Size / Dimension: 0.787" Dia (20.00mm)
Polarization: Polar
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 85°C
Applications: General Purpose
Lead Spacing: 0.394" (10.00mm)
Lifetime @ Temp.: 2000 Hrs @ 85°C
Height - Seated (Max): 0.866" (22.00mm)
Capacitance: 100 µF
Voltage - Rated: 200 V
Ripple Current @ Low Frequency: 590 mA @ 120 Hz
Ripple Current @ High Frequency: 944 mA @ 10 kHz
Description: CAP ALUM 100UF 20% 200V RADIAL
Tolerance: ±20%
Packaging: Bulk
Package / Case: Radial, Can
Size / Dimension: 0.787" Dia (20.00mm)
Polarization: Polar
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 85°C
Applications: General Purpose
Lead Spacing: 0.394" (10.00mm)
Lifetime @ Temp.: 2000 Hrs @ 85°C
Height - Seated (Max): 0.866" (22.00mm)
Capacitance: 100 µF
Voltage - Rated: 200 V
Ripple Current @ Low Frequency: 590 mA @ 120 Hz
Ripple Current @ High Frequency: 944 mA @ 10 kHz
auf Bestellung 247 Stücke:
Lieferzeit 10-14 Tag (e)
| Anzahl | Privatkunde |
|---|---|
| 4+ | 5.46 EUR |
| 10+ | 4.2 EUR |
| 50+ | 3.87 EUR |
