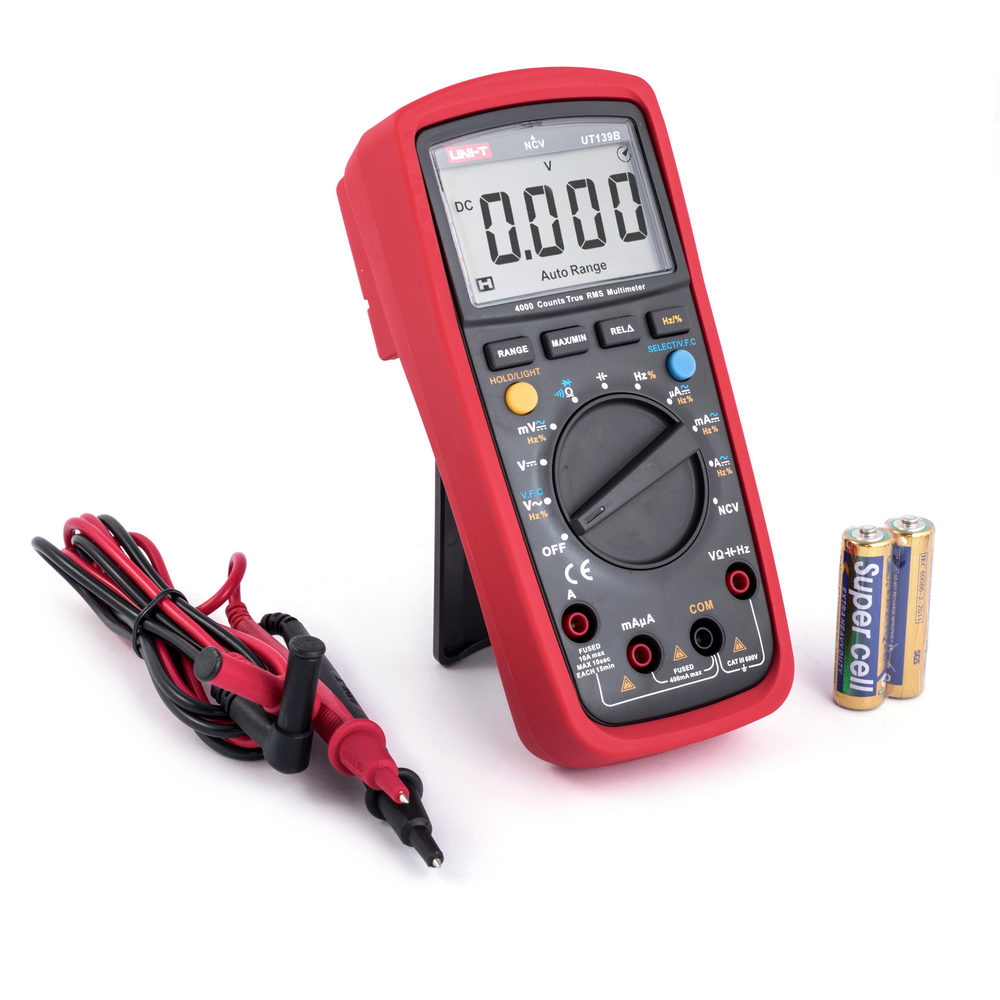

UT139B (UNI-T) True RMS Digital Multimeter Uni-Trend (Uni-T)
Gruppe: Мультиметри
Beschreibung: Цифровий мультиметр з NCV. виміри: напруга, струм, опір, тест діодів, прозвонка з'єднань, частота, duty cycle. Функція утримання даних, автовимкнення. Живлення: 2xAA. Габарити: 175х80х48 mm.
10MHz
Вимірювання напруги та струму: 400 mV...600V / 400 µA...10 A
Вимірювання опору: 400 Ohm...40 MOhm
Вимірювання ємності: 9 nF...100 µF
5 Stück - stock Köln
17 Stück - lieferbar in 3-4 Wochen
Technische Details UT139B (UNI-T) True RMS Digital Multimeter Uni-Trend (Uni-T)
Uni-T UT
139B Digitales Multimeter True RMS NCV 4000 Counts Autobereichswahl VFC
Die neue UT 139 Serie von Uni-Trend besticht durch hohe
Zuverlässigkeit, ein modernes Design, Benutzerfreundlichkeit und umfangreiche
Funktionalität. Die komplette Serie ist mit einer Echteffektivwert-Messfunktion
(TRMS), sowie einer NCV-Funktion (Non contact voltage detection) zur
berührungslosen Spannungsdetektion ausgestattet.
Funktionen und
Eigenschaften:
True RMS-Messung
V.F.C. – AC Messung für wechselnde Frequenzen
Kapazitätsmessung bis zu 100mF
Berührungslose Spannungsprüfung mit Signal und
LED-Anzeige
Gummiertes Holster für raue Arbeitsbedingungen und Stürze
aus bis zu 2m
Überspannungsschutz
Messkategorie: CAT III 600V
Automatische Bereichswahl
Automatische Abschaltung
Technische
Daten:
LCD-Anzeige: 58 mm x 36 mm 4000 Counts
Hintergrundbeleuchtung
Spannungsmessung DC: 0 - 600V DC / ±0,5% +2
Spannungsmessung AC: 0 - 600V AC / ±0,8% +3
Strommessung DC: 0 - 10A DC / ±0,8% +2
Strommessung AC: 0 - 10A AC / ±1,0% +3
Widerstandsmessung: 0 - 60 MOhm / ±0,8% +2
Kapazitätsmessung: 0 - 99,99mF / ±4,0% +5
Frequenzmessung: 10Hz - 10MHz / ±0,1% +4
Füllfaktor: 0, 1%-99, 9%
Spannungsversorgung: 2x AA Mignon Batterien
Abmessungen: 180 x 87 x 47mm
Gewicht: 370g
Lieferumfang:
Messgerät, Batterien, Messleitungen, Anleitung auf Englisch
Produktcode 130606
Weitere Produktangebote UT139B (UNI-T) True RMS Digital Multimeter nach Preis ab 53.28 EUR bis 55.41 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
+1 |
UT139B | Hersteller : UNI-T |
Category: Portable digital multimeters Description: Digital multimeter; LCD; (4000); VDC accuracy: ±(0.5%+2digit) Type of meter: digital multimeter Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; duty cycle; frequency; resistance Kind of display used: LCD Display parameters: (4000) DC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 600V DC voltage measuring accuracy: ±(0.5% + 2 digit) AC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 600V AC voltage measuring accuracy: ±(0.8% + 3 digit) DC current measuring range: 0.4mA; 4mA; 40mA; 400mA; 4A; 10A DC current measuring accuracy: ±(0.7% + 2 digit) AC current measuring range: 0.4mA; 4mA; 40mA; 400mA; 4A; 10A AC current measuring accuracy: ±(1% + 3 digit) True effective value measurement: True RMS Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ Capacitance measuring range: 10nF; 100nF; 1mF; 10mF Capacitance measuring accuracy: ±(4%+ 5 digit) Frequency measuring range: 10...10MHz Frequency measuring accuracy: ±(0.1%+4 digit) Resistance measuring accuracy: ±(0.8%+2 digit) Duty cycle factor: 0.1...99.9% Test: diodes Continuity test: acoustic indication; <10Ω Power supply: battery R6 AA 1,5V x2 Standard equipment: holster; test leads Conform to the norm: CAT III 600V; EN 61010 Dimensions (W x H x D): 80x170x48mm Measuring instrument features: auto and manual ranging; automatic power-off; contactless voltage detector; HOLD function; low battery indicator; MIN/MAX/REL function Battery/ rechargeable battery: battery R6 AA 1,5V x2 Illumination: yes Anzahl je Verpackung: 1 Stücke |
auf Bestellung 3 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||
+1 |
UT139B | Hersteller : UNI-T |
Category: Portable digital multimeters Description: Digital multimeter; LCD; (4000); VDC accuracy: ±(0.5%+2digit) Type of meter: digital multimeter Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; duty cycle; frequency; resistance Kind of display used: LCD Display parameters: (4000) DC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 600V DC voltage measuring accuracy: ±(0.5% + 2 digit) AC voltage measuring range: 40mV; 400mV; 4V; 40V; 400V; 600V AC voltage measuring accuracy: ±(0.8% + 3 digit) DC current measuring range: 0.4mA; 4mA; 40mA; 400mA; 4A; 10A DC current measuring accuracy: ±(0.7% + 2 digit) AC current measuring range: 0.4mA; 4mA; 40mA; 400mA; 4A; 10A AC current measuring accuracy: ±(1% + 3 digit) True effective value measurement: True RMS Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ Capacitance measuring range: 10nF; 100nF; 1mF; 10mF Capacitance measuring accuracy: ±(4%+ 5 digit) Frequency measuring range: 10...10MHz Frequency measuring accuracy: ±(0.1%+4 digit) Resistance measuring accuracy: ±(0.8%+2 digit) Duty cycle factor: 0.1...99.9% Test: diodes Continuity test: acoustic indication; <10Ω Power supply: battery R6 AA 1,5V x2 Standard equipment: holster; test leads Conform to the norm: CAT III 600V; EN 61010 Dimensions (W x H x D): 80x170x48mm Measuring instrument features: auto and manual ranging; automatic power-off; contactless voltage detector; HOLD function; low battery indicator; MIN/MAX/REL function Battery/ rechargeable battery: battery R6 AA 1,5V x2 Illumination: yes |
auf Bestellung 3 Stücke: Lieferzeit 14-21 Tag (e) |
|
Mit diesem Produkt kaufen
Лезвие для скальпеля NB-SCALPEL01-P (упаковка 10шт) Produktcode: 118009 |
Werkzeuge > Messer, Skalpelle, Klingen
Тип: Леза
Опис: Леза для скальпеля 10шт, матеріал: сталь

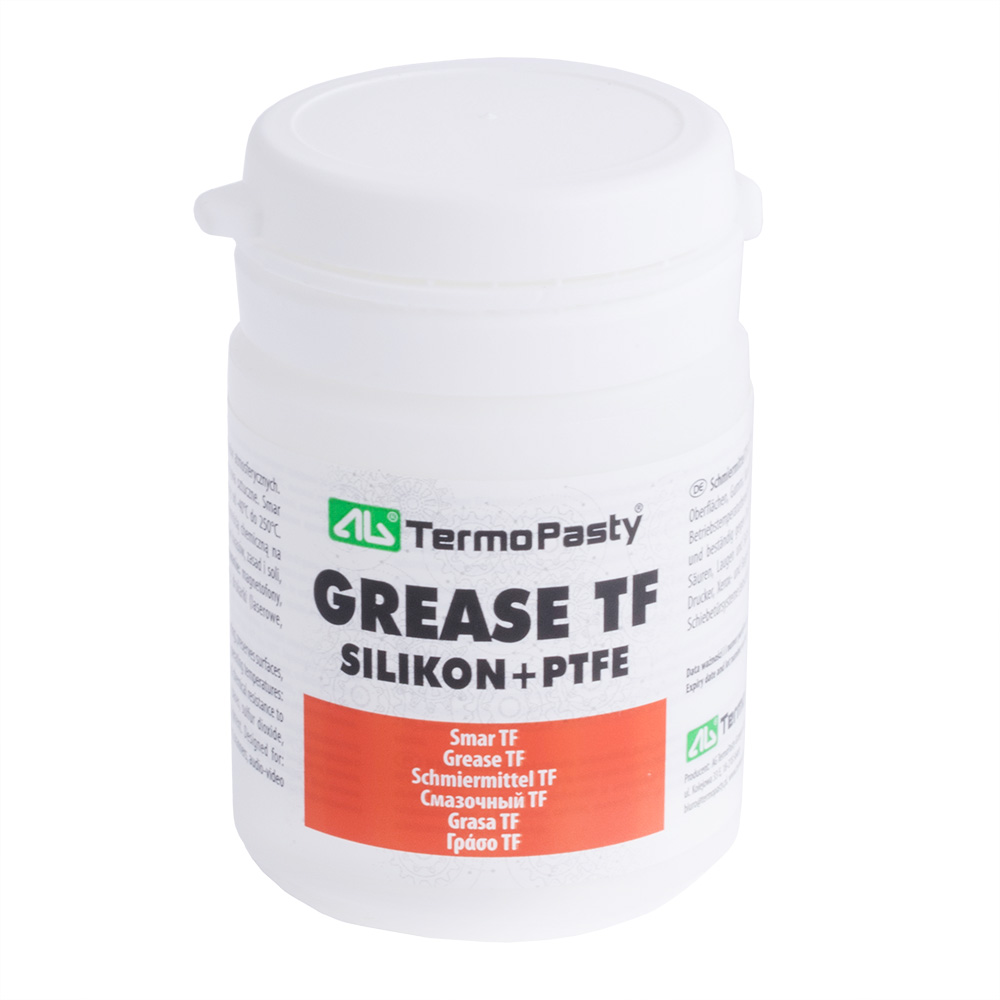

Teflonfett Universal Silicon+Teflonfett -40°C bis zu 260°C 60g Produktcode: 29353 |
