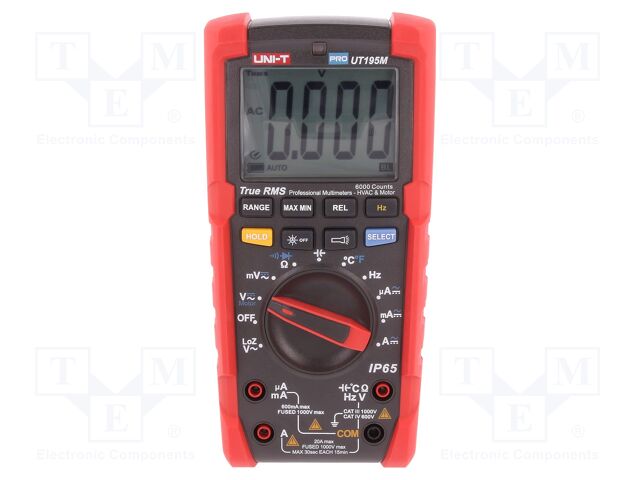

UT195M

Hersteller: UNI-T
Category: Portable digital multimeters
Description: Digital multimeter; LCD; (6000); VDC: 600mV,6V,60V,600V,1kV; IP65
Type of meter: digital multimeter
Measurement: AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Kind of display used: LCD
Display parameters: (6000)
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
AC voltage measuring range: 600mV; 6V; 60V; 600V; 750V
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 20A
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 20A
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring range: 6nF; 60nF; 600µF; 6mF; 60mF
Frequency measuring range: 600...40MHz
Continuity test: acoustic indication
Power supply: battery 6F22 9V x1
Standard equipment: case; drop-like K-type probe; test leads
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Dimensions (W x H x D): 95x195x58mm
Measuring instrument features: auto and manual ranging; automatic power-off; built-in torch; determines motor's direction of rotation; HOLD function; low battery indicator; low input impedance function (LoZ); MIN/MAX function
Battery/ rechargeable battery: battery 6F22 9V x1
DC current measuring accuracy: ±(0.8% + 3 digit)
Operating temperature: 0...40°C
Temperature measuring range: -40...1000°C
True effective value measurement: True RMS
AC current measuring accuracy: ±(1% + 3 digit)
Weight with battery: 473g
Frequency measuring accuracy: ±(0.1%+4 digit)
Illumination: yes
Resistance measuring accuracy: ±(0.8%+2 digit)
AC voltage measuring accuracy: ±(0.7% + 3 digit)
IP rating: IP65
Resistance to: fall from 2m height
Test: diodes
Capacitance measuring accuracy: ±(3%+ 5 digit)
DC voltage measuring accuracy: ±(0.5% + 3 digit)
