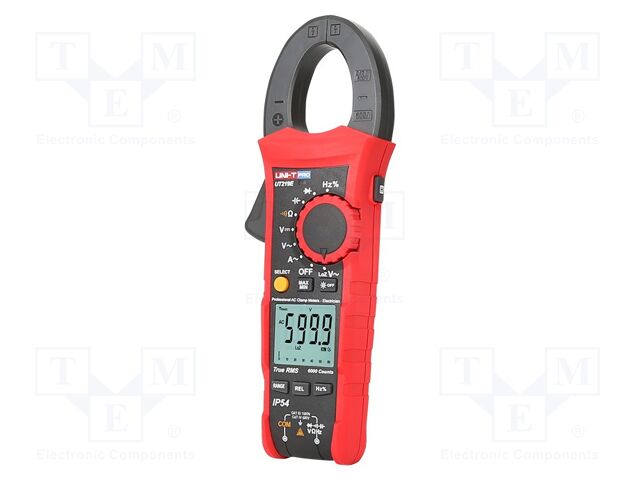

UT219M

Hersteller: UNI-T
Category: Meters and AC Clamp Probes
Description: Meter: multifunction; digital,AC pincers type; LCD; (6000); IP54
Type of meter: multifunction
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; duty cycle; frequency; inrush current; resistance; temperature
Kind of display used: LCD
Display parameters: (6000)
DC voltage measuring range: 1mV...6V; 60V; 600V
DC voltage measuring accuracy: ±(0.6% + 3 digit)
AC voltage measuring range: 1mV...6V; 60V; 600V
AC voltage measuring accuracy: ±(1% + 6 digit)
AC current measuring range: 60A; 600A
AC current measuring accuracy: ±(1.8% + 6 digit)
True effective value measurement: True RMS
Resistance measuring range: 100mΩ...600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring range: 60nF; 0.6µF; 6µF; 60µF; 600µF; 6mF; 60mF
Frequency measuring range: 60...40MHz
Resistance measuring accuracy: ±(1%+3 digit)
Diode test: 3V
Continuity test: acoustic indication
IP rating: IP54
Power supply: battery LR03 AAA 1,5V x3
Standard equipment: case; temperature probe; test leads
Conform to the norm: CAT IV 600V; EN 61010
Measuring instrument features: auto and manual ranging; automatic power-off; built-in torch; display zeroing function; HOLD function; low battery indicator; low input impedance function (LoZ); MIN/MAX/REL function
Battery/ rechargeable battery: battery LR03 AAA 1,5V x3
Illumination: yes
Software: included
Resistance to: fall from 2m height
Test: diodes
Kind of meter: AC pincers type; digital
Temperature measuring range: -40...1000°C
Duty cycle factor: 0.1...99.9%
Max. diameter of measured cable: 33mm
Dimensions: 234.6x82x47mm
