UT8805E UNI-T


Category: Benchtop digital multimeters
Description: Benchtop multimeter; LCD 4,3"; 5,5 digit (200000); Illumin: yes
Type of meter: benchtop multimeter
Kind of display used: LCD 4,3"
Display parameters: 5,5 digit (200000)
True effective value measurement: True RMS
DC voltage measuring range: 200mV; 2V; 20V; 200V; 1kV
AC voltage measuring range: 200mV; 2V; 20V; 200V; 750V
DC current measuring range: 0.2mA; 2mA; 20mA; 200mA; 2A; 10A
AC current measuring range: 2mA; 20mA; 200mA; 2A; 10A
Resistance measuring range: 200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 10MΩ; 100MΩ
Capacitance measuring range: 2nF; 20nF; 200nF; 2µF; 20µF; 200µF; 2mF
Frequency measuring range: 20Hz...1MHz
Diode test: 0...4V
Measurement: AC current; AC voltage; conductance; continuity; DC current; DC voltage; frequency; resistance; temperature

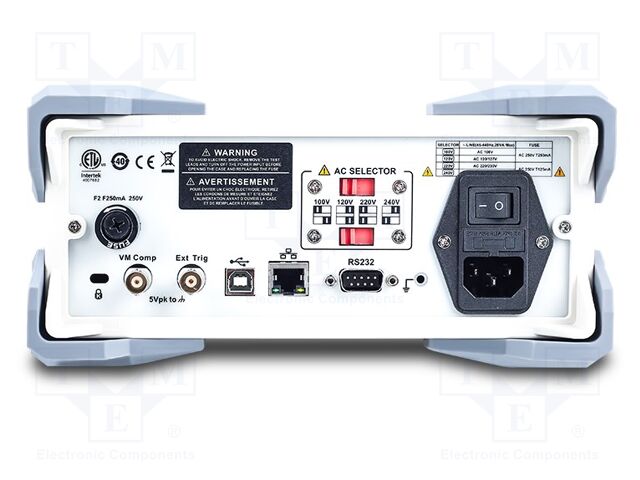

Interface: GPIB; LAN; RS232; USB
Supply voltage: 100...240V AC
Measuring instrument features: auto and manual ranging; data logger function; mathematical functions: addition, subtraction; MIN/MAX function; REL function
Standard equipment: fuse; mains cable; test leads; USB cable
Illumination: yes
Dimensions: 260x116x332mm
Test: diodes
auf Bestellung 7 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis |
---|---|
1+ | 585.58 EUR |
3+ | 582.80 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details UT8805E UNI-T
Category: Benchtop digital multimeters, Description: Benchtop multimeter; LCD 4,3"; 5,5 digit (200000); Illumin: yes, Type of meter: benchtop multimeter, Kind of display used: LCD 4,3", Display parameters: 5,5 digit (200000), True effective value measurement: True RMS, DC voltage measuring range: 200mV; 2V; 20V; 200V; 1kV, AC voltage measuring range: 200mV; 2V; 20V; 200V; 750V, DC current measuring range: 0.2mA; 2mA; 20mA; 200mA; 2A; 10A, AC current measuring range: 2mA; 20mA; 200mA; 2A; 10A, Resistance measuring range: 200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 10MΩ; 100MΩ, Capacitance measuring range: 2nF; 20nF; 200nF; 2µF; 20µF; 200µF; 2mF, Frequency measuring range: 20Hz...1MHz, Diode test: 0...4V, Measurement: AC current; AC voltage; conductance; continuity; DC current; DC voltage; frequency; resistance; temperature, Interface: GPIB; LAN; RS232; USB, Supply voltage: 100...240V AC, Measuring instrument features: auto and manual ranging; data logger function; mathematical functions: addition, subtraction; MIN/MAX function; REL function, Standard equipment: fuse; mains cable; test leads; USB cable, Illumination: yes, Dimensions: 260x116x332mm, Test: diodes.
Weitere Produktangebote UT8805E nach Preis ab 860.64 EUR bis 860.64 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||
---|---|---|---|---|---|---|---|---|---|
![]() |
UT8805E | Hersteller : Uni-Trend Technology US Inc |
![]() Packaging: Tape & Box (TB) Features: Record Display Type: TFT LCD Style: Bench Function: Voltage, Current, Resistance, Capacitance, Temperature, Frequency Type: Digital (DMM) Ranging: Auto Display Count: 199999 Functions, Extra: Continuity, Diode Test Response: True RMS Part Status: Active Display Digits: 5.5 |
auf Bestellung 8 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||
UT8805E Produktcode: 187776
